Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

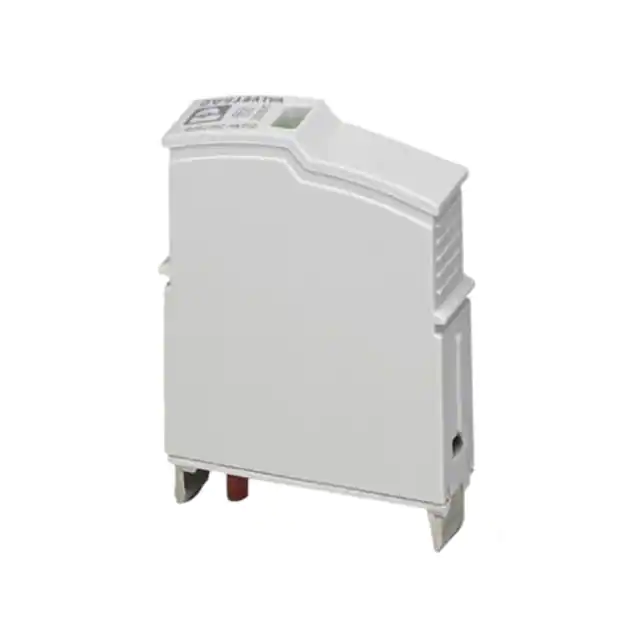

2907879SPD TYPE 2 250VDC MCOV 1 POLE |
4,686 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Module Only | 1 | 250VDC | 20 kA | 40 kA | 50 kA | - | 1.5 kV | -40°C ~ 80°C | - | Base Mount | cUL, EAC, UL |
|
2736210000SPD TYPE 2 75VAC MCOV 1 POLE |
6,694 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 1 | 75VAC | 20 kA | 50 kA | 200 kA | 330 V | - | -40°C ~ 85°C | - | DIN Rail | CE, cULus, VDE |
|

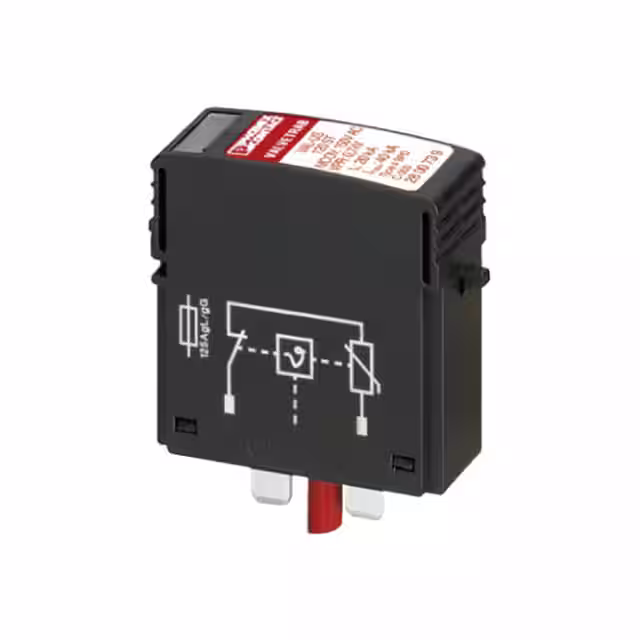

2800739SPD TYPE 2 175VAC MCOV 1 POLE |
2,673 |
|
Datasheet |
- | Bulk | Obsolete | Type 2 | Module Only | 1 | 175VAC | 20 kA | 40 kA | 25 kA | - | 900 V | -40°C ~ 80°C | - | Base Mount | CSA, cUL, cULus, EAC, UL |
|
|
2730700000SPD TYPE 1 480V MCOV 1 POLE |
7,284 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 480V | 20 kA | 50 kA | 200 kA | 1.5 kV | - | -40°C ~ 85°C | - | DIN Rail | cULus |
|
|
SDSA1175FESPD TYPE 1 150V MCOV 1 POLE |
2,401 |
|
Datasheet |
- | Box | Active | Type 1 | Module Only | 1 | 150V | 10 kA | - | 25 kA | - | - | - | - | Free Hanging | - |
|
|
1260-1SMG-690SPD 750VAC MCOV 1 POLE |
4,153 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 750VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-1SMG-480SPD 600VAC MCOV 1 POLE |
3,562 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 600VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
BSPM1275TNRSPD TYPE 2 275VAC MCOV 1 POLE |
3,350 |
|
Datasheet |
BSPM | Bulk | Obsolete | Type 2 | Base + Module | 1 | 275VAC | 20 kA | 40 kA | 50 kA | - | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, KEMA |
|
DLA-06D3SPD 8VDC MCOV 1 POLE |
4,067 |
|
- |
- | Active | - | Base + Module | 1 | 8VDC | 5 kA | 20 kA | - | - | 20 V | -40°C ~ 85°C | - | DIN Rail | EAC, UL | |
|
DLC-06D3SPD 8VDC MCOV 1 POLE |
8,284 |
|
- |
- | Active | - | Base + Module | 1 | 8VDC | 5 kA | 10 kA | - | - | 25 V | -40°C ~ 85°C | - | DIN Rail | UL | |
|
DLC-170SPD 170VDC MCOV 1 POLE |
3,220 |
|
- |
- | Active | - | Base + Module | 1 | 170VDC | 5 kA | 10 kA | - | - | 220 V | -40°C ~ 85°C | - | DIN Rail | UL | |
|
DLAW-24D3SPD 28VDC MCOV 1 POLE |
5,250 |
|
- |
- | Active | - | Base + Module | 1 | 28VDC | 5 kA | 20 kA | - | - | 40 V | -40°C ~ 85°C | - | DIN Rail | UL | |
|
DLC-24D3SPD 28VDC MCOV 1 POLE |
6,587 |
|
- |
- | Active | - | Base + Module | 1 | 28VDC | 5 kA | 10 kA | - | - | 40 V | -40°C ~ 85°C | - | DIN Rail | UL | |
|
DLC-12D3SPD TYPE 2 72VDC MCOV 1 POLE |
7,189 |
|
- |
- | Active | Type 2 | Base + Module | 1 | 72VDC | 5 kA | - | - | - | - | -50°C ~ 85°C | - | DIN Rail | UL | |
|
DLA-48D3SPD 53VDC MCOV 1 POLE |
6,184 |
|
- |
- | Active | - | Base + Module | 1 | 53VDC | 5 kA | 20 kA | - | - | 70 V | -40°C ~ 85°C | - | DIN Rail | UL | |
|
DLAW-48D3SPD 53VDC MCOV 1 POLE |
7,354 |
|
- |
- | Active | - | Base + Module | 1 | 53VDC | 5 kA | 20 kA | - | - | 70 V | -40°C ~ 85°C | - | DIN Rail | UL | |
|
DLC-48D3SPD 53VDC MCOV 1 POLE |
8,216 |
|
- |
- | Active | - | Base + Module | 1 | 53VDC | 5 kA | 10 kA | - | - | 70 V | -40°C ~ 85°C | - | DIN Rail | UL | |
|
DLA-170SPD 170VDC MCOV 1 POLE |
9,019 |
|
- |
- | Active | - | Base + Module | 1 | 170VDC | 5 kA | 20 kA | - | - | 220 V | -40°C ~ 85°C | - | DIN Rail | EAC, UL | |
|
DLAW-12D3SPD 15VDC MCOV 1 POLE |
2,448 |
|
- |
- | Active | - | Base + Module | 1 | 15VDC | 5 kA | 20 kA | - | - | 30 V | -40°C ~ 85°C | - | DIN Rail | UL | |
|
DLAW-06D3SPD 8VDC MCOV 1 POLE |
7,184 |
|
- |
- | Active | - | Base + Module | 1 | 8VDC | 5 kA | 20 kA | - | - | 20 V | -40°C ~ 85°C | - | DIN Rail | UL |
