Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1250A-2S-277SPD TYP 2/TYP 4 320V MCOV 2 POLE |
5,716 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 2 | 320V | 20 kA | 50 kA | 200 kA | 1.2 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1250A-2S-400SPD TYP 2/TYP 4 420V MCOV 2 POLE |
9,321 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 2 | 420V | 20 kA | 50 kA | 200 kA | 1.8 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2NS-127SPD 180VAC MCOV 2 POLE |
3,455 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 180VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2NS-230SPD 275VAC MCOV 2 POLE |
3,314 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2NS-120SPD 150VAC MCOV 2 POLE |
4,204 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2NS-277SPD 350VAC MCOV 2 POLE |
9,078 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 350VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
2838733SPD 130VAC/185VDC MCOV 1 POLE |
6,780 |
|
Datasheet |
- | Bulk | Active | - | Base + Module | 1 | 130VAC, 185VDC | 10 kA | 18 kA | - | - | 330 V | -40°C ~ 85°C | - | Base Mount | EAC |
|

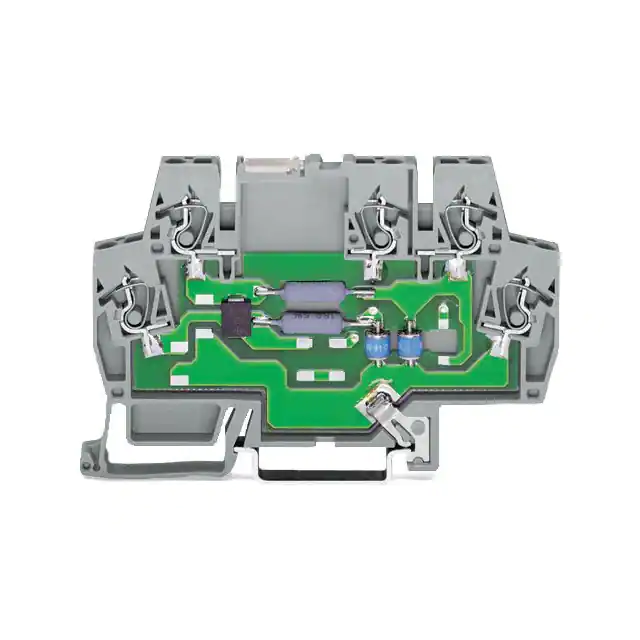

792-804SPD 38.5VAC/55VDC MCOV 1 POLE |
4,664 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 38.5VAC, 55VDC | 5 kA | 10 kA | - | - | 100 V | -40°C ~ 80°C | - | DIN Rail | EAC |
|
792-803SPD 23VAC/33VDC MCOV 1 POLE |
8,983 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 23VAC, 33VDC | 5 kA | 10 kA | - | - | 50 V | -40°C ~ 80°C | - | DIN Rail | ATEX |
|
|
1270-3S-277SPD TYPE 1/TYPE 2 350VAC MCOV |
4,922 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 3 | 350VAC | 25 kA | 80 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-3S-120SPD TYPE 1/TYPE 2 150VAC MCOV |
3,662 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 3 | 150VAC | 25 kA | 80 kA | 50 kA | - | 800 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-3S-127SPD TYPE 1/TYPE 2 180VAC MCOV |
9,544 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 3 | 180VAC | 25 kA | 80 kA | 50 kA | - | 1 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
I2R-T2DC-500T-LCSPD TYPE 2 560VDC MCOV 2 POLE |
2,736 |
|
- |
I2R | Bag | Active | Type 2 | Base + Module | 2 | 560VDC | 20 kA | - | 100 kA | 1.5 kV | - | -20°C ~ 50°C | - | DIN Rail | - |
|
|
I2R-T2DC-600T-LCSPD TYPE 2 670VDC MCOV 2 POLE |
7,048 |
|
- |
I2R | Bag | Active | Type 2 | Base + Module | 2 | 670VDC | 20 kA | - | 50 kA | 1.8 kV | - | -20°C ~ 50°C | - | DIN Rail | - |
|
|
BSPM1120S2GRSPD TYPE 2 275VAC MCOV 1 POLE |
9,030 |
|
- |
BSPM | Bulk | Obsolete | Type 2 | Base + Module | 1 | 275VAC | 20 kA | 40 kA | 200 kA | 1 kV | - | - | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, UL |
|
|
1260-2S-230SPD 275VAC MCOV 2 POLE |
6,009 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2S-127SPD 180VAC MCOV 2 POLE |
8,957 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 180VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2S-277SPD 350VAC MCOV 2 POLE |
8,756 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 350VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2S-400SPD 440VAC MCOV 2 POLE |
6,909 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 440VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2S-120SPD 150VAC MCOV 2 POLE |
6,277 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
