Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

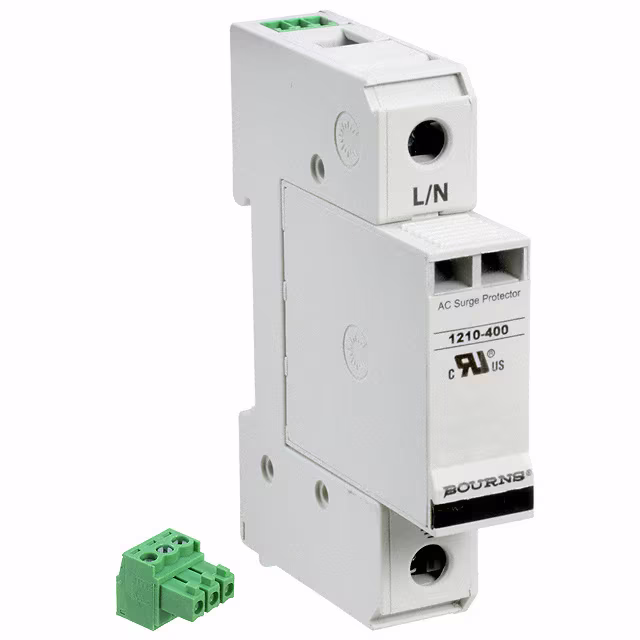

1210-1S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
5,700 |
|
Datasheet |
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 1 | 420VAC | 20 kA | 100 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|
1260-1S-277SPD 350VAC MCOV 1 POLE |
8,493 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 350VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-1S-120SPD 150VAC MCOV 1 POLE |
7,365 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-1S-400SPD 440VAC MCOV 1 POLE |
9,346 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 440VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-1S-127SPD 180VAC MCOV 1 POLE |
6,637 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 180VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-1S-230SPD 275VAC MCOV 1 POLE |
3,147 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
M9LC320SPD TYPE 1 550VAC MCOV 1 POLE |
9,824 |
|
Datasheet |
- | Box | Active | Type 1 | Module Only | 1 | 550VAC | 20 kA | 75 kA | - | - | 1 kV | -25°C ~ 60°C | - | Chassis Mount | - |
|
|
M9LC550SPD TYPE 1 150VAC MCOV 1 POLE |
5,680 |
|
Datasheet |
- | Box | Active | Type 1 | Module Only | 1 | 150VAC | 10 kA | 75 kA | - | - | 1.5 kV | -25°C ~ 60°C | - | Chassis Mount | - |
|
|
M9LC275SPD TYPE 1 275VAC MCOV 1 POLE |
4,926 |
|
Datasheet |
- | Box | Active | Type 1 | Module Only | 1 | 275VAC | 20 kA | 75 kA | - | - | 900 V | -25°C ~ 60°C | - | Base Mount | - |
|
|
AGDN500PVPSPD TYPE 1 1KVAC MCOV 1 POLE |
5,593 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 1kVAC | 20 kA | - | 50 kA | 2.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
SPD2-300-1P0SPD TYP 1/TYP 2 300V MCOV 1 POLE |
3,188 |
|
Datasheet |
SPD2 1P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 300V | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
AGDN750PVPSPD TYPE 1 1.5KVAC MCOV 1 POLE |
5,161 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 1.5kVAC | 10 kA | - | 65 kA | 4 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
SPD2-350-1P0SPD TYP 1/TYP 2 350V MCOV 1 POLE |
6,242 |
|
Datasheet |
SPD2 1P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 350V | 20 kA | 50 kA | 200 kA | 1 kV | 1.75 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
1270-NPE-150SPD TYPE 1/TYPE 2 MCOV 1 POLE |
5,726 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 1 | - | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | - |
|
|
1270-NPE-255SPD TYPE 1/TYPE 2 MCOV 1 POLE |
7,903 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 1 | - | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | - |
|
|
1260-1S-690SPD 750VAC MCOV 1 POLE |
4,340 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 750VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-1S-480SPD 600VAC MCOV 1 POLE |
3,991 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 600VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
AGDN277PSPD TYPE 1 350VAC MCOV 1 POLE |
4,936 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 350VAC | 20 kA | - | 200 kA | 1 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
AGDN240PSPD TYPE 1 300VAC MCOV 1 POLE |
2,708 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 300VAC | 20 kA | - | 150 kA | 900 V | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
AGDN120PSPD TYPE 1 150VAC MCOV 1 POLE |
4,730 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 150VAC | 20 kA | - | 200 kA | 600 V | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
