Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2726820000SPD TYPE 2 305VAC MCOV 1 POLE |
7,717 |
|
Datasheet |
- | Box | Active | Type 2 | Module Only | 1 | 305VAC | 40 kA | 65 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | - | Base Mount | CE, cULus, VDE |
|

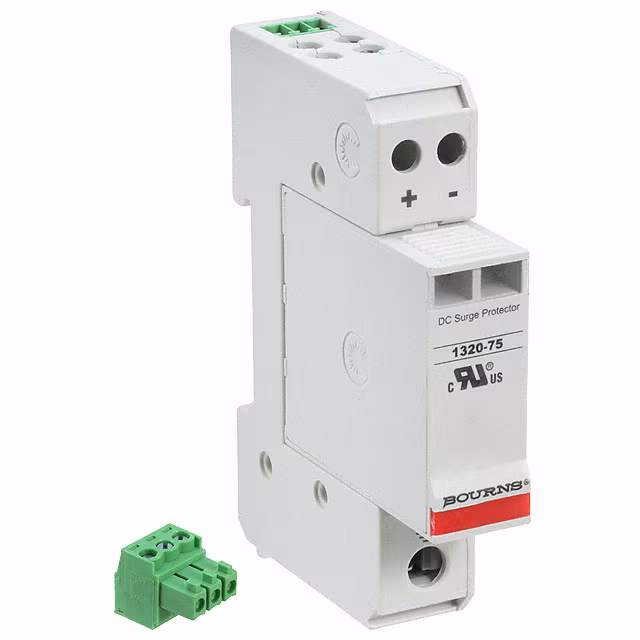

1320-S-75SPD TYPE 2/TYPE 4 100VDC MCOV |
9,020 |
|
Datasheet |
1320 | Bulk | Active | Type 2, Type 4 | Base + Module | 2 | 100VDC | 20 kA | 40 kA | - | - | 390 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, CSA, UR |
|
|
AGDN12010RSPD TYPE 1 150VAC MCOV 1 POLE |
3,949 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 150VAC | 20 kA | - | 200 kA | 600 V | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
MJ8-POE-APOE, POE++ SPD |
6,684 |
|
Datasheet |
- | Active | - | Module Only | 1 | - | - | 16 kA | - | - | - | -35°C ~ 60°C | - | Chassis Mount | UL | |
|

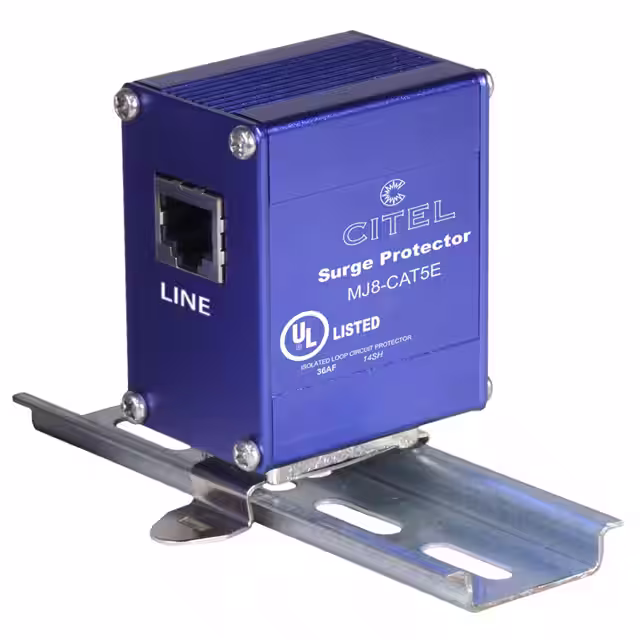

MJ8-CAT5ECAT5E ETHERNET SPD |
3,575 |
|
Datasheet |
- | Active | - | Module Only | 1 | - | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | UL | |
|
DS41S-120SPD TYPE 4 150VAC MCOV 1 POLE |
3,824 |
|
Datasheet |
- | Active | Type 4 | Module Only | 1 | 150VAC | 20 kA | 40 kA | - | - | - | -35°C ~ 60°C | Remote Signaling Contacts | DIN Rail | EAC, cURus, TUV, UL | |
|
|
1280-4S-690SPD TYPE 1/TYPE 2 750VAC MCOV |
6,393 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 750VAC | 20 kA | 50 kA | 25 kA | - | 2.8 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
SPD2-750-1P0SPD TYP 1/TYP 2 750V MCOV 1 POLE |
2,496 |
|
Datasheet |
SPD2 1P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 750V | 20 kA | 35 kA | 200 kA | 2.5 kV | 3.4 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
AGDN600PSPD TYPE 1 750VAC MCOV 1 POLE |
7,299 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 750VAC | 20 kA | - | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
1260-1SMG-400SPD 440VAC MCOV 1 POLE |
3,008 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 440VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-1SMG-277SPD 350VAC MCOV 1 POLE |
7,145 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 350VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-1SMG-127SPD 180VAC MCOV 1 POLE |
8,702 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 180VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
AGDN48010RSPD TYPE 1 550VAC MCOV 1 POLE |
4,075 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 550VAC | 20 kA | - | 200 kA | 2 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
AGDN40010RSPD TYPE 1 480VAC MCOV 1 POLE |
8,270 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 480VAC | 20 kA | - | 200 kA | 1.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
2800003SPD TYPE 1/TYPE 2 150VAC MCOV |
3,126 |
|
Datasheet |
- | Bulk | Obsolete | Type 1, Type 2 | Module Only | 1 | 150VAC | - | 25 kA | 22 kA | - | - | -40°C ~ 70°C | - | - | CSA, cUL, UL |
|
|
2736300000SPD TYPE 1 300V MCOV 1 POLE |
4,818 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 300V | 20 kA | 50 kA | 200 kA | 900 V | - | -40°C ~ 85°C | - | DIN Rail | cULus |
|
|
1270-2S-277SPD TYPE 1/TYPE 2 350VAC MCOV |
4,715 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 350VAC | 25 kA | 80 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-2S-127SPD TYPE 1/TYPE 2 180VAC MCOV |
7,120 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 180VAC | 25 kA | 80 kA | 50 kA | - | 1 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-2S-120SPD TYPE 1/TYPE 2 150VAC MCOV |
3,456 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 150VAC | 25 kA | 80 kA | 50 kA | - | 800 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-2S-400SPD TYPE 1/TYPE 2 440VAC MCOV |
9,919 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 440VAC | 25 kA | 65 kA | 50 kA | - | 2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
