Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

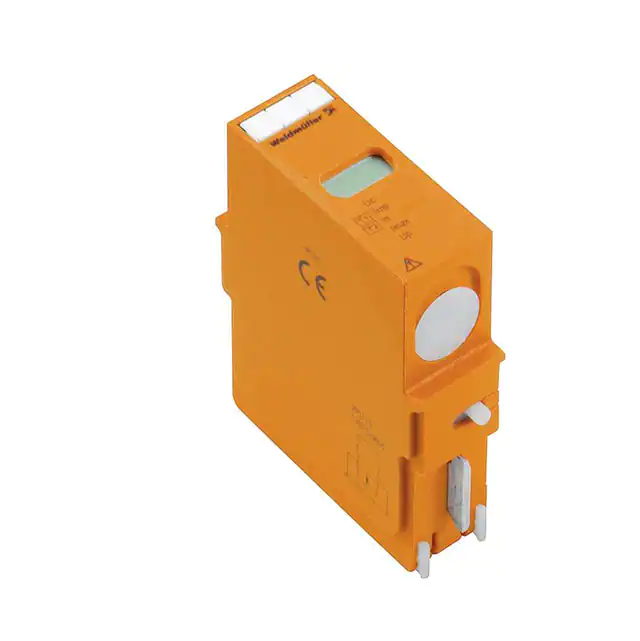

2025080000SPD TYPE 1 275VAC MCOV 1 POLE |
1,739 |
|
Datasheet |
VPU | Box | Active | Type 1 | Module Only | 1 | 275VAC | 20 kA | 40 kA | 200 kA | - | - | -40°C ~ 70°C | Visual Life Indicator | DIN Rail | - |
|
BPMA230ULSPD 230VAC MCOV 1 POLE |
5,230 |
|
Datasheet |
BPM | Bulk | Active | - | Module Only | 1 | 230VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 80°C | Remote Signaling Contacts | Chassis Mount | - |
|

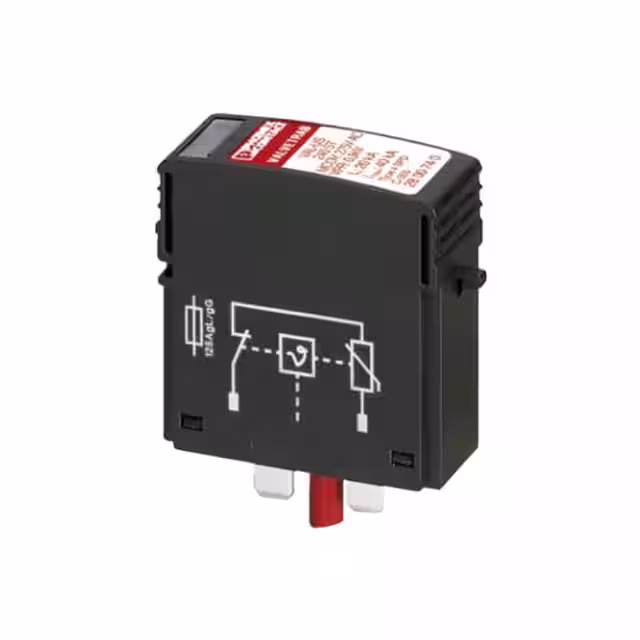

2800740SPD TYPE 2 275VAC MCOV 1 POLE |
2,393 |
|
Datasheet |
- | Bulk | Obsolete | Type 2 | Module Only | 1 | 275VAC | 20 kA | 40 kA | 25 kA | - | 1.35 kV | -40°C ~ 80°C | - | Base Mount | CSA, cUL, cULus, EAC, UL |
|
|
1270-2S-480SPD TYPE 1/TYPE 2 600VAC MCOV |
2,275 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 600VAC | 25 kA | 65 kA | 50 kA | - | 2.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
AGDN60010RSPD TYPE 1 750VAC MCOV 1 POLE |
2,197 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 750VAC | 20 kA | - | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
1270-2S-690SPD TYPE 1/TYPE 2 750VAC MCOV |
2,161 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 750VAC | 25 kA | 65 kA | 50 kA | - | 2.8 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2591300000SPD TYP 2/TYP 3 750V MCOV 1 POLE |
2,214 |
|
Datasheet |
- | Bulk | Active | Type 2, Type 3 | Base + Module | 1 | 750V | 20 kA | 35 kA | 200 kA | 2.5 kV | 3.4 kV | -40°C ~ 85°C | - | DIN Rail | CE, cURus, VDE |
|
1202-240SSPD |
2,587 |
|
Datasheet |
1202 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2736420000SPD TYPE 2 750VAC MCOV 1 POLE |
4,292 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 1 | 750VAC | 20 kA | 50 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
|
1430-PV-100-DSPD TYPE 1/TYPE 2 170VDC MCOV |
3,701 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 170VDC | 25 kA | 80 kA | 25 kA | - | 1 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-200-DSPD TYPE 1/TYPE 2 225VDC MCOV |
3,629 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 225VDC | 25 kA | 80 kA | 25 kA | - | 255 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-2NS-127SPD TYPE 1/TYPE 2 180VAC MCOV |
5,043 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 180VAC | 50 kA | 100 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-300-DSPD TYPE 1/TYPE 2 350VDC MCOV |
4,328 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 350VDC | 25 kA | 80 kA | 25 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-150-DSPD TYPE 1/TYPE 2 170VDC MCOV |
4,512 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 170VDC | 25 kA | 80 kA | 25 kA | - | 800 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-2NS-277SPD TYPE 1/TYPE 2 350VAC MCOV |
7,577 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 350VAC | 50 kA | 100 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-60-DSPD TYPE 1/TYPE 2 100VDC MCOV |
6,347 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 100VDC | 25 kA | 80 kA | 25 kA | - | 700 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-2NS-120SPD TYPE 1/TYPE 2 150VAC MCOV |
7,006 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 150VAC | 50 kA | 100 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-500-DSPD TYPE 1/TYPE 2 560VDC MCOV |
5,990 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 560VDC | 25 kA | 80 kA | 25 kA | - | 1.8 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-400-DSPD TYPE 1/TYPE 2 460VDC MCOV |
6,933 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 460VDC | 25 kA | 80 kA | 25 kA | - | 2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|

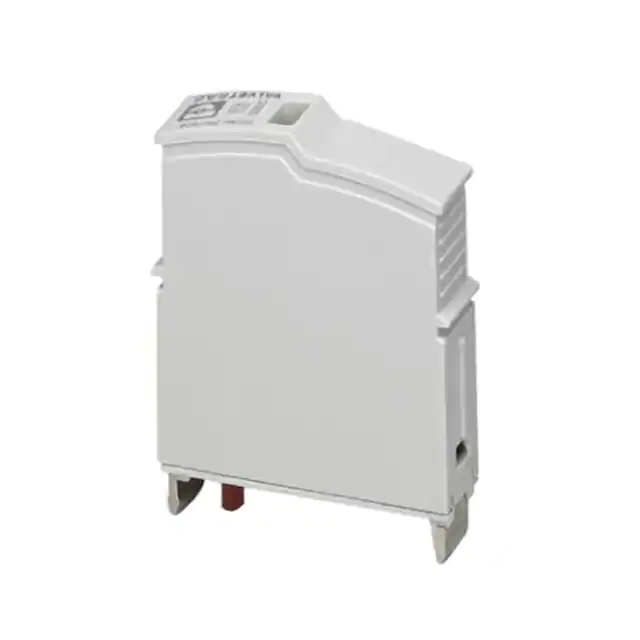

2907878SPD TYPE 2 150VDC MCOV 1 POLE |
2,180 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Module Only | 1 | 150VDC | 20 kA | 40 kA | 6 kA | 700 V | 850 V | -40°C ~ 80°C | - | Base Mount | cUL, EAC, UL |
