Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

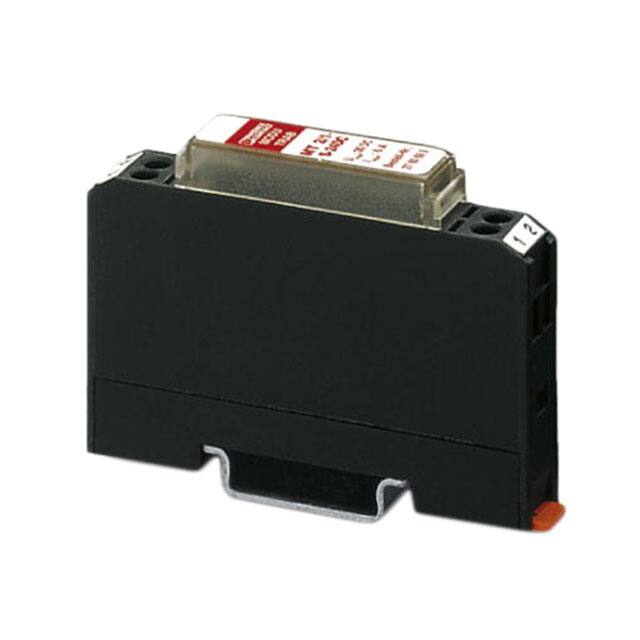

2765699SPD 21VAC/30VDC MCOV 1 POLE |
9,860 |
|
Datasheet |
- | Bulk | Obsolete | - | Base + Module | 1 | 21VAC, 30VDC | 1.5 kA | 1.5 kA | - | - | - | -40°C ~ 85°C | - | DIN Rail | EAC |
|
M9L41347SPD TYPE 1 420VAC MCOV 1 POLE |
6,117 |
|
Datasheet |
- | Box | Active | Type 1 | Base + Module | 1 | 420VAC | 10 kA | 75 kA | - | - | 1.5 kV | -25°C ~ 60°C | - | DIN Rail | - |
|
|
M9L21240SPD TYPE 1 275VAC MCOV 1 POLE |
7,005 |
|
Datasheet |
- | Box | Active | Type 1 | Base + Module | 1 | 275VAC | 20 kA | 75 kA | 200 kA | - | 900 V | -25°C ~ 60°C | - | DIN Rail | - |
|
|
M9L31277SPD TYPE 1 320VAC MCOV 1 POLE |
6,675 |
|
Datasheet |
- | Box | Active | Type 1 | Base + Module | 1 | 320VAC | 20 kA | 75 kA | 200 kA | - | 1 kV | -25°C ~ 60°C | - | DIN Rail | - |
|
|
2736270000SPD TYPE 2 75VAC MCOV 1 POLE |
2,360 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 1 | 75VAC | 20 kA | 50 kA | 200 kA | 330 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
DLA2-24D3SPD 72VDC MCOV 3 POLE |
5,773 |
|
Datasheet |
- | Active | - | Module Only | 3 | 72VDC | 50 kA | 20 kA | - | - | - | -50°C ~ 85°C | - | DIN Rail | UL | |
|
DS230S-48DCSPD TYPE 4 65VDC MCOV 2 POLE |
3,789 |
|
Datasheet |
- | Active | Type 4 | Module Only | 2 | 65VDC | 10 kA | - | - | - | - | -30°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | UL | |
|
1530-1-WSPD 1 POLE |
7,626 |
|
Datasheet |
1530-1 | Bulk | Active | - | Module Only | 1 | - | - | - | - | - | - | - | - | DIN Rail | - |
|
|
16004.2SPD TYPE 2 280VAC MCOV 2 POLE |
8,761 |
|
Datasheet |
CP VH | Box | Active | Type 2 | Base + Module | 2 | 280VAC | 40 kA | 80 kA | - | 400 V | 1.25 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
HEPD50WSPD TYPE 1 150VAC MCOV 1 POLE |
2,929 |
|
- |
- | Box | Active | Type 1 | Module Only | 1 | 150VAC | 10 kA | - | 25 kA | - | - | - | - | Free Hanging | - |
|
|
2906729SPD 21VAC/30VDC MCOV 1 POLE |
2,364 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 5 kA | 10 kA | - | - | 130 V | -40°C ~ 85°C | - | DIN Rail | CSA, UL |
|
|
BSPM1240S2GSPD TYPE 2 385VAC MCOV 1 POLE |
9,033 |
|
- |
BSPM | Bulk | Obsolete | Type 2 | Base + Module | 1 | 385VAC | 20 kA | 40 kA | 200 kA | 1.5 kV | - | - | Thermally Protected | DIN Rail | CE, UL |
|
|
2906719SPD 21VAC/30VDC MCOV 1 POLE |
4,074 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 5 kA | 5 kA | - | - | 1.45 kV | -40°C ~ 85°C | - | DIN Rail | CSA, UL |
|
|
I2R-T2DC-600S-LCSPD TYPE 2 670VDC MCOV 1 POLE |
7,271 |
|
- |
I2R | Bag | Active | Type 2 | Base + Module | 1 | 670VDC | 20 kA | - | 50 kA | 1.5 kV | - | -20°C ~ 50°C | - | DIN Rail | - |
|
|
I2R-T2DC-48T-LCSPD TYPE 2 85VDC MCOV 2 POLE |
6,133 |
|
- |
I2R | Bag | Active | Type 2 | Base + Module | 2 | 85VDC | 20 kA | - | 30 kA | 400 V | - | -20°C ~ 50°C | - | DIN Rail | - |
|

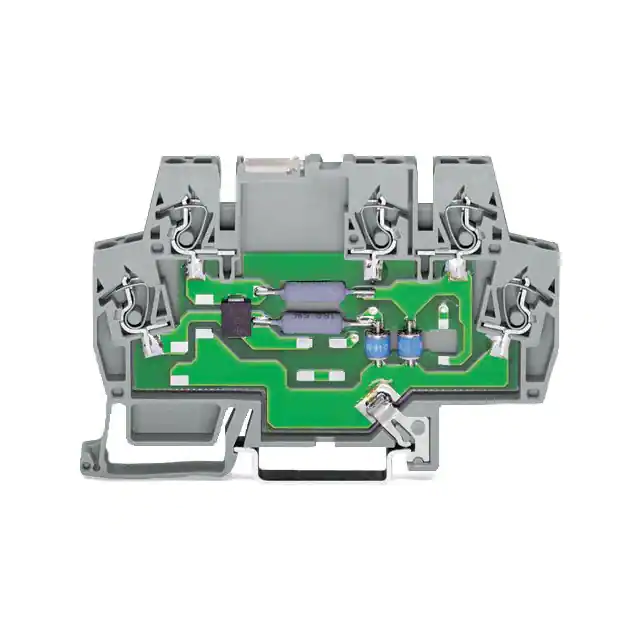

792-801SPD 23VAC/33VDC MCOV 1 POLE |
6,851 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 23VAC, 33VDC | 5 kA | 10 kA | - | - | 50 V | -40°C ~ 80°C | - | DIN Rail | EAC |
|
|
SPD2-300-2P0SPD TYP 1/TYP 2 300V MCOV 2 POLE |
5,859 |
|
Datasheet |
SPD2 2P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 2 | 300V | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
SPD2-150-2P0SPD TYP 1/TYP 2 150V MCOV 2 POLE |
6,741 |
|
Datasheet |
SPD2 2P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 2 | 150V | 20 kA | 50 kA | 200 kA | 600 V | 1.25 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
SPD2-350-2P0SPD TYP 1/TYP 2 350V MCOV 2 POLE |
6,128 |
|
Datasheet |
SPD2 2P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 2 | 350V | 20 kA | 50 kA | 200 kA | 1 kV | 1.75 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
DRS-175SPD 1 POLE |
8,420 |
|
- |
DRS | Bulk | Obsolete | - | Module Only | 1 | - | - | 10 kA | - | - | - | -40°C ~ 85°C | - | DIN Rail | - |
