Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPD2-480-1P0SPD TYP 1/TYP 2 480V MCOV 1 POLE |
5,528 |
|
Datasheet |
SPD2 1P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 480V | 20 kA | 50 kA | 200 kA | 1.5 kV | 2.3 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
AGDN400PSPD TYPE 1 480VAC MCOV 1 POLE |
3,449 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 480VAC | 20 kA | - | 200 kA | 1.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
AGDN480PSPD TYPE 1 550VAC MCOV 1 POLE |
6,660 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 550VAC | 20 kA | - | 200 kA | 2 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
DLA-12D3SPD 72VDC MCOV 2 POLE |
4,957 |
|
Datasheet |
- | Active | - | Module Only | 2 | 72VDC | 5 kA | 20 kA | - | - | - | -50°C ~ 85°C | - | DIN Rail | UL | |
|
DLA-24D3SPD 72VDC MCOV 2 POLE |
2,805 |
|
Datasheet |
- | Active | - | Module Only | 2 | 72VDC | 5 kA | 20 kA | - | - | - | -50°C ~ 85°C | - | DIN Rail | UL | |
|
|
1280-4S-120SPD TYPE 1/TYPE 2 150VAC MCOV |
5,153 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 150VAC | 20 kA | 50 kA | 25 kA | - | 800 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-1200-YSPD TYPE 1/TYPE 2 1.34KVDC MCOV |
7,352 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 1.34kVDC | 20 kA | 50 kA | 25 kA | - | 4 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1280-4S-230SPD TYPE 1/TYPE 2 275VAC MCOV |
3,300 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 275VAC | 20 kA | 50 kA | 25 kA | - | 1.2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1280-4S-277SPD TYPE 1/TYPE 2 350VAC MCOV |
8,446 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 350VAC | 20 kA | 50 kA | 25 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1280-4S-127SPD TYPE 1/TYPE 2 180VAC MCOV |
6,331 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 180VAC | 20 kA | 50 kA | 25 kA | - | 1 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|

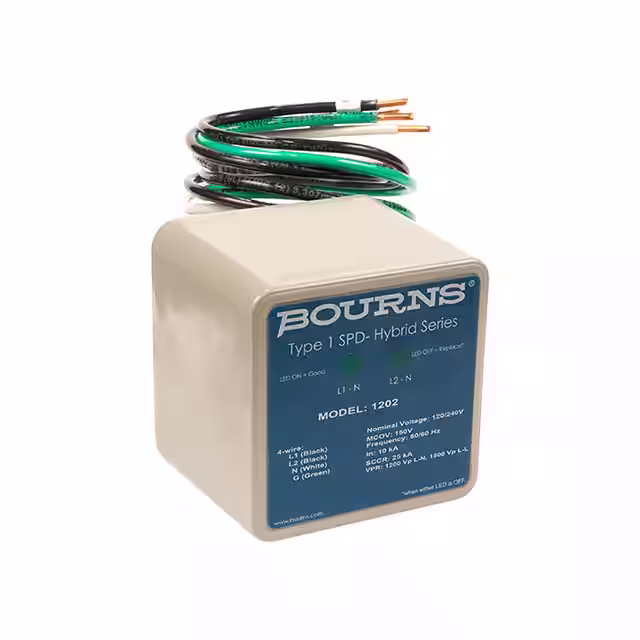

1202-120SSPD |
4,317 |
|
Datasheet |
1202 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2730440000SPD TYPE 2 150VAC MCOV 1 POLE |
8,591 |
|
Datasheet |
- | Box | Active | Type 2 | Module Only | 1 | 150VAC | 20 kA | 50 kA | 200 kA | 600 V | - | -40°C ~ 85°C | - | Base Mount | CE, cULus, VDE |
|
|
M9LC420SPD TYPE 1 420VAC MCOV 1 POLE |
4,003 |
|
Datasheet |
- | Box | Active | Type 1 | Module Only | 1 | 420VAC | 10 kA | 75 kA | - | - | 1.5 kV | -25°C ~ 60°C | - | Base Mount | - |
|
|
AGDN24010RSPD TYPE 1 300VAC MCOV 1 POLE |
8,246 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 300VAC | 20 kA | - | 150 kA | 900 V | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
AGDN27710RSPD TYPE 1 350VAC MCOV 1 POLE |
3,219 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 350VAC | 20 kA | - | 200 kA | 1 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
1280-4NS-127SPD TYPE 1/TYPE 2 150VAC MCOV |
5,357 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 150VAC | 20 kA | 50 kA | 25 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1280-4NS-277SPD TYPE 1/TYPE 2 255VAC MCOV |
7,131 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 255VAC | 20 kA | 50 kA | 25 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1280-4NS-120SPD TYPE 1/TYPE 2 150VAC MCOV |
9,582 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 150VAC | 20 kA | 50 kA | 25 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2730760000SPD TYPE 2 750VAC MCOV 1 POLE |
8,521 |
|
Datasheet |
- | Box | Active | Type 2 | Module Only | 1 | 750VAC | 20 kA | 50 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | - | Base Mount | CE, cULus, VDE |
|
|
2730690000SPD TYPE 2 480VAC MCOV 1 POLE |
3,856 |
|
Datasheet |
- | Box | Active | Type 2 | Module Only | 1 | 480VAC | 20 kA | 50 kA | 200 kA | 1.5 kV | - | -40°C ~ 85°C | - | Base Mount | CE, cULus, VDE |
