Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2520-4L2-48SPD 38.1VAC/54VDC MCOV 4 POLE |
8,126 |
|
Datasheet |
2520 | Box | Active | - | Base + Module | 4 | 38.1VAC, 54VDC | 10 kA | 20 kA | - | - | 100 V | -40°C ~ 85°C | - | DIN Rail | - |
|
|
2520-4L1-05SPD 4.2VAC/6VDC MCOV 4 POLE |
5,220 |
|
Datasheet |
2520 | Box | Active | - | Base + Module | 4 | 4.2VAC, 6VDC | 10 kA | 20 kA | - | - | 30 V | -40°C ~ 85°C | - | DIN Rail | - |
|
|
2520-4L2-05SPD 4.2VAC/6VDC MCOV 4 POLE |
7,724 |
|
Datasheet |
2520 | Box | Active | - | Base + Module | 4 | 4.2VAC, 6VDC | 10 kA | 20 kA | - | - | 30 V | -40°C ~ 85°C | - | DIN Rail | - |
|
|
2520-4L1-48SPD 38.1VAC/54VDC MCOV 4 POLE |
4,957 |
|
Datasheet |
2520 | Box | Active | - | Base + Module | 4 | 38.1VAC, 54VDC | 10 kA | 20 kA | - | - | 100 V | -40°C ~ 85°C | - | DIN Rail | - |
|
|
1270-690SPD AC 65KA MODULE 750VAC |
7,616 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1430-750SPD DC 80KA MODULE 750VDC |
5,209 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1675-01SPD 36V MCOV 1 POLE |
9,196 |
|
Datasheet |
- | Bag | Active | - | Module Only | 1 | 36V | - | - | - | 40 V | 300 V | -40°C ~ 70°C | Visual Life Indicator | Surface Mount | - |
|
|
16003.2SPD TYPE 2 280VAC MCOV 1 POLE |
4,354 |
|
Datasheet |
CP VH | Box | Active | Type 2 | Base + Module | 1 | 280VAC | 20 kA | 40 kA | - | 400 V | 1.25 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2520-4L3-05SPD 4.2VAC/6VDC MCOV 4 POLE |
8,184 |
|
Datasheet |
2520 | Box | Active | - | Base + Module | 4 | 4.2VAC, 6VDC | 10 kA | 20 kA | - | - | 30 V | -40°C ~ 85°C | - | DIN Rail | - |
|
|
2520-4L3-24SPD 33VDC MCOV 4 POLE |
9,860 |
|
Datasheet |
2520 | Box | Active | - | Base + Module | 4 | 33VDC | 10 kA | 20 kA | - | - | 55 V | -40°C ~ 85°C | - | DIN Rail | - |
|
|
2520-4L3-12SPD 15VDC MCOV 4 POLE |
6,746 |
|
Datasheet |
2520 | Box | Active | - | Base + Module | 4 | 15VDC | 10 kA | 20 kA | - | - | 45 V | -40°C ~ 85°C | - | DIN Rail | - |
|
|
2520-4L3-48SPD 38.1VAC/54VDC MCOV 4 POLE |
2,151 |
|
Datasheet |
2520 | Box | Active | - | Base + Module | 4 | 38.1VAC, 54VDC | 10 kA | 20 kA | - | - | 100 V | -40°C ~ 85°C | - | DIN Rail | - |
|
|
1280-3S-690SPD TYPE 1/TYPE 2 750VAC MCOV |
4,517 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 3 | 750VAC | 20 kA | 50 kA | 25 kA | - | 2.8 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1250A-1S-277SPD TYP 2/TYP 4 320V MCOV 1 POLE |
6,131 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 1 | 320V | 20 kA | 50 kA | 200 kA | 1.2 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1440-PV-100-YSPD TYPE 1/TYPE 2 170VDC MCOV |
7,106 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 170VDC | 20 kA | 50 kA | 25 kA | - | 600 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-300-YSPD TYPE 1/TYPE 2 350VDC MCOV |
7,139 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 350VDC | 20 kA | 50 kA | 25 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-400-YSPD TYPE 1/TYPE 2 460VDC MCOV |
4,377 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 460VDC | 20 kA | 50 kA | 25 kA | - | 2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-600-YSPD TYPE 1/TYPE 2 700VDC MCOV |
6,469 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 700VDC | 20 kA | 50 kA | 25 kA | - | 2.2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-200-YSPD TYPE 1/TYPE 2 225VDC MCOV |
9,215 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 225VDC | 20 kA | 50 kA | 25 kA | - | 1.2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|

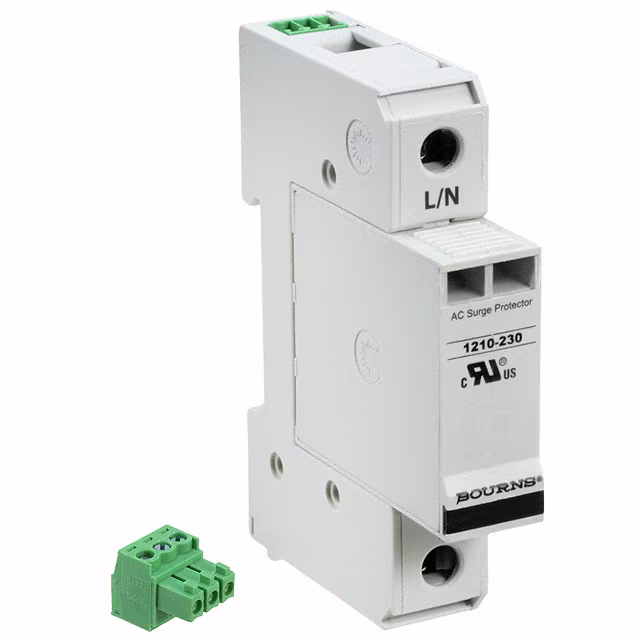

1210-1S-230SPD TYPE 2/TYPE 4 275VAC MCOV |
8,669 |
|
Datasheet |
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 1 | 275VAC | 20 kA | 100 kA | 100 kA | 900 V | 1.25 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
