Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6720005415SPD TYPE 2 150VAC MCOV 1 POLE |
8,034 |
|
- |
SPD | Bulk | Obsolete | Type 2 | Base + Module | 1 | 150VAC | 20 kA | 40 kA | - | - | - | -50°C ~ 85°C | - | DIN Rail | - |
|
2025830000SPD TYPE 2 127VAC MCOV 1 POLE |
6,620 |
|
Datasheet |
- | Bulk | Obsolete | Type 2 | Base + Module | 1 | 127VAC | - | 40 kA | - | - | - | - | - | DIN Rail | UL |
|

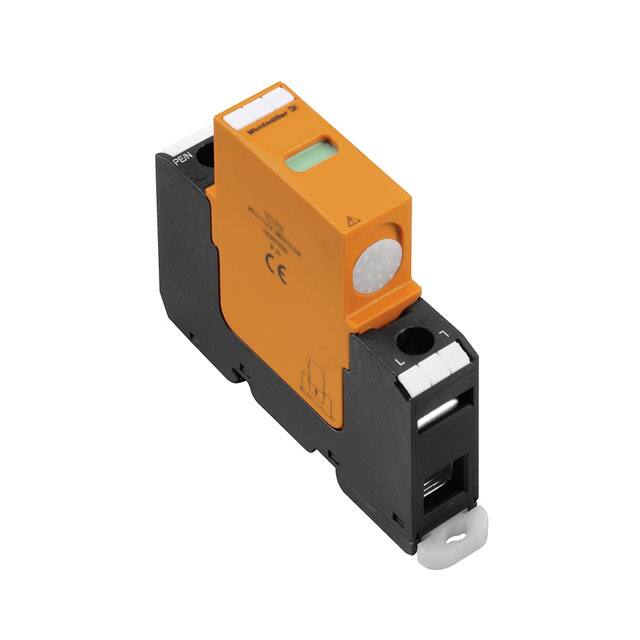

2025800000SPD TYPE 2 385VAC MCOV 1 POLE |
6,997 |
|
- |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 385VAC | - | 40 kA | - | - | - | - | Remote Signaling Contacts | DIN Rail | - |
|
2908192SPD 10VAC/15VDC MCOV 1 POLE |
5,127 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 10VAC, 15VDC | 5 kA | 10 kA | - | - | 750 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
|
2908203SPD 30VAC/53VDC MCOV 1 POLE |
2,645 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 30VAC, 53VDC | 5 kA | 10 kA | - | - | 150 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
|
HEPD50SPD TYPE 1 150V MCOV 1 POLE |
3,846 |
|
- |
- | Box | Active | Type 1 | Module Only | 1 | 150V | 10 kA | 50 kA | 25 kA | 1 kV | - | - | - | Panel Mount | - |
|
|
2801489SPD TYPE 2 350VAC MCOV 1 POLE |
9,292 |
|
Datasheet |
VAL-MS | Bulk | Obsolete | Type 2 | Base + Module | 1 | 350VAC | 10 kA | 20 kA | - | - | 1.2 kV | -40°C ~ 80°C | - | DIN Rail | - |
|
|
2801487SPD TYP2 75VAC/100VDC MCOV 1POLE |
8,925 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 2 | Base + Module | 1 | 75VAC, 100VDC | 10 kA | 20 kA | - | - | 1.4 kV | -40°C ~ 80°C | - | DIN Rail | - |
|
|
2591370000SPD TYPE 1/TYPE 2 300VAC MCOV |
6,747 |
|
Datasheet |
- | Box | Active | Type 1, Type 2 | Module Only | 1 | 300VAC | 20 kA | 50 kA | 150 kA | 900 V | - | -40°C ~ 85°C | - | Base Mount | CE, cURus, VDE |
|
|
1420A-PV-600-YSPD TYP 2/TYP 4 700V MCOV 1 POLE |
4,963 |
|
Datasheet |
1420A | Box | Active | Type 2, Type 4 | Base + Module | 1 | 700V | 20 kA | 50 kA | 50 kA | 1.8 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
QO250PSPDSPD TYPE 2 150VAC MCOV 1 POLE |
2,573 |
|
Datasheet |
- | Box | Active | Type 2 | Module Only | 1 | 150VAC | 20 kA | 50 kA | 22 kA | - | - | - | - | Chassis Mount | - |
|
|
HOM250PSPDSPD TYPE 2 150V MCOV 1 POLE |
3,977 |
|
Datasheet |
- | Box | Active | Type 2 | Module Only | 1 | 150V | 20 kA | - | 22 kA | - | - | - | - | DIN Rail | - |
|
|
2800369SPD 120VAC MCOV 1 POLE |
2,165 |
|
Datasheet |
VAL-SQ NP | Bulk | Obsolete | - | Module Only | 1 | 120VAC | - | - | - | - | - | -55°C ~ 70°C | - | Base Mount | UL |
|
|
I2R-T2DC-800Y-LCSPD TYPE 2 920VDC MCOV 3 POLE |
4,895 |
|
- |
I2R | Bag | Active | Type 2 | Base + Module | 3 | 920VDC | 20 kA | - | 50 kA | 2.5 kV | - | -20°C ~ 50°C | - | DIN Rail | - |
|
|
I2R-T2DC-600Y-LCSPD TYPE 2 670VDC MCOV 3 POLE |
7,980 |
|
- |
I2R | Bag | Active | Type 2 | Base + Module | 3 | 670VDC | 20 kA | - | 50 kA | 1.8 kV | - | -20°C ~ 50°C | - | DIN Rail | - |
|
|
QO2175SBSPD TYPE 2 300VAC MCOV 1 POLE |
7,217 |
|
Datasheet |
- | Box | Active | Type 2 | Module Only | 1 | 300VAC | 5 kA | 22.5 kA | 22 kA | 1.5 kV | - | -20°C ~ 60°C | - | DIN Rail | cULus |
|
|
HOM2175SBSPD TYPE 2 150V MCOV 1 POLE |
2,143 |
|
Datasheet |
- | Box | Active | Type 2 | Module Only | 1 | 150V | 5 kA | 22.5 kA | 22 kA | - | - | 65°C | - | DIN Rail | - |
|
|
AGDN24020RSPD TYPE 1 300VAC MCOV 2 POLE |
3,066 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 2 | 300VAC | 20 kA | - | 150 kA | 900 V | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
AGDN12020RSPD TYPE 1 150VAC MCOV 2 POLE |
6,902 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 2 | 150VAC | 20 kA | - | 200 kA | 600 V | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
AGDN27720RSPD TYPE 1 350VAC MCOV 2 POLE |
7,312 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 2 | 350VAC | 20 kA | - | 200 kA | 1 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
