Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS220S-12DCSPD TYPE 2 24VDC MCOV 1 POLE |
8,660 |
|
- |
- | Active | Type 2 | Base + Module | 1 | 24VDC | 10 kA | 20 kA | - | - | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, UL | |
|
1250-2S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
6,471 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 2 | 420VAC | 20 kA | 50 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
1270-3S-690SPD TYPE 1/TYPE 2 750VAC MCOV |
4,375 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 3 | 750VAC | 25 kA | 65 kA | 50 kA | - | 2.8 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
16010.2SPD TYPE 3 250VAC MCOV 1 POLE |
8,462 |
|
- |
- | Box | Active | Type 3 | Base + Module | 1 | 250VAC | 10 kA | 30 kA | - | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2736470000SPD TYPE 2 300VAC MCOV 1 POLE |
3,185 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 1 | 300VAC | 20 kA | 50 kA | 200 kA | 900 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
1530-1DSPD 1 POLE |
4,541 |
|
Datasheet |
1530-1 | Bulk | Active | - | Module Only | 1 | - | - | - | - | - | - | - | - | DIN Rail | - |
|
|
2800782SPD 180VDC MCOV 1 POLE |
3,148 |
|
Datasheet |
PT | Bulk | Active | - | Module Only | 1 | 180VDC | - | - | - | - | - | -40°C ~ 85°C | - | Base Mount | - |
|
|
1250A-2S-480SPD TYP 2/TYP 4 550V MCOV 2 POLE |
8,117 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 2 | 550V | 20 kA | 50 kA | 200 kA | 1.8 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2S-480SPD 600VAC MCOV 2 POLE |
5,145 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 600VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2S-690SPD 750VAC MCOV 2 POLE |
7,372 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 750VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
BSPM1A150D200LVRSPD TYPE 4 120VAC/200VDC MCOV |
3,425 |
|
Datasheet |
BSPM | Bulk | Active | Type 4 | Module Only | 1 | 120VAC, 200VDC | 15 kA | 40 kA | - | - | - | - | - | DIN Rail | CE, CSA, cURus, KEMA |
|

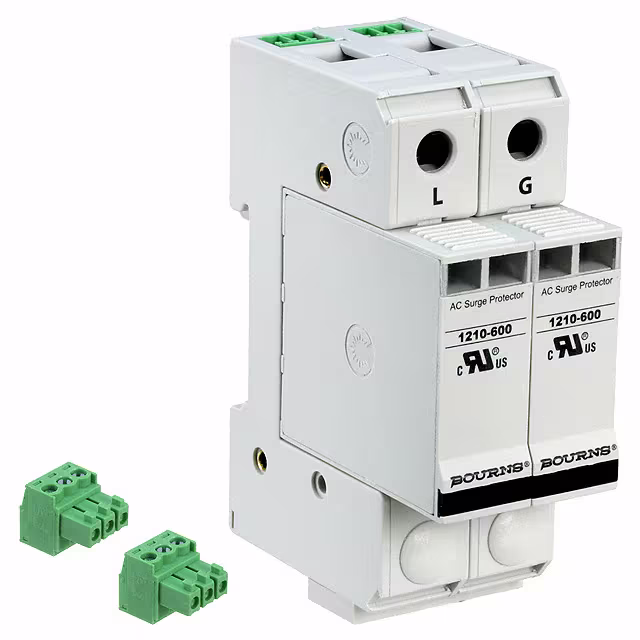

1210-1S-600SPD TYPE 2/TYPE 4 840VAC MCOV |
9,011 |
|
Datasheet |
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 1 | 840VAC | 20 kA | 100 kA | 100 kA | 3 kV | 4 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|
|
1430-PV-300-YSPD TYPE 1/TYPE 2 350VDC MCOV |
8,782 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 350VDC | 25 kA | 80 kA | 25 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-400-YSPD TYPE 1/TYPE 2 460VDC MCOV |
6,875 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 460VDC | 25 kA | 80 kA | 25 kA | - | 2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-200-YSPD TYPE 1/TYPE 2 225VDC MCOV |
6,032 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 225VDC | 25 kA | 80 kA | 25 kA | - | 255 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-600-YSPD TYPE 1/TYPE 2 700VDC MCOV |
7,534 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 700VDC | 25 kA | 80 kA | 25 kA | - | 2.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-100-YSPD TYPE 1/TYPE 2 170VDC MCOV |
9,576 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 170VDC | 25 kA | 80 kA | 25 kA | - | 1 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2801162SPD TYPE 1/TYPE 2 1.17KVDC MCOV |
7,277 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 1.17kVDC | 15 kA | 40 kA | 50 kA | 3 kV | 1.8 kV | -40°C ~ 80°C | - | Base Mount | CB, CSA, cUR, cURus, EAC, UL |
|
|
2801231SPD TYPE 1/TYPE 2 1.05KVDC MCOV |
5,658 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 1.05kVDC | 15 kA | 40 kA | - | - | 1.8 kV | -40°C ~ 80°C | - | Base Mount | CB, EAC |
|
|
2801165SPD TYPE 1/TYPE 2 360VDC MCOV |
4,460 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 360VDC | 15 kA | 40 kA | 50 kA | 2 kV | 1.4 kV | -40°C ~ 80°C | - | Base Mount | CB, cUR, cURus, EAC, UR |
