DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E9225H12B3-FSRFAN AXIAL 92X25MM 12VDC WIRE Mechatronics Fan Group |
2,222 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 36.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
G8015X12B1-RGRFAN AXIAL 80X15.3MM 12VDC WIRE Mechatronics Fan Group |
4,267 |
|
Datasheet |
G8015-G | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.30mm | 43.0 CFM (1.20m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 40.0dB(A) | - | 4800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.128 lb (58.06 g) |
|
E9225E24B-FSR-L22FAN AXIAL 92X25MM 24VDC WIRE Mechatronics Fan Group |
2,855 |
|
Datasheet |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|

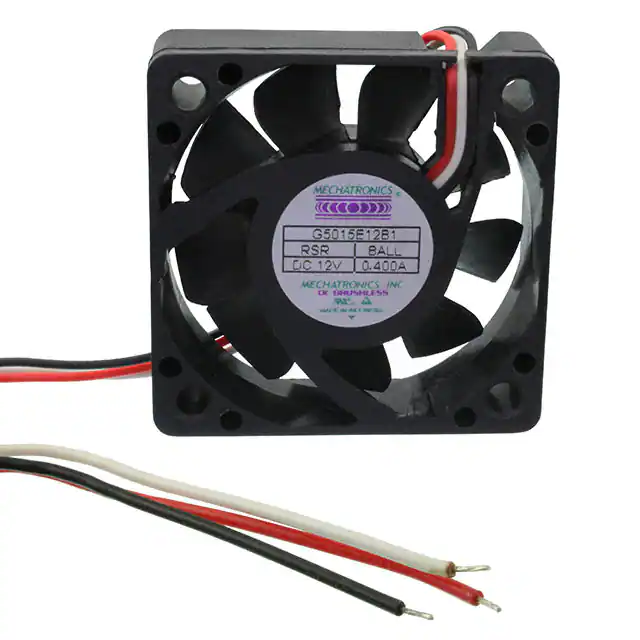

G5015E12B1-RSRFAN AXIAL 50X15MM 12VDC WIRE Mechatronics Fan Group |
4,474 |
|
Datasheet |
G5015 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 16.0 CFM (0.448m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 34.0dB(A) | - | 6500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.077 lb (34.93 g) |
|
G9225X12B-FSR-TFFAN AXIAL 92X25MM 12VDC WIRE Mechatronics Fan Group |
4,807 |
|
Datasheet |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 66.0 CFM (1.85m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.218 lb (98.88 g) |
|
F8025H24B-FHR-EM-L17FAN AXIAL 80X25MM 24VDC WIRE Mechatronics Fan Group |
3,999 |
|
Datasheet |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|

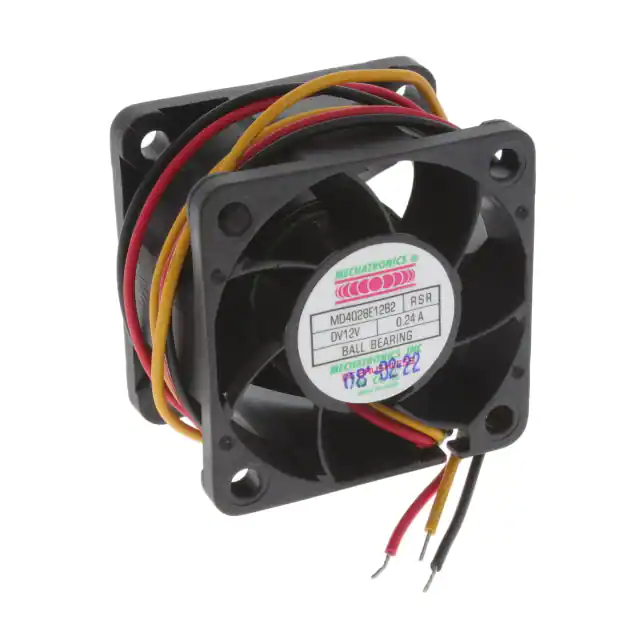

MD4028E12B2-FSR-V10FAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
1,611 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.2 CFM (0.426m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 44.0dB(A) | - | 10300 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
MB6010H12B-RSRFAN AXIAL 60X10.2MM 12VDC WIRE Mechatronics Fan Group |
4,637 |
|
Datasheet |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.20mm | 13.5 CFM (0.378m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 3900 RPM | 2 Wire Leads | - | - | cUL, UL | 0.059 lb (26.76 g) |
|

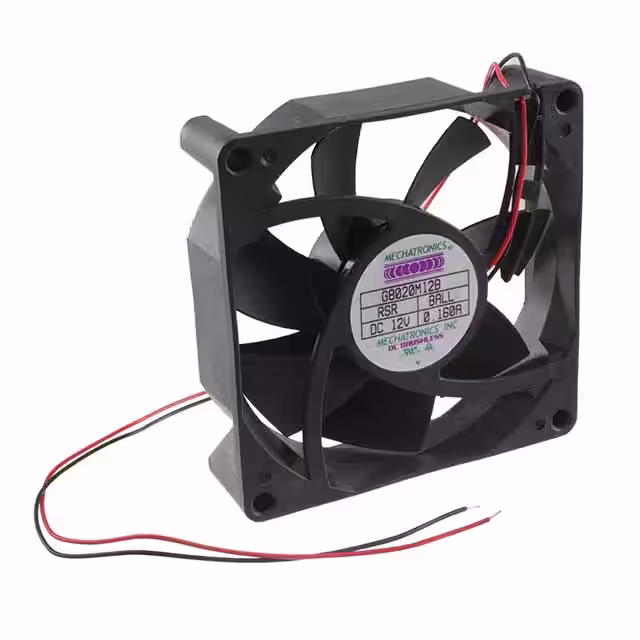

G8020M12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE Mechatronics Fan Group |
2,157 |
|
Datasheet |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.80mm | 38.0 CFM (1.06m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|

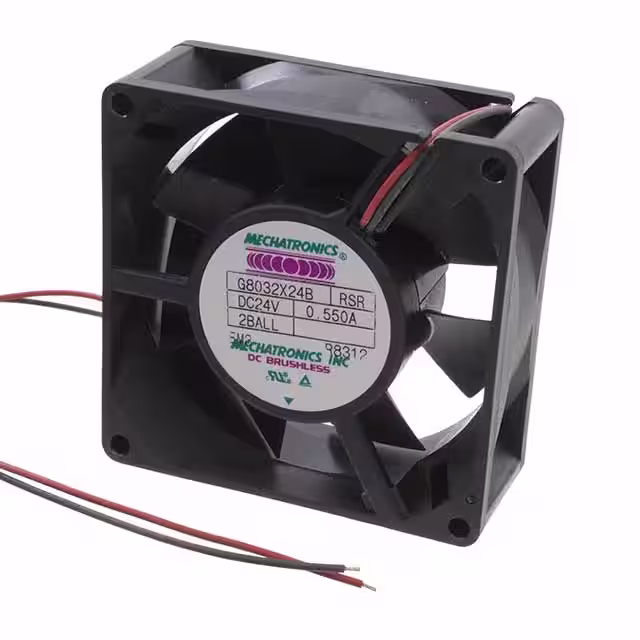

G8032X24B-RSR-EM3FAN AXIAL 80X32MM 24VDC WIRE Mechatronics Fan Group |
4,771 |
|
Datasheet |
G8032 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Thermal Overload Protector (TOP) | - | - | - | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.286 lb (129.73 g) |
