DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1238M24B-FSRFAN AXIAL 119X38MM 24VDC WIRE Mechatronics Fan Group |
3,892 |
|
Datasheet |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 105.0 CFM (2.94m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.0dB(A) | - | 2300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|

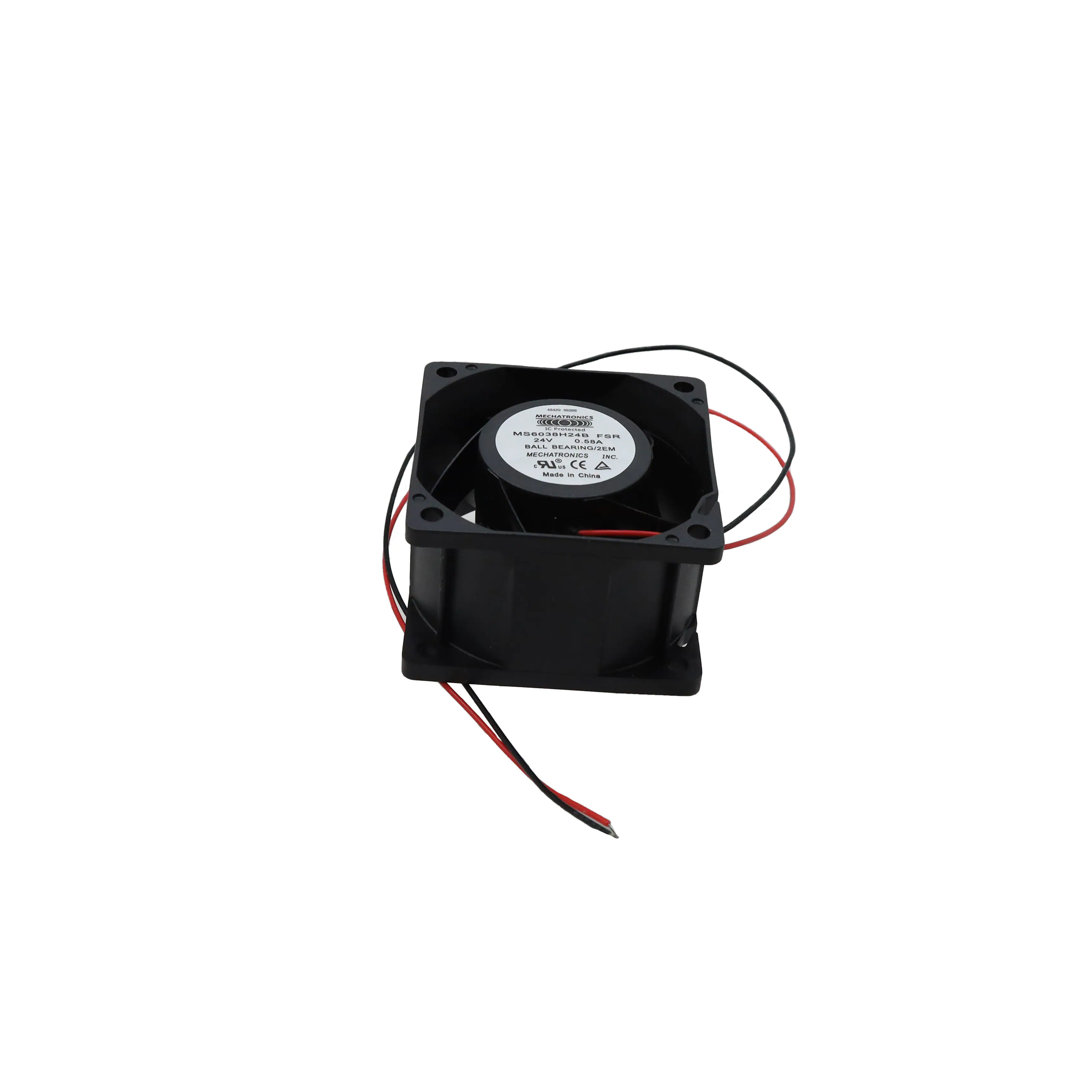

MS6038H24B-FSR-2EMFAN AXIAL 60X38MM 24VDC WIRE Mechatronics Fan Group |
2,992 |
|
Datasheet |
MS6038-S | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 58.0 CFM (1.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart | 59.0dB(A) | - | 11000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.231 lb (104.78 g) |
|
MA1751H24B1+6-FSRFAN AXIAL 172X50.8MM 24VDC WIRE Mechatronics Fan Group |
4,205 |
|
Datasheet |
MA1751 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 243.6 CFM (6.82m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 58.4dB(A) | - | 2850 RPM | 4 Wire Leads | - | - | cUL, TUV, UL | 1.7 lbs (771.1 g) |
|

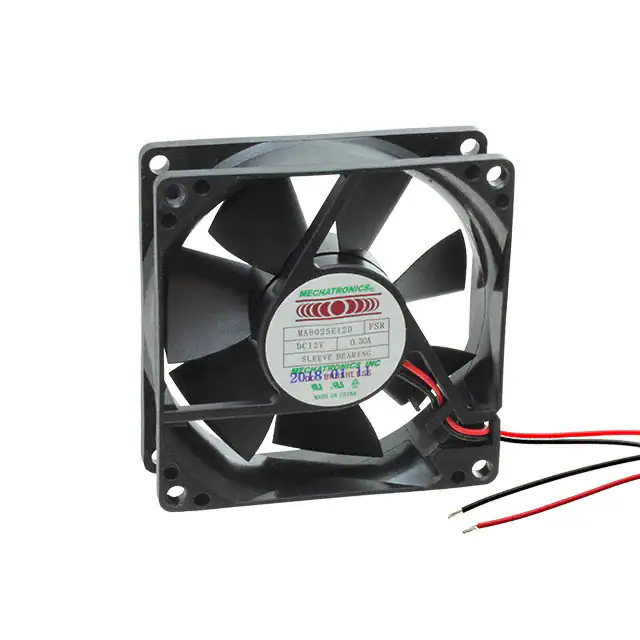

MA8025E12D-FSRFAN 80X25MM SLEEVE 12VDC WIRE Mechatronics Fan Group |
2,989 |
|
Datasheet |
MA8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Sleeve | - | - | - | - | - | 2 Wire Leads | - | - | cUL, UL | - |
|
F8025X24B-FSR-TEFFAN AXIAL 80X25MM 24VDC WIRE Mechatronics Fan Group |
3,172 |
|
Datasheet |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 51.0 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 35.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
G8032M12B-RSR-L15FAN AXIAL 80X32MM 12VDC WIRE Mechatronics Fan Group |
4,095 |
|
Datasheet |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 41.0 CFM (1.15m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 3500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.286 lb (129.73 g) |
|

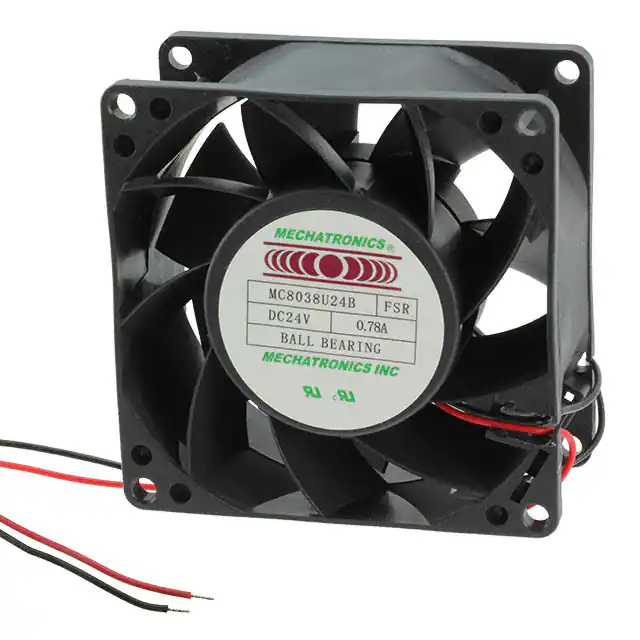

MC8038U24B-FSRFAN AXIAL 80X38MM 24VDC WIRE Mechatronics Fan Group |
3,633 |
|
Datasheet |
MC8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 95.6 CFM (2.68m³/min) | 1.150 in H2O (286.5 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 60.2dB(A) | - | 6800 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.397 lb (180.08 g) |
|
MC8038U12B-FSRFAN AXIAL 80X38MM 12VDC WIRE Mechatronics Fan Group |
2,288 |
|
Datasheet |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 95.6 CFM (2.68m³/min) | 1.150 in H2O (286.5 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 60.2dB(A) | - | 6800 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.397 lb (180.08 g) |
|
F6025X24B1-FHR-WS-EMFAN AXIAL 60X25MM 24VDC WIRE Mechatronics Fan Group |
1,197 |
|
Datasheet |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
G9225E24B1-FSR-TTL-EMFAN AXIAL 92X25MM 24VDC WIRE Mechatronics Fan Group |
4,238 |
|
Datasheet |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 58.0 CFM (1.62m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.218 lb (98.88 g) |
