DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

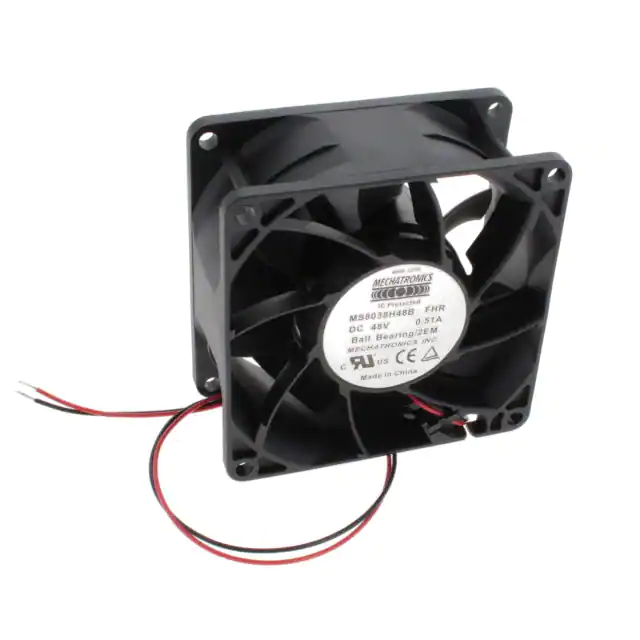

MS8038H48B-FHR-2EMFAN AXIAL 80X38MM 48VDC WIRE Mechatronics Fan Group |
3,576 |
|
Datasheet |
MS8038-H | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Auto Restart | 77.0dB(A) | - | 10000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.391 lb (177.35 g) |
|
F1238X24BT-FSRFAN AXIAL 119X38MM 24VDC TERM Mechatronics Fan Group |
4,165 |
|
Datasheet |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 45.0dB(A) | - | 3100 RPM | 2 Terminals | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
G1238L12B-FSRFAN AXIAL 119X38MM 12VDC WIRE Mechatronics Fan Group |
3,685 |
|
Datasheet |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
G4015H24B2-RSR-TTLFAN AXIAL 40X15MM 24VDC WIRE Mechatronics Fan Group |
2,483 |
|
Datasheet |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 8.0 CFM (0.224m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|
E9225H12B-FSR-CCFAN AXIAL 92X25MM 12VDC WIRE Mechatronics Fan Group |
2,055 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 36.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
B6012M24D-BSRFAN BLOWER 60X12MM 24VDC WIRE Mechatronics Fan Group |
1,367 |
|
Datasheet |
B6012 | Bulk | Active | 24VDC | Square/Rounded - 60mm L x 60mm H | 12.00mm | 5.0 CFM (0.140m³/min) | 0.300 in H2O (74.7 Pa) | Sleeve | Blower | Thermal Overload Protector (TOP) | 34.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | - | 0.057 lb (25.85 g) |
|
F6025M24B1+6-FSRFAN AXIAL 60X25MM 24VDC WIRE Mechatronics Fan Group |
4,773 |
|
Datasheet |
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.0 CFM (0.476m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 27.0dB(A) | - | 3300 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F6025X12B-FHR-EMFAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
4,409 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
E1225E24B1-FSR-TTLFAN AXIAL 120X25MM 24VDC WIRE Mechatronics Fan Group |
3,637 |
|
Datasheet |
E1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
MQ6038H12B-FSR-EMFAN AXIAL 60X38MM 12VDC WIRE Mechatronics Fan Group |
1,604 |
|
Datasheet |
MQ6038 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 57.0 CFM (1.60m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | - | 65.0dB(A) | - | 10000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.234 lb (106.14 g) |
