DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSI3116H48B1+7-BBRFAN IMP MTRZD 315X161.0MM 48VDC Mechatronics Fan Group |
1,331 |
|
Datasheet |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 161.0mm | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 76.0dB(A) | - | 2100 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 6.6 lbs (3 kg) |
|

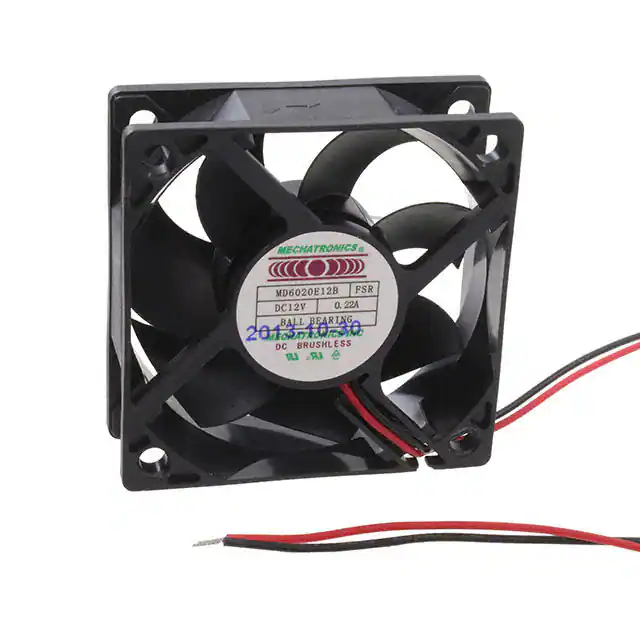

MD6020E12B-FSRFAN AXIAL 60X20.2MM 12VDC WIRE Mechatronics Fan Group |
1,935 |
|
Datasheet |
MD6020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.20mm | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 33.5dB(A) | - | 4400 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.094 lb (42.64 g) |
|

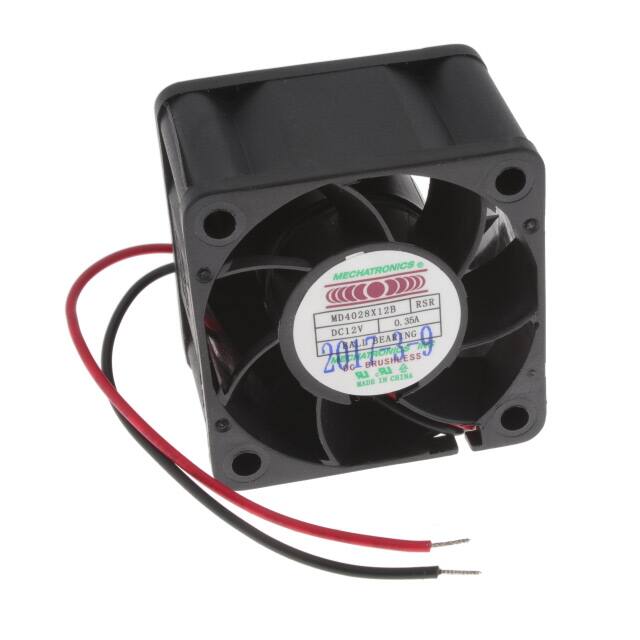

MD4028X12B-RSRFAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
4,683 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 47.3dB(A) | - | 11500 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
G4010L12D-RSRFAN AXIAL 40X10.3MM 12VDC WIRE Mechatronics Fan Group |
4,779 |
|
Datasheet |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.30mm | 6.0 CFM (0.168m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | 22.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
F6025X12B1-RHR-WSFAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
3,751 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|

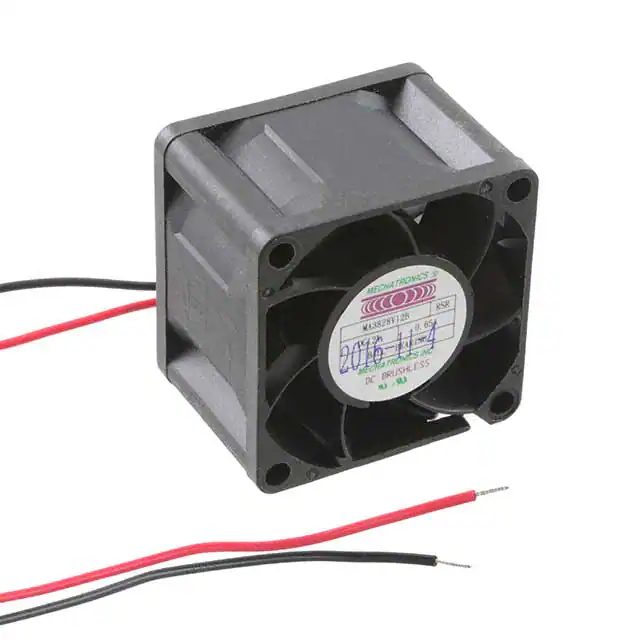

MA3828V12B-RSRFAN AXIAL 38X28MM 12VDC WIRE Mechatronics Fan Group |
2,881 |
|
Datasheet |
MA3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 19.5 CFM (0.546m³/min) | 1.145 in H2O (285.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.1dB(A) | - | 15000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.078 lb (35.38 g) |
|

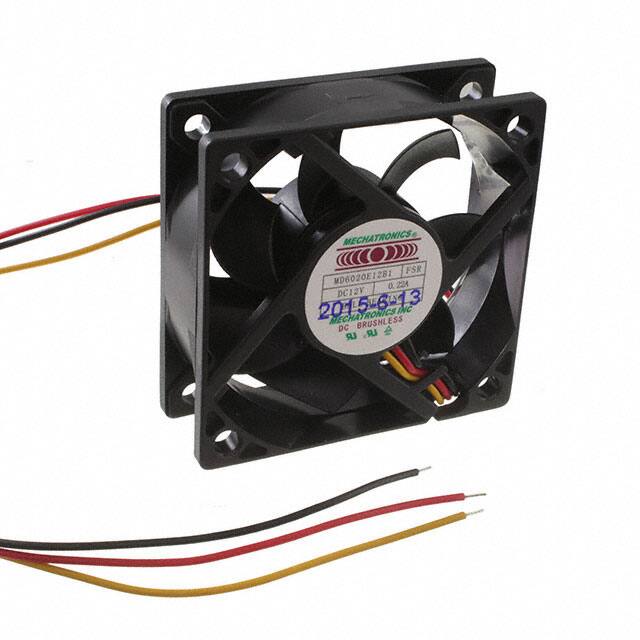

MD6020E12B1-FSRFAN AXIAL 60X20.2MM 12VDC WIRE Mechatronics Fan Group |
3,182 |
|
Datasheet |
MD6020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.20mm | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 33.5dB(A) | - | 4400 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.094 lb (42.64 g) |
|
MS2507H12D-RSRFAN AXIAL 25X7.4MM SLEEVE 12VDC Mechatronics Fan Group |
3,265 |
|
Datasheet |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 7.40mm | 1.9 CFM (0.053m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | - | 28.0dB(A) | - | 14000 RPM | - | - | - | CE, cUL, TUV, UL | 0.011 lb (4.99 g) |
|
F8025M12B-FHRFAN AXIAL 80X25MM 12VDC WIRE Mechatronics Fan Group |
3,460 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 35.0 CFM (0.980m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|

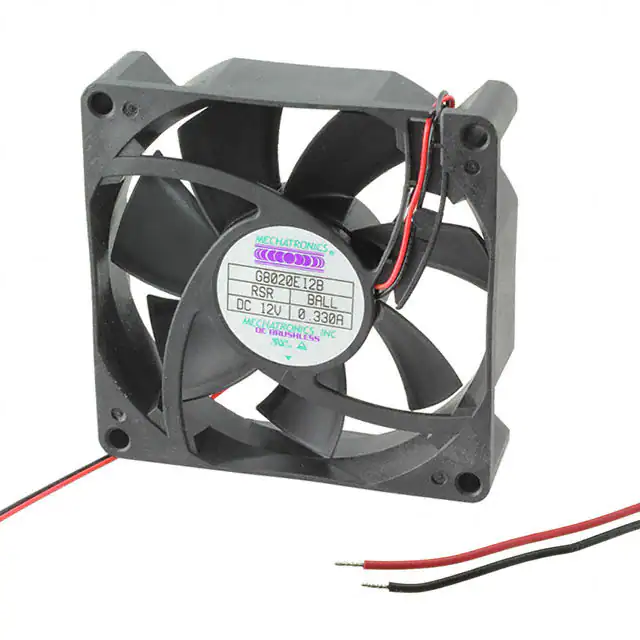

G8020E12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE Mechatronics Fan Group |
4,439 |
|
Datasheet |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.80mm | 49.0 CFM (1.37m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 37.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
