DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC8038H12B-FSR-CCFAN AXIAL 80X38MM 12VDC WIRE Mechatronics Fan Group |
1,123 |
|
Datasheet |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 69.9 CFM (1.96m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 48.2dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.397 lb (180.08 g) |
|
G6015E24B-AGR-EMFAN AXIAL 60X15MM 24VDC WIRE Mechatronics Fan Group |
1,313 |
|
Datasheet |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 5200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
G8032X12B1-RSRFAN AXIAL 80X32MM 12VDC WIRE Mechatronics Fan Group |
3,272 |
|
Datasheet |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | - | - | - | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.286 lb (129.73 g) |
|
F1238E48B-FHRFAN AXIAL 119X38MM 48VDC WIRE Mechatronics Fan Group |
3,439 |
|
Datasheet |
F1238-H | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 121.0 CFM (3.39m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.097 lb (44 g) |
|
|

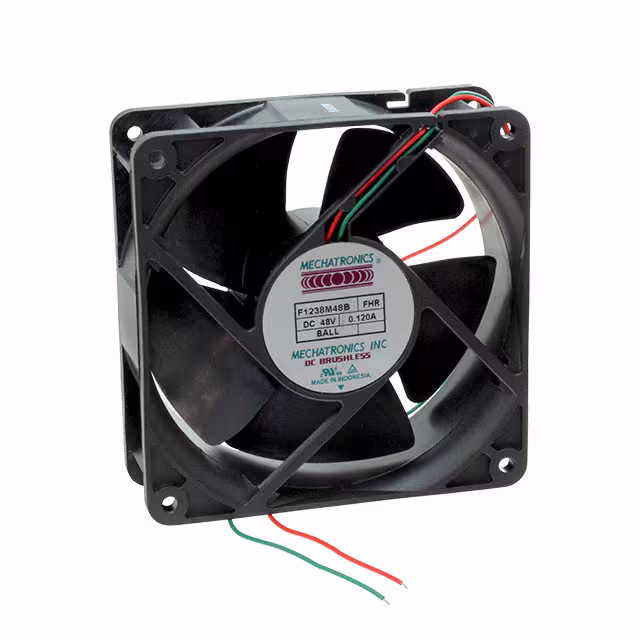

F1238M48B-FHRFAN AXIAL 119X38MM 48VDC WIRE Mechatronics Fan Group |
4,290 |
|
Datasheet |
F1238-H | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 103.0 CFM (2.88m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | - | 2700 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.59 lb (267.62 g) |
|
MR9238M12B-FSRFAN AXIAL 92X38MM 12VDC WIRE Mechatronics Fan Group |
2,133 |
|
Datasheet |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 131.0 CFM (3.67m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Tubeaxial | Auto Restart | 55.4dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
MR9232H24B-FSRFAN AXIAL 92X32MM 24VDC WIRE Mechatronics Fan Group |
4,798 |
|
Datasheet |
MR9232 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 85.0 CFM (2.38m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Auto Restart | 49.7dB(A) | - | 4400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.331 lb (150.14 g) |
|
F8025E24B-FHR-EM-L19FAN AXIAL 80X25MM 24VDC WIRE Mechatronics Fan Group |
2,579 |
|
Datasheet |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
MQ8038L24B-FSRFAN AXIAL 80X38MM 24VDC WIRE Mechatronics Fan Group |
4,588 |
|
Datasheet |
MQ8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 61.5 CFM (1.72m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.397 lb (180.08 g) |
|
F1238E12B1-FSR-L24FAN AXIAL 119X38MM 12VDC WIRE Mechatronics Fan Group |
3,549 |
|
Datasheet |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 126.0 CFM (3.53m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
