DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4020H12B1-RSR-L18FAN AXIAL 40X20MM 12VDC WIRE Mechatronics Fan Group |
3,921 |
|
Datasheet |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
MD6020M24B-FSRFAN AXIAL 60X20.2MM 24VDC WIRE Mechatronics Fan Group |
4,225 |
|
Datasheet |
MD6020 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.20mm | 16.9 CFM (0.473m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 27.5dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.094 lb (42.64 g) |
|
G4010H05B1-RSR-WSFAN AXIAL 40X10.3MM 5VDC WIRE Mechatronics Fan Group |
4,145 |
|
Datasheet |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.30mm | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|

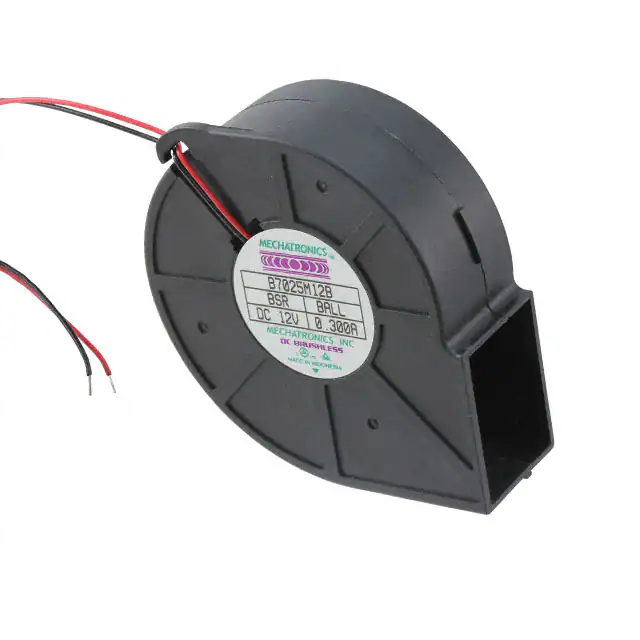

B7025M12B-BSRFAN BLOWER 69X25MM 12VDC WIRE Mechatronics Fan Group |
2,316 |
|
Datasheet |
B7025 | Bulk | Active | 12VDC | Square/Rounded - 69mm L x 66mm H | 25.00mm | 7.8 CFM (0.218m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 2600 RPM | 2 Wire Leads | - | - | - | 0.121 lb (54.88 g) |
|
F6025X12B1-RSR-TTLFAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
2,632 |
|
Datasheet |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | - | 5200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.156 lb (70.76 g) |
|
MB6010X12B1-RSR-NS-L18FAN AXIAL 60X10.2MM 12VDC WIRE Mechatronics Fan Group |
3,726 |
|
Datasheet |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.20mm | 18.7 CFM (0.524m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5300 RPM | 3 Wire Leads | - | - | cUL, UL | 0.059 lb (26.76 g) |
|
|
F6025L05B-RSRFAN AXIAL 60X25MM BALL 5VDC WIRE Mechatronics Fan Group |
1,850 |
|
Datasheet |
F6025 | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 24.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
MA3010H12B2-RSRFAN AXIAL 30X10MM 12VDC WIRE Mechatronics Fan Group |
4,609 |
|
Datasheet |
MA3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 28.0dB(A) | - | 9000 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.018 lb (8.16 g) |
|

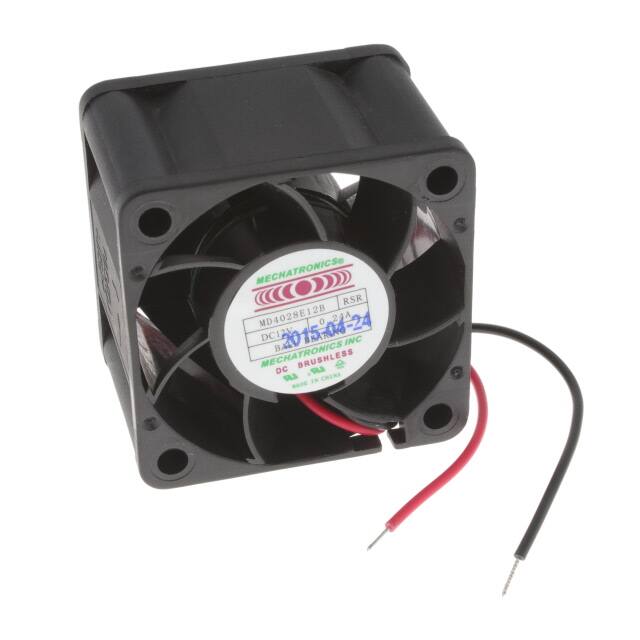

MD4028E12B-RSRFAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
1,734 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.2 CFM (0.426m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 10300 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
MD4028X24B-RSR-L24FAN AXIAL 40X28MM 24VDC WIRE Mechatronics Fan Group |
4,494 |
|
Datasheet |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 47.3dB(A) | - | 11500 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
