DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E9225L12B-FSRFAN AXIAL 92X25MM 12VDC WIRE Mechatronics Fan Group |
3,850 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 35.0 CFM (0.980m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 27.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|

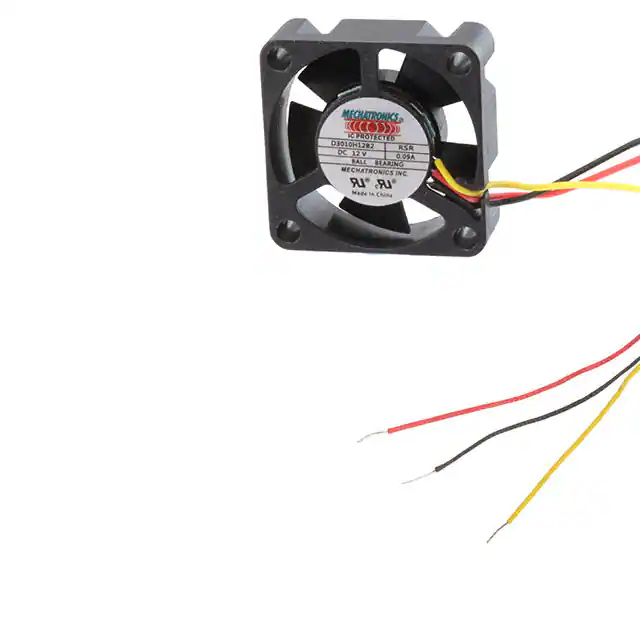

D3010H12B2-RSRFAN AXIAL 30X10MM 12VDC WIRE Mechatronics Fan Group |
3,119 |
|
Datasheet |
D3010 | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | - | - | - | 3 Wire Leads | - | - | - | - |
|
F8025E12B1-FHRFAN AXIAL 80X25MM 12VDC WIRE Mechatronics Fan Group |
1,868 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
MD4028V12B1-FSR-L11FAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
1,348 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.3 CFM (0.680m³/min) | 1.206 in H2O (300.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 53.1dB(A) | - | 15000 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
B5020L12B-BSR-CCFAN BLOWER 51X20MM 12VDC WIRE Mechatronics Fan Group |
100 |
|
Datasheet |
B5020 | Box | Active | 12VDC | Square/Rounded - 51mm L x 50mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | - | 0.049 lb (22.23 g) |
|
|
F8025H24B-FSR-L2FAN AXIAL 80X25MM 24VDC WIRE Mechatronics Fan Group |
3,947 |
|
Datasheet |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 29.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
|
MR4028H48B1+6-RSR-2946FAN DC 12 VDC Mechatronics Fan Group |
4,826 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G8015X24B1+6-RGRFAN AXIAL 80X15MM 24VDC Mechatronics Fan Group |
1,189 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MD9238E24B-FSR-CC-L10FAN AXIAL 92X38MM 24VDC WIRE Mechatronics Fan Group |
3,861 |
|
Datasheet |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 55.0dB(A) | - | 4800 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
|
G9225E24B6-FSR-EM-L20FAN AXIAL 92X25MM 24VDC WIRE Mechatronics Fan Group |
3,146 |
|
Datasheet |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 58.0 CFM (1.62m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.218 lb (98.88 g) |
