Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2910332SPD TYPE 1 264VAC MCOV 1 POLE |
5,684 |
|
Datasheet |
GDT | Bulk | Active | Type 1 | Module Only | 1 | 264VAC | 50 kA | 50 kA | - | 1.2 kV | 1.7 kV | -40°C ~ 80°C | - | Base Mount | cUR, cURus, UR |
|
SPP40SP3480WYGSPD TYPE 1 |
7,492 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPP40SP3600WYGSPD TYPE 1 |
2,409 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2736430000SPD TYPE 2 750VAC MCOV 2 POLE |
3,572 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 2 | 750VAC | 20 kA | 50 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
|
HEPD80WSPD TYPE 1 150VAC MCOV 1 POLE |
8,631 |
|
- |
- | Box | Active | Type 1 | Module Only | 1 | 150VAC | 10 kA | - | 25 kA | - | - | - | - | Free Hanging | - |
|
|
HEPD80SPD TYPE 1 150V MCOV 1 POLE |
6,439 |
|
- |
- | Box | Active | Type 1 | Module Only | 1 | 150V | 10 kA | - | - | - | - | -40°C ~ 65°C | - | Free Hanging | - |
|
|
SPD2-300-1P1SPD TYP 1/TYP 2 300V MCOV 1 POLE |
4,304 |
|
Datasheet |
SPD2 1P+1 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 300V | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
M9L22480SPD TYPE 1 550VAC MCOV 1 POLE |
8,203 |
|
Datasheet |
- | Box | Active | Type 1 | Base + Module | 1 | 550VAC | 20 kA | 75 kA | - | - | 1.8 kV | -25°C ~ 60°C | - | DIN Rail | - |
|
|
AGDN60020RSPD TYPE 1 750VAC MCOV 2 POLE |
2,103 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 2 | 750VAC | 20 kA | - | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
2591390000SPD TYPE 1/TYPE 2 300VAC MCOV |
7,906 |
|
Datasheet |
- | Box | Active | Type 1, Type 2 | Base + Module | 1 | 300VAC | 20 kA | 50 kA | 150 kA | 900 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cURus, VDE |
|
|
2730790000SPD TYPE 2 75VAC MCOV 2 POLE |
7,223 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 2 | 75VAC | 20 kA | 50 kA | 200 kA | 330 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
|
BSPM3275TNCSPD TYPE 2 275VAC MCOV 3 POLE |
2,396 |
|
- |
BSPM | Bulk | Obsolete | Type 2 | Base + Module | 3 | 275VAC | 20 kA | 40 kA | 50 kA | - | 1.5 kV | -40°C ~ 80°C | Thermally Protected | DIN Rail | CE, KEMA |
|
|
SPP40SP2240PNSPD TYPE 1 |
4,312 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPP40SP3208WYGSPD TYPE 1 |
4,373 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2801042SPD TYPE 1/TYPE 2 335VAC MCOV |
6,930 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 335VAC | 12.5 kA | 50 kA | 25 kA | - | 1.6 kV | -40°C ~ 80°C | - | DIN Rail | EAC |
|
2801240SPD TYP1/TYP2 75VAC/100VDC MCOV |
3,532 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 75VAC, 100VDC | 12.5 kA | 30 kA | 25 kA | 400 V | 400 V | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR, VDE |
|
|
2905638SPD TYP 1/TYP 2 1KVDC MCOV 1POLE |
2,870 |
|
Datasheet |
VAL | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 1kVDC | 20 kA | 40 kA | - | - | 3.3 kV | -40°C ~ 80°C | - | DIN Rail | CB |
|
|
HEPD108SPD |
9,755 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPD2-350-1P1SPD TYP 1/TYP 2 350V MCOV 1 POLE |
6,164 |
|
Datasheet |
SPD2 1P+1 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 350V | 20 kA | 50 kA | 200 kA | 1 kV | 1.75 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|

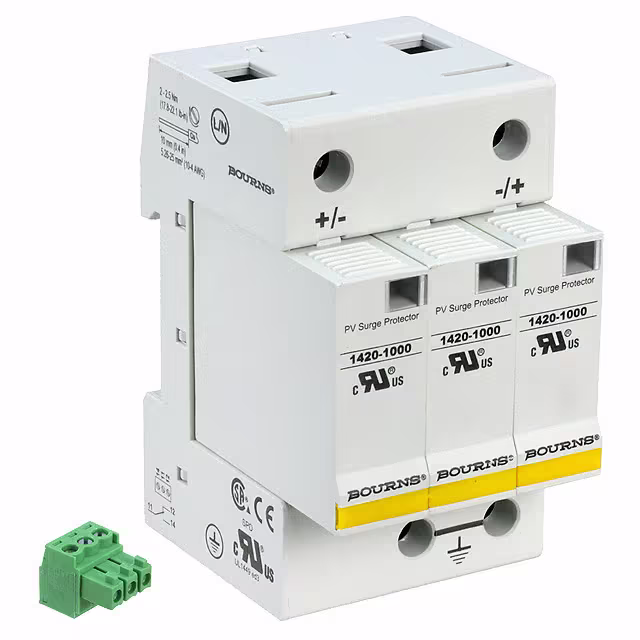

1420-PV-1000SPD TYPE 2/TYPE 4 1.2KVDC MCOV |
7,556 |
|
- |
1420 | Bulk | Active | Type 2, Type 4 | Module Only | 3 | 1.2kVDC | 20 kA | - | - | - | 3.6 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
