Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P16NM104MAB15POT 100K OHM 1W CERMET LINEAR Vishay Sfernice |
4,153 |
|
Datasheet |
P16 | Bulk | Active | 100k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16NM222MAB15POT 2.2K OHM 1W CERMET LINEAR Vishay Sfernice |
1,866 |
|
Datasheet |
P16 | Bulk | Active | 2.2k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

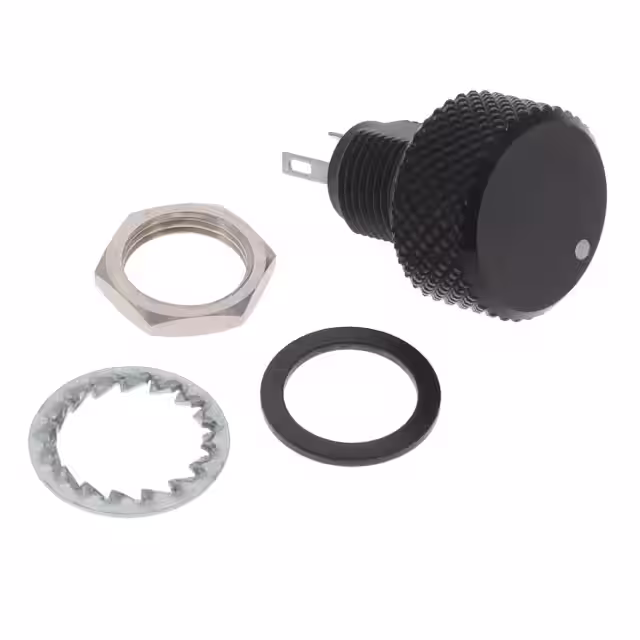

P16NM473MAB15POT 47K OHM 1W CERMET LINEAR Vishay Sfernice |
3,871 |
|
Datasheet |
P16 | Box | Active | 47k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

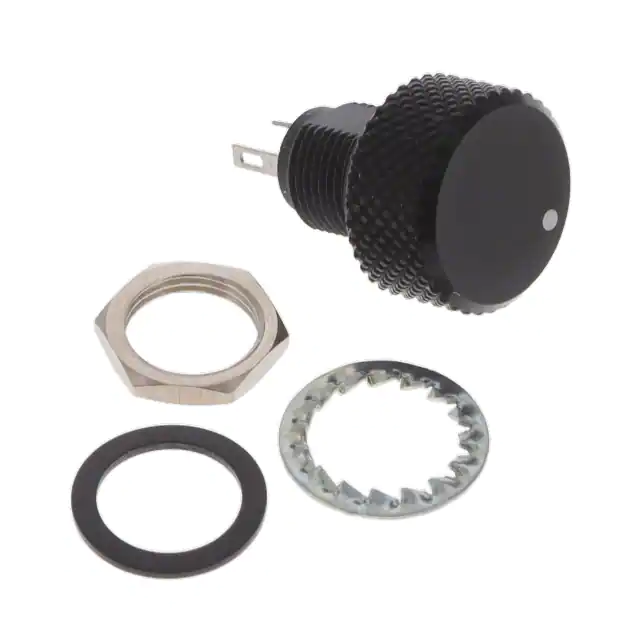

P16NM223MAB15POT 22K OHM 1W CERMET LINEAR Vishay Sfernice |
4,756 |
|
Datasheet |
P16 | Box | Active | 22k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

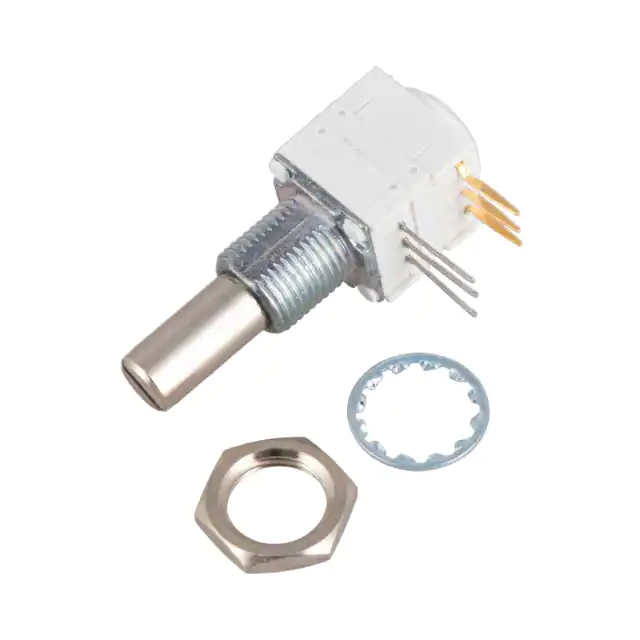

14921F0GJSX13502KAPOT 5K OHM 1W CERMET LINEAR Vishay Spectrol |
4,579 |
|
Datasheet |
149 | Box | Active | 5k | ±10% | 1W | Rotary, SPDT | 1.0 | Sealed | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 1/4-32 | Through Hole |
|
P11H1F0GHFW10472KAPOT 4.7K OHM 1W CERMET LINEAR Vishay Sfernice |
3,200 |
|
Datasheet |
P11H | Box | Active | 4.7k | ±10% | 1W | None | 1.0 | High Torque | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
14821F0GJSX13103KAPOT 10K OHM 1/2W PLASTIC R-LOG Vishay Spectrol |
4,462 |
|
Datasheet |
148 | Box | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Reverse Logarithmic | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.375" (9.53mm) | 0.375" (9.53mm) | 3/8-32 | Through Hole |
|

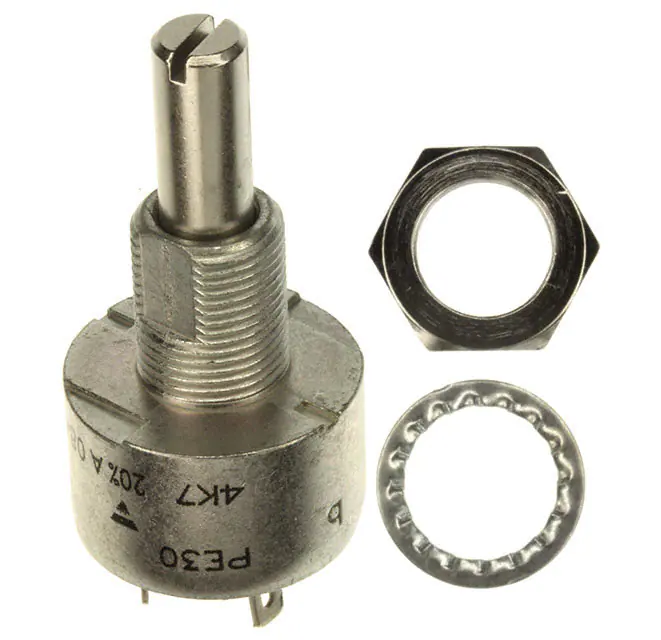

PE30L0FL472MABPOT 4.7K OHM 3W CERMET LINEAR Vishay Sfernice |
1,838 |
|
Datasheet |
PE30 | Bulk | Active | 4.7k | ±20% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
P16NM471MAB15POT 470 OHM 1W CERMET LINEAR Vishay Sfernice |
3,258 |
|
Datasheet |
P16 | Box | Active | 470 | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
PE30L0FG102KABPOT 1K OHM 3W CERMET LINEAR Vishay Sfernice |
2,590 |
|
Datasheet |
PE30 | Bulk | Active | 1k | ±10% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
