Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P11S1A0BGSY00502KLPOT 5K OHM 1/2W CERMET LOG Vishay Sfernice |
2,587 |
|
Datasheet |
P11S | Box | Active | 5k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.125" (3.18mm) | M6 x 0.75 | Panel Mount |
|
P16BP223MAB15POT 22K OHM 1W CERMET LINEAR Vishay Sfernice |
4,199 |
|
Datasheet |
P16 | Box | Active | 22k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16WP104MAB15POT 100K OHM 1W CERMET LINEAR Vishay Sfernice |
1,739 |
|
Datasheet |
P16 | Box | Active | 100k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
P16YP222MAB15POT 2.2K OHM 1W CERMET LINEAR Vishay Sfernice |
4,736 |
|
Datasheet |
P16 | Box | Active | 2.2k | ±20% | 1W | - | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11H1F0GHFY00103JAPOT 10K OHM 1W CERMET LINEAR Vishay Sfernice |
4,895 |
|
Datasheet |
P11H | Box | Active | 10k | ±5% | 1W | None | 1.0 | High Torque | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Flatted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
P16SNM103MAB15POT 10K OHM 1W CERMET LINEAR Vishay Sfernice |
1,524 |
|
Datasheet |
P16S | Box | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
140B00203POT 20K OHM 2W WIREWOUND LINEAR Vishay Spectrol |
3,698 |
|
Datasheet |
140 | Bulk | Active | 20k | ±5% | 2W | None | 1.0 | High Torque | Linear | 1 | User Defined | ±20ppm/°C | 330° | Wirewound | Solder Turret | Slotted | 0.700" (17.78mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
357B2502MAB251S22POT 5K OHM 1W PLASTIC LINEAR Vishay Spectrol |
2,961 |
|
Datasheet |
357 | Bulk | Active | 5k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 340° | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
534B1101JCPOT 100 OHM 2W WIREWOUND LINEAR Vishay Spectrol |
3,218 |
|
Datasheet |
534 | Bulk | Active | 100 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

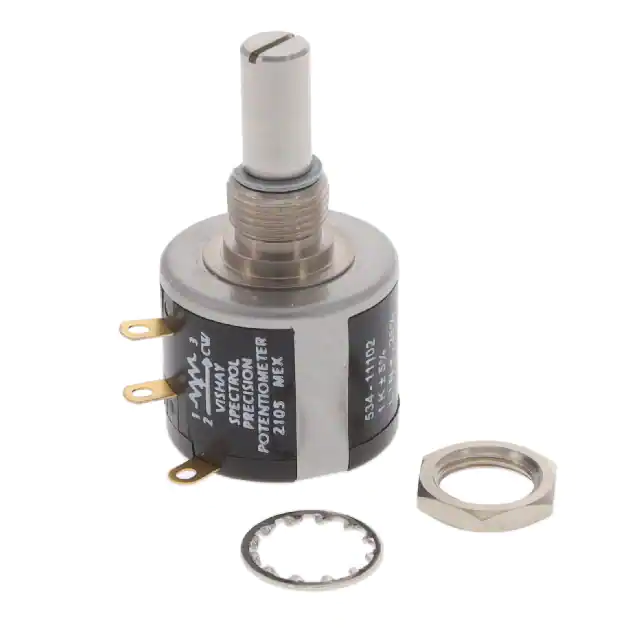

534B1102JCPOT 1K OHM 2W WIREWOUND LINEAR Vishay Spectrol |
1,376 |
|
Datasheet |
534 | Bulk | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
