Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

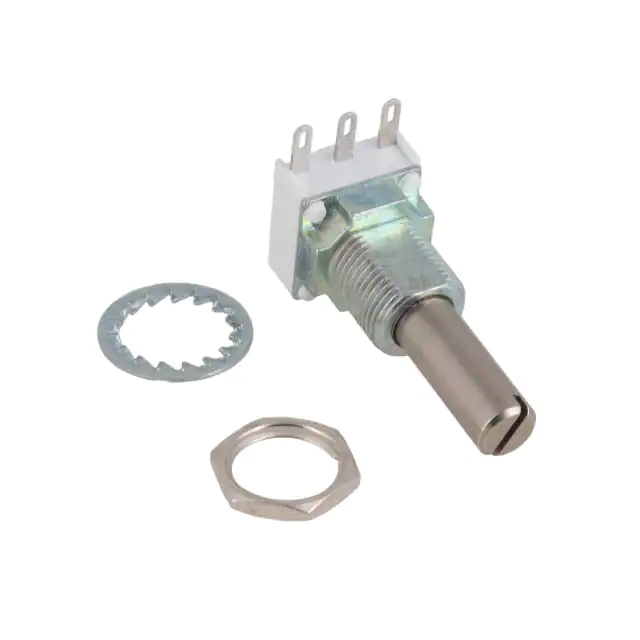

P11S1V0FLSY00504KAPOT 500K OHM 1/4W CERMET LINEAR Vishay Sfernice |
3,094 |
|
Datasheet |
P11S | Box | Active | 500k | ±10% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|

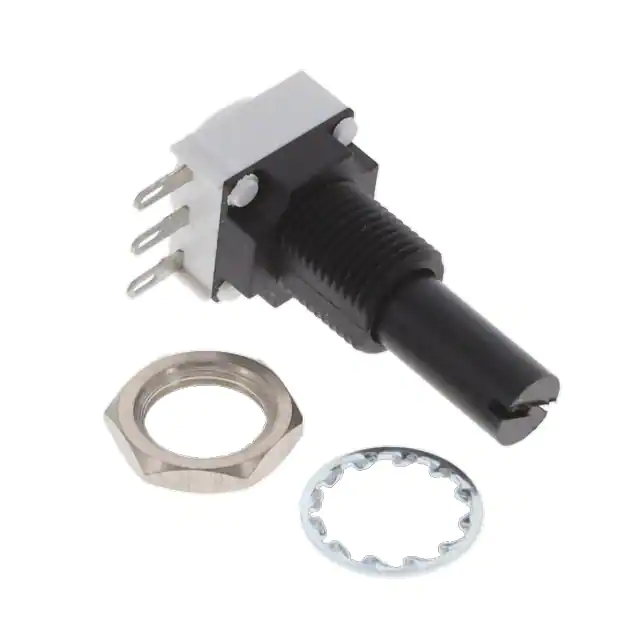

P11P1F0GJSY00103KAPOT 10K OHM 1W CERMET LINEAR Vishay Sfernice |
3,504 |
|
Datasheet |
P11P | Box | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

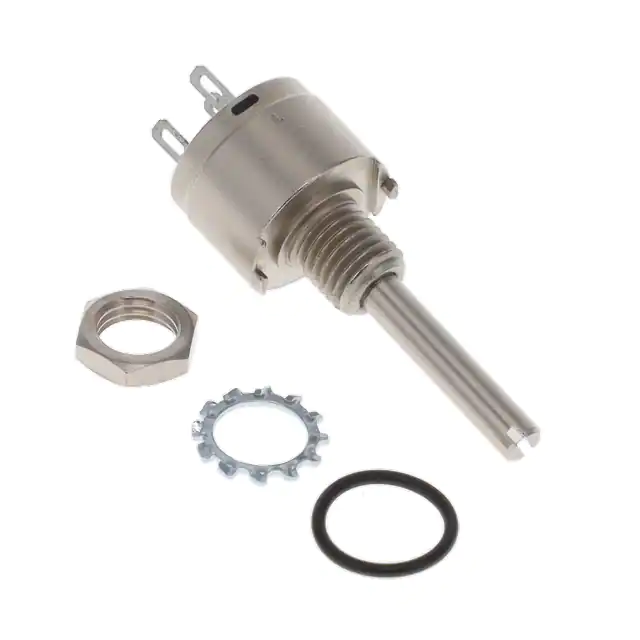

PRV6SAABJYB25503KLPOT 50K OHM 1.5W CERMET LOG Vishay Sfernice |
3,239 |
|
Datasheet |
PRV6 | Box | Active | 50k | ±10% | 1.5W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
14910F0GJSX10254KAPOT 250K OHM 1W CERMET LINEAR Vishay Spectrol |
4,686 |
|
Datasheet |
149 | Box | Active | 250k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|

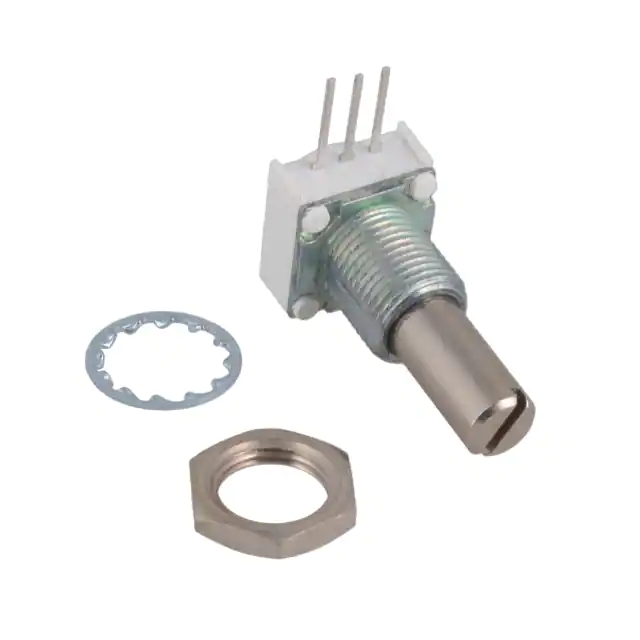

14910F0GJSX10104KAPOT 100K OHM 1W CERMET LINEAR Vishay Spectrol |
2,912 |
|
Datasheet |
149 | Box | Active | 100k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|

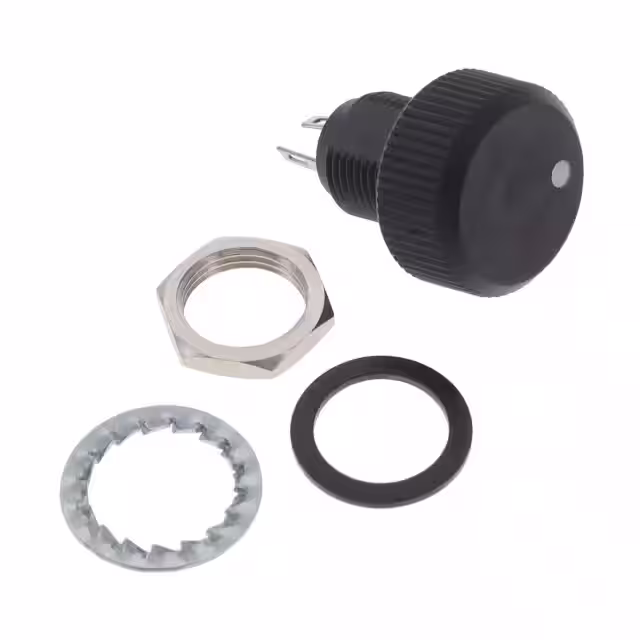

P16NP102KAB15POT 1K OHM 1W CERMET LINEAR Vishay Sfernice |
3,336 |
|
Datasheet |
P16 | Box | Active | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
P16SNP472MAB15POT 4.7K OHM 1W CERMET LINEAR Vishay Sfernice |
4,007 |
|
Datasheet |
P16S | Box | Active | 4.7k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

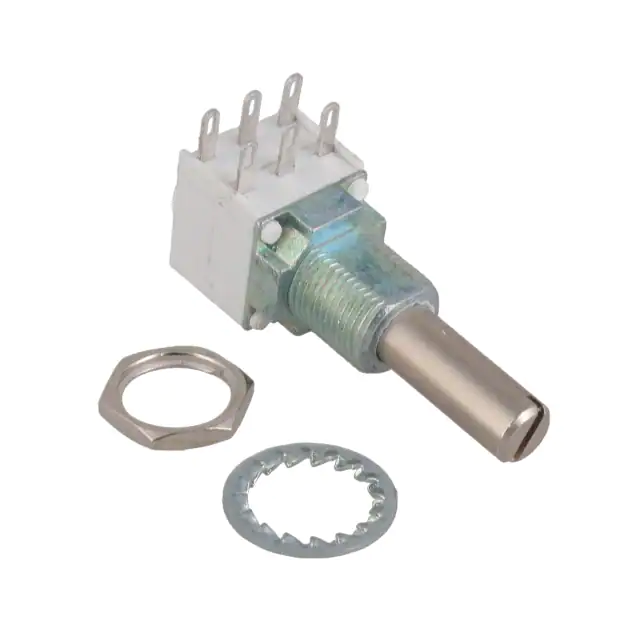

P11L2V0FLSY00102KAPOT 1K OHM 1/10W CERMET LINEAR Vishay Sfernice |
4,428 |
|
Datasheet |
P11L | Box | Active | 1k | ±10% | 0.1W, 1/10W | None | 1.0 | Long Life | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

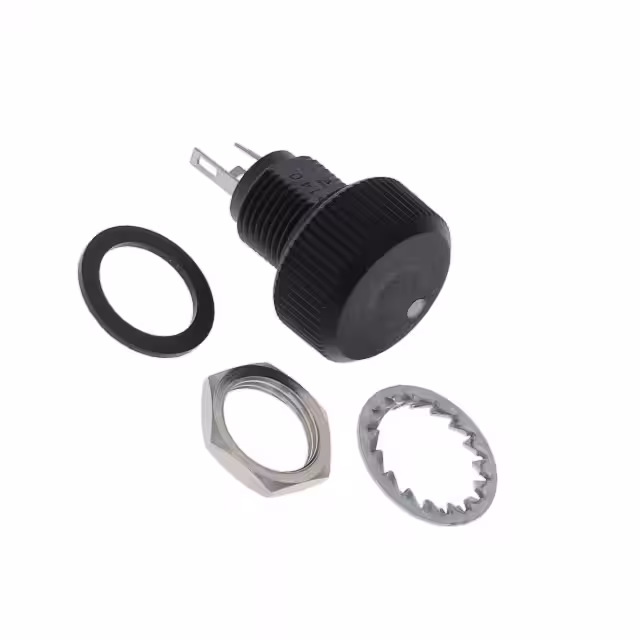

PA16NP472MAB15POT 4.7K OHM 1/2W PLASTIC LINEAR Vishay Sfernice |
1,117 |
|
Datasheet |
PA16 | Box | Active | 4.7k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Knob | 0.610" (15.50mm) | 0.315" (8.00mm) | M10 x 0.75 | Panel Mount |
|

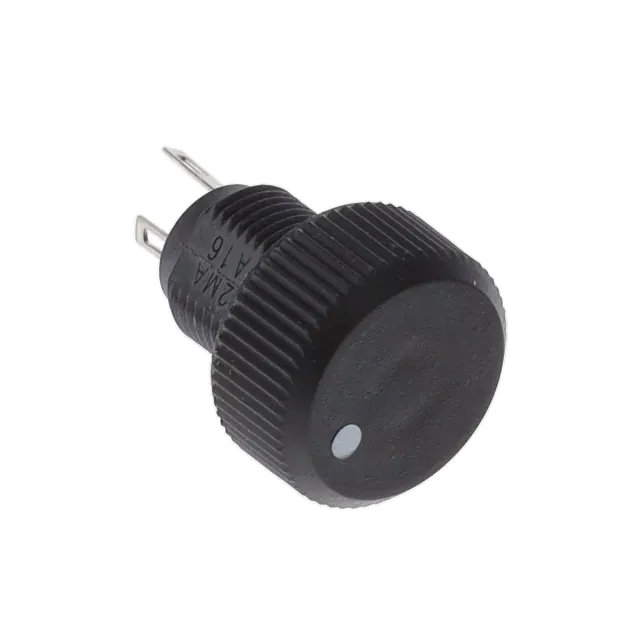

PA16NP222MAB15POT 2.2K OHM 1/2W PLASTIC LINEAR Vishay Sfernice |
3,301 |
|
Datasheet |
PA16 | Box | Active | 2.2k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Knob | 0.610" (15.50mm) | 0.315" (8.00mm) | M10 x 0.75 | Panel Mount |
