Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

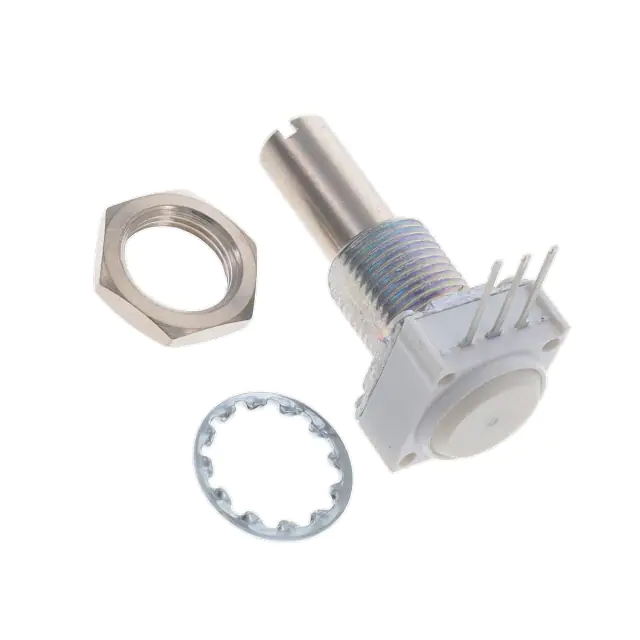

249FGJS0XB25102KAPOT 1K OHM 1W CERMET LINEAR Vishay Spectrol |
2,127 |
|
Datasheet |
249 | Box | Active | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

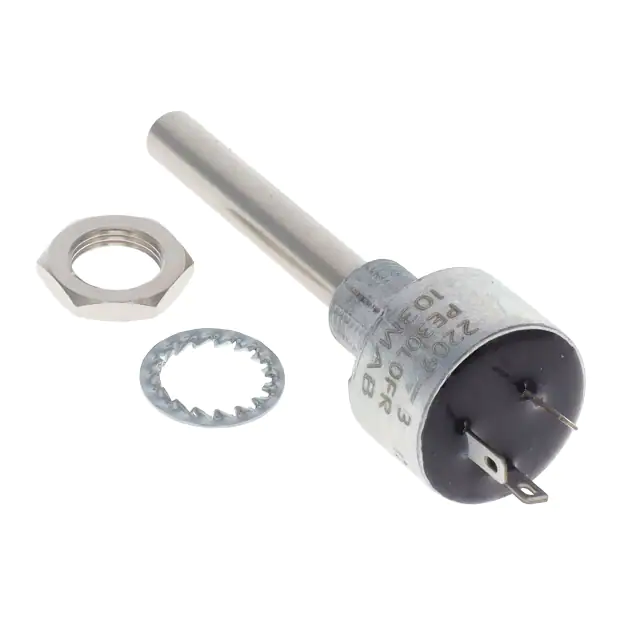

PE30L0FR103MABPOT 10K OHM 3W CERMET LINEAR Vishay Sfernice |
1,489 |
|
Datasheet |
PE30 | Box | Active | 10k | ±20% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

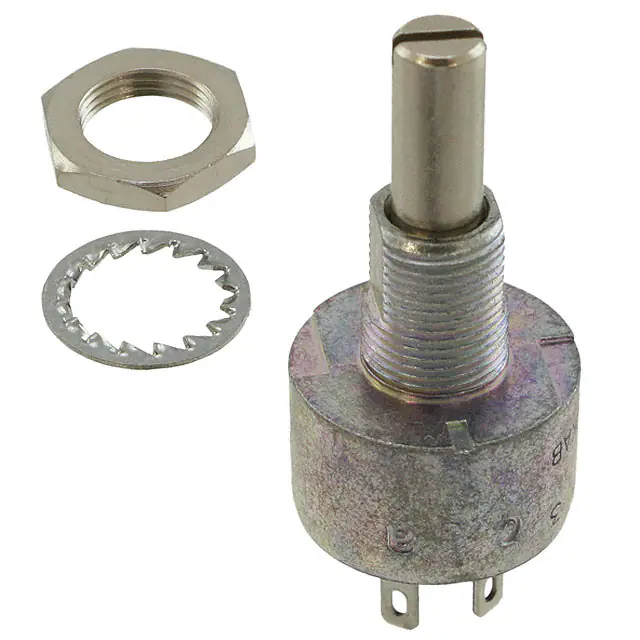

PE30L0FL472KABPOT 4.7K OHM 3W CERMET LINEAR Vishay Sfernice |
4,065 |
|
Datasheet |
PE30 | Bulk | Active | 4.7k | ±10% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

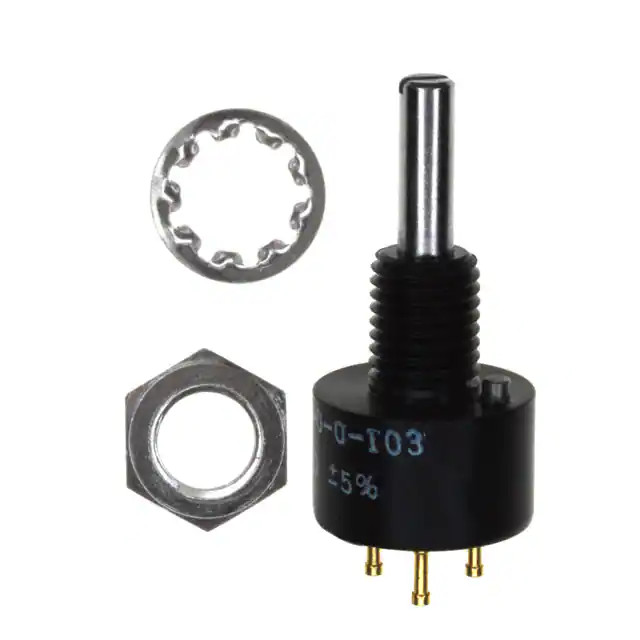

140B00103POT 10K OHM 2W WIREWOUND LINEAR Vishay Spectrol |
1,095 |
|
Datasheet |
140 | Bulk | Active | 10k | ±5% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 330° | Wirewound | Solder Turret | Slotted | 0.700" (17.78mm) | 0.1248" (3.17mm) | 1/4-32 | Panel Mount |
|
830B1103POT 10K OHM 3W WIREWOUND LINEAR Vishay Spectrol |
1,282 |
|
Datasheet |
830 | Box | Active | 10k | ±3% | 3W | None | 3.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 1080° | Wirewound | Solder Lug | Round | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
PRV6SAABJYB25103KAPOT 10K OHM 1.5W CERMET LINEAR Vishay Sfernice |
4,635 |
|
Datasheet |
PRV6 | Box | Active | 10k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.125" (3.18mm) | - | Panel Mount |
.jpg)
|
P11S1V0FLSY00103KAPOT 10K OHM 1W CERMET LINEAR Vishay Sfernice |
1,665 |
|
Datasheet |
P11S | Box | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

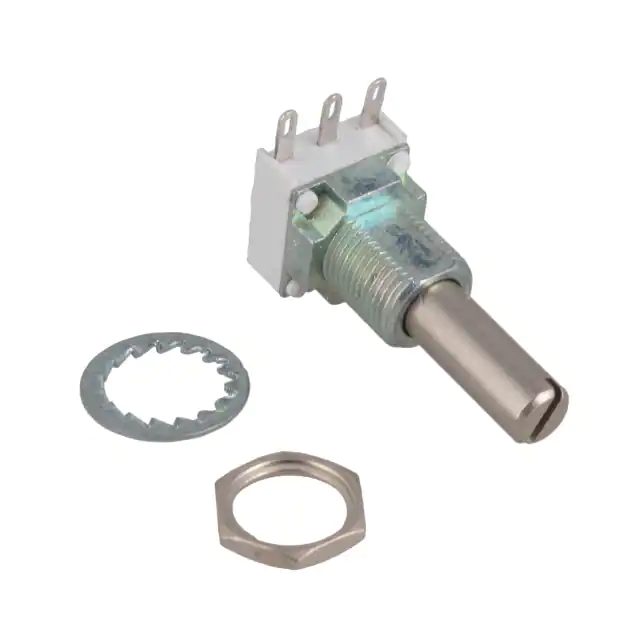

P11S1V0FLSY00105KAPOT 1M OHM 0.12W CERMET LINEAR Vishay Sfernice |
1,420 |
|
Datasheet |
P11S | Box | Active | 1M | ±10% | 0.12W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|

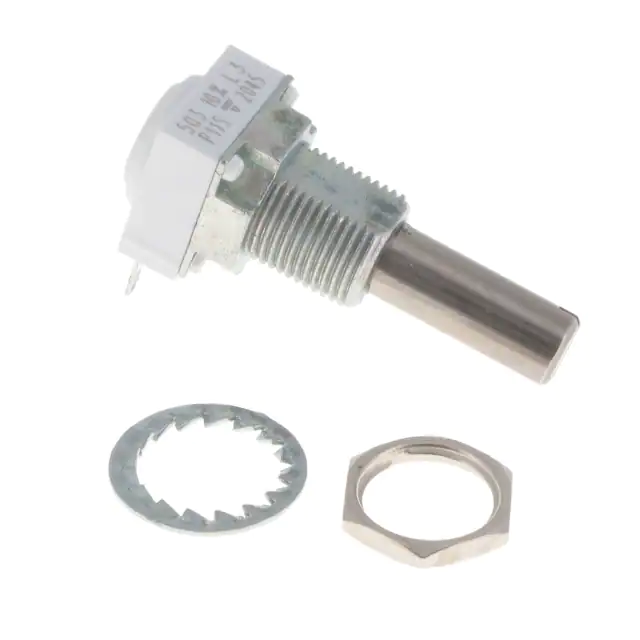

P11S1V0FLSY00503KLPOT 50K OHM 1/2W CERMET LOG Vishay Sfernice |
2,545 |
|
Datasheet |
P11S | Box | Active | 50k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|

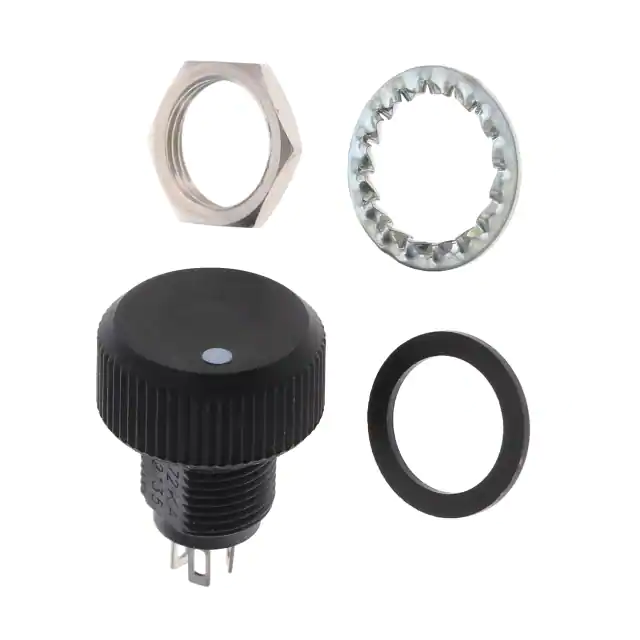

P16NP472KAB15POT 4.7K OHM 1W CERMET LINEAR Vishay Sfernice |
4,273 |
|
Datasheet |
P16 | Box | Active | 4.7k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
