Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

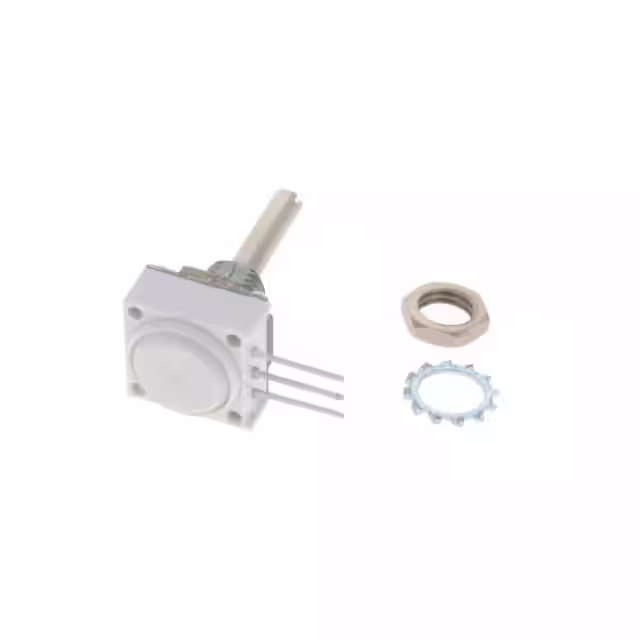

14810A0BHSX10502KAPOT 5K OHM 1/2W PLASTIC LINEAR Vishay Spectrol |
3,573 |
|
Datasheet |
148 | Box | Active | 5k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
14910F0GJSX10504KAPOT 500K OHM 1W CERMET LINEAR Vishay Spectrol |
3,403 |
|
Datasheet |
149 | Box | Active | 500k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|

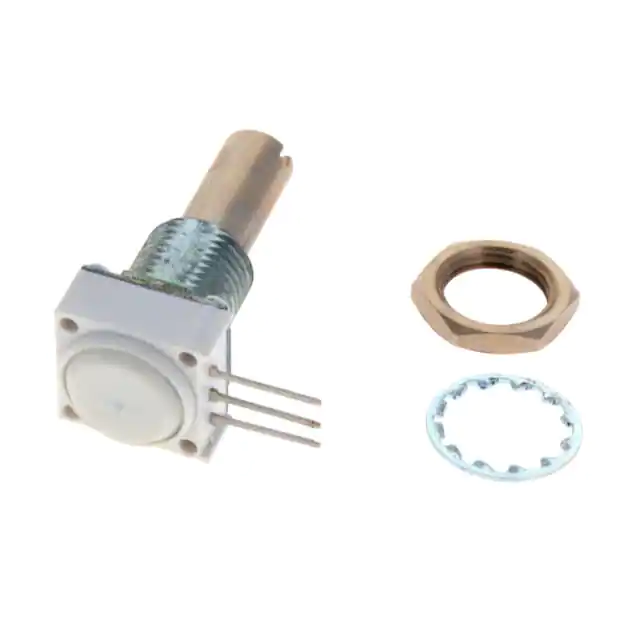

14910F0GJSX10252KAPOT 2.5K OHM 1W CERMET LINEAR Vishay Spectrol |
4,544 |
|
Datasheet |
149 | Box | Active | 2.5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|

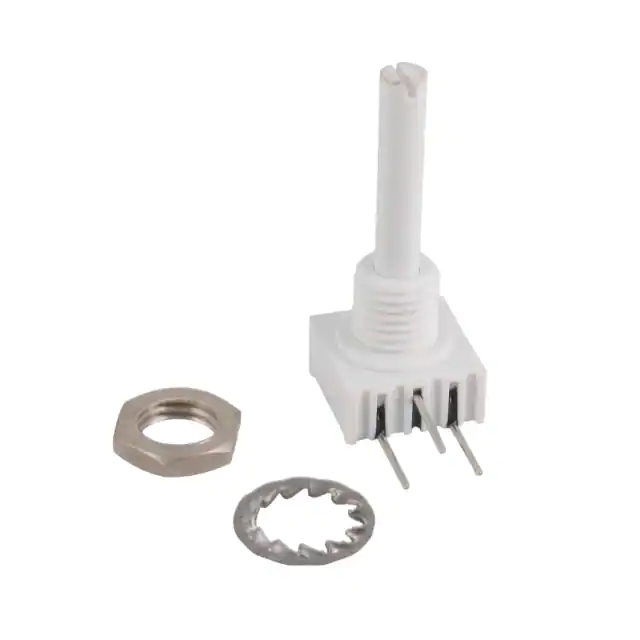

P10XXAI204KB30POT 200K OHM 0.28W CERMET LINEAR Vishay Sfernice |
2,931 |
|
Datasheet |
P10 | Box | Active | 200k | ±10% | 0.28W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.787" (20.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|

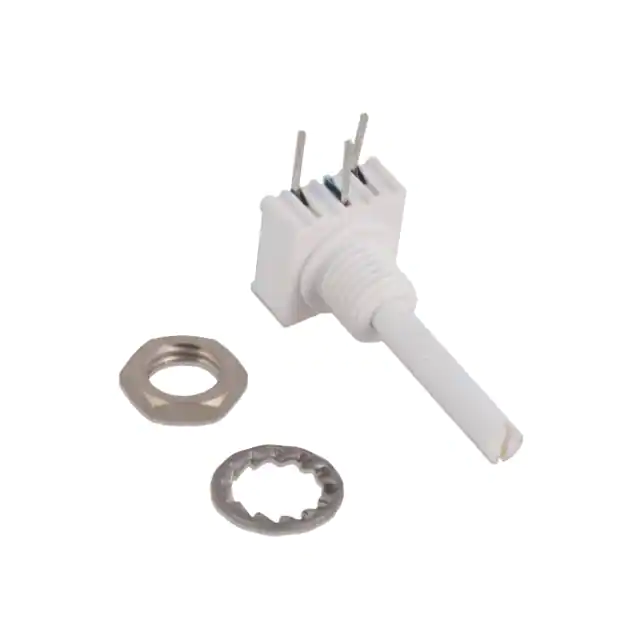

P10XXAI102KB30POT 1K OHM 1/2W CERMET LINEAR Vishay Sfernice |
3,117 |
|
Datasheet |
P10 | Box | Active | 1k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.787" (20.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|

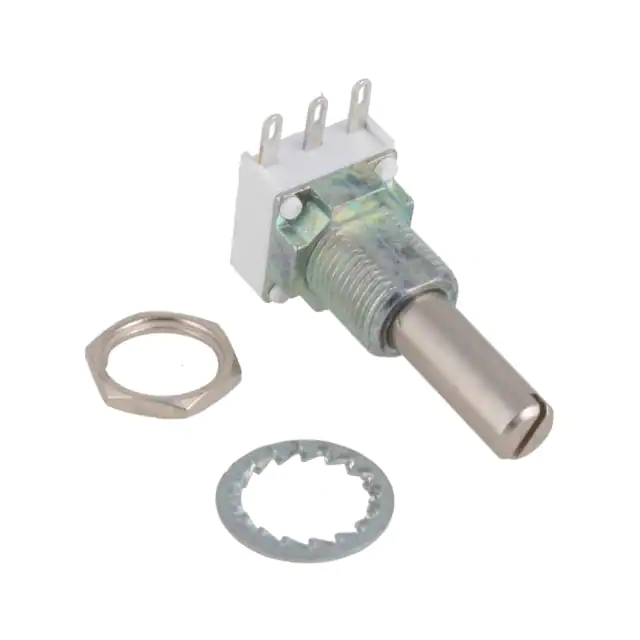

P11S1V0FLSY00102KLPOT 1K OHM 1/2W CERMET LOG Vishay Sfernice |
1,791 |
|
Datasheet |
P11S | Box | Active | 1k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
249FGJSPXB25103KAPOT 10K OHM 1W CERMET LINEAR Vishay Spectrol |
2,605 |
|
Datasheet |
249 | Box | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8 | Through Hole |
|
|
249BBHS0XB25252KAPOT 2.5K OHM 1W CERMET LINEAR Vishay Spectrol |
2,653 |
|
Datasheet |
249 | Box | Active | 2.5k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
P13SMNFLS472MAPOT 4.7K OHM 1.5W CERMET LINEAR Vishay Sfernice |
4,450 |
|
Datasheet |
P13SM | Bulk | Active | 4.7k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

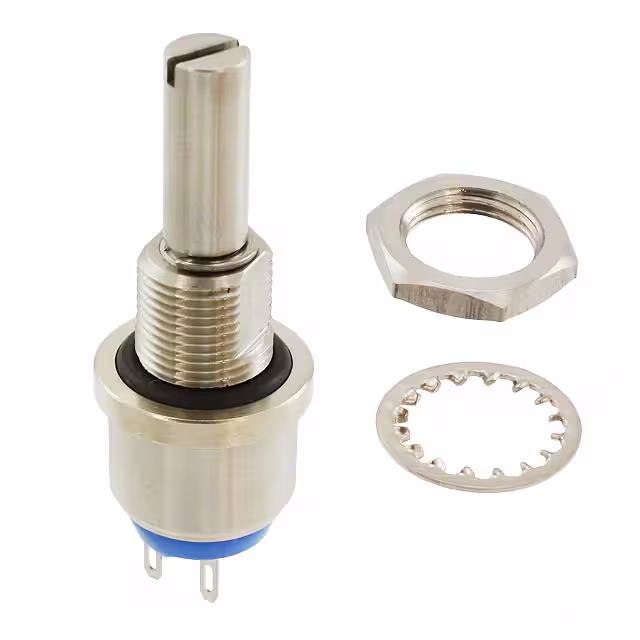

P13SMNFLS103MAPOT 10K OHM 1.5W CERMET LINEAR Vishay Sfernice |
1,294 |
|
Datasheet |
P13SM | Bulk | Active | 10k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
