Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4602-RCFIXED IND 1UH 2A 50 MOHM TH Bourns Inc. |
2,436 |
|
Datasheet |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | 1 µH | ±20% | 2 A | - | Unshielded | 50mOhm Max | 60 @ 7.96MHz | 190MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|

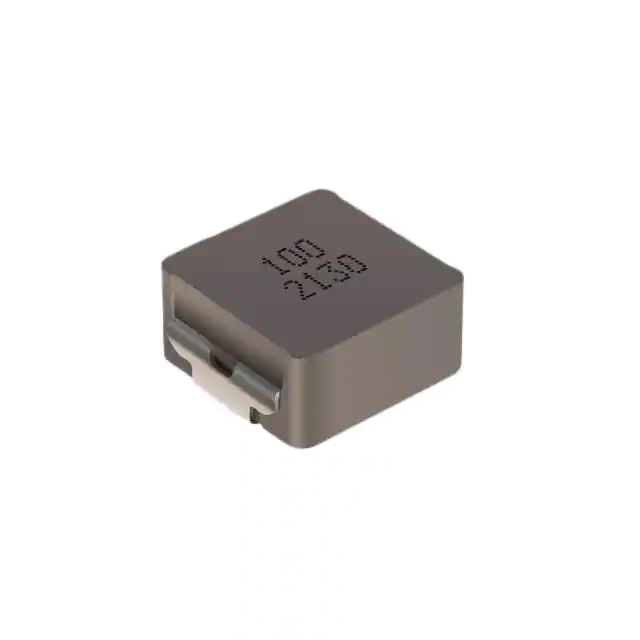

SRP1265WA-100MIND,13.6X12.6X6.2MM,10UH20%,12A, Bourns Inc. |
153 |
|
Datasheet |
SRP1265WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 12 A | 13.5A | Shielded | 16.5mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.256" (6.50mm) |
|

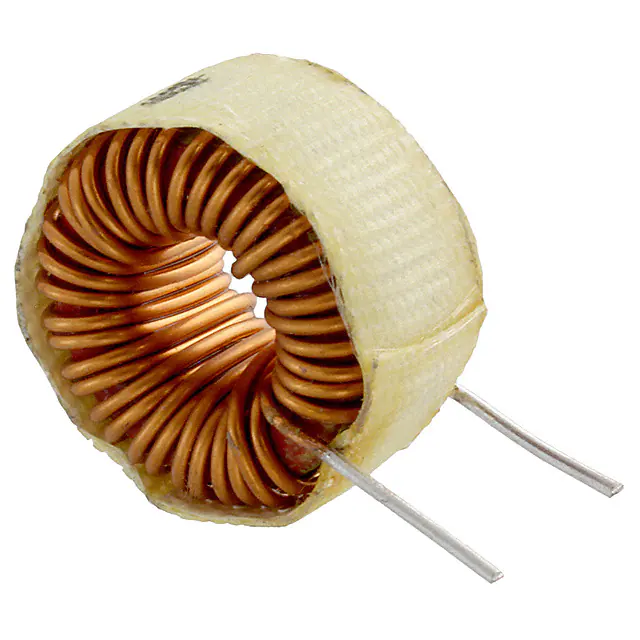

2000-470-V-RCFIXED IND 47UH 3.2A 64 MOHM TH Bourns Inc. |
590 |
|
Datasheet |
2000 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 47 µH | ±15% | 3.2 A | - | Unshielded | 64mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
|

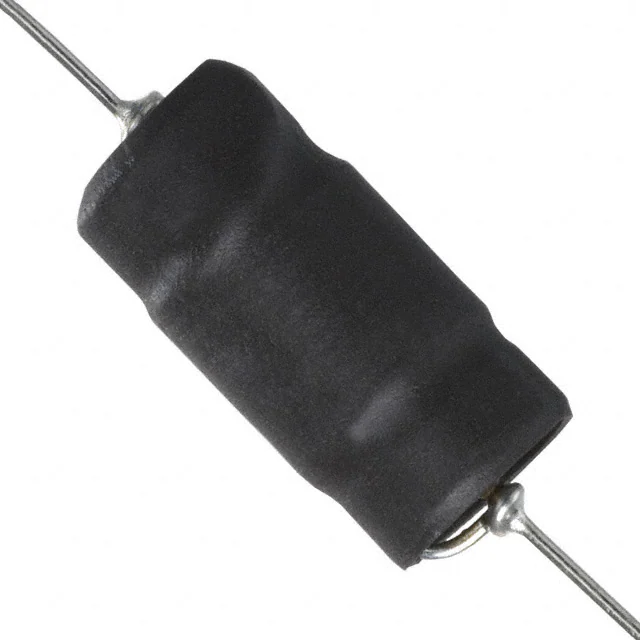

5900-101-RCFIXED IND 100UH 2.2A 86 MOHM TH Bourns Inc. |
1,808 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.2 A | 2.7A | Unshielded | 86mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-331-RCFIXED IND 330UH 1.2A 285 MOHM TH Bourns Inc. |
1,786 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.2 A | 1.4A | Unshielded | 285mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-104-RCFIXED IND 100MH 70MA 82 OHM TH Bourns Inc. |
1,176 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 70 mA | 83mA | Unshielded | 82Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-472-RCFIXED IND 4.7MH 340MA 3.7 OHM TH Bourns Inc. |
785 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 340 mA | 380mA | Unshielded | 3.7Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
2124-H-RCFIXED IND 1MH 1.3A 400 MOHM TH Bourns Inc. |
17,988 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 1 mH | ±15% | 1.3 A | - | Unshielded | 400mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
2112-V-RCFIXED IND 100UH 2.4A 130 MOHM TH Bourns Inc. |
971 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 100 µH | ±15% | 2.4 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2101-H-RCFIXED IND 10UH 10.8A 6 MOHM TH Bourns Inc. |
516 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 10 µH | ±15% | 10.8 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
