Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1250-9R0MFIXED IND 9UH 10A 22.5 MOHM SMD Bourns Inc. |
1,007 |
|
Datasheet |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 9 µH | ±20% | 10 A | 18A | Shielded | 22.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
5240-RCFIXED IND 40UH 3A 82 MOHM TH Bourns Inc. |
5,311 |
|
Datasheet |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 40 µH | ±20% | 3 A | - | Unshielded | 82mOhm Max | - | 145MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.310" Dia x 1.250" L (7.87mm x 31.75mm) | - |
|
8250-183K-RCFIXED IND 18MH 48MA 104 OHM TH Bourns Inc. |
978 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 48 mA | 10mA | Shielded | 104Ohm Max | 50 @ 79kHz | 720kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|

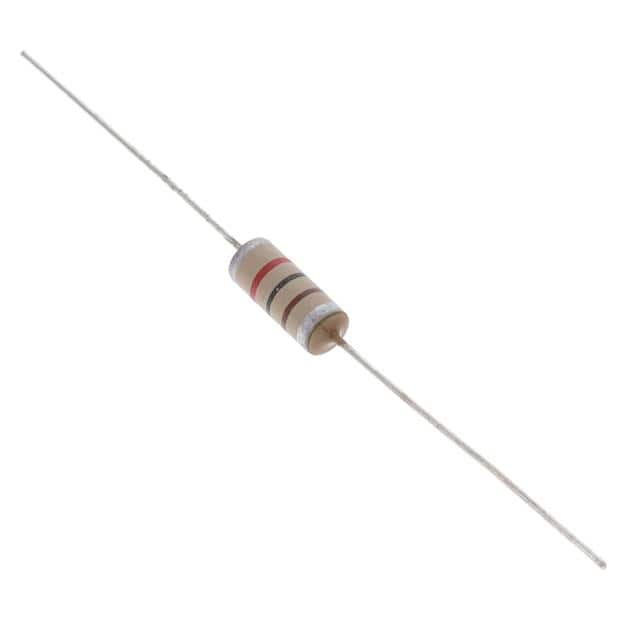

8250-102K-RCFIXED IND 1MH 139MA 12.1 OHM TH Bourns Inc. |
866 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 139 mA | 40mA | Shielded | 12.1Ohm Max | 65 @ 790kHz | 4.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
8250-104K-RCFIXED IND 100MH 22MA 484 OHM TH Bourns Inc. |
663 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 22 mA | 3mA | Shielded | 484Ohm Max | 50 @ 79kHz | 320kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
8250-103K-RCFIXED IND 10MH 50MA 93.1 OHM TH Bourns Inc. |
526 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 50 mA | 14mA | Shielded | 93.1Ohm Max | 70 @ 250kHz | 1.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
SRP1265CC-4R7MIND SMD 4.7UH 20A Bourns Inc. |
171 |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 20 A | 31A | Shielded | 9.5mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|

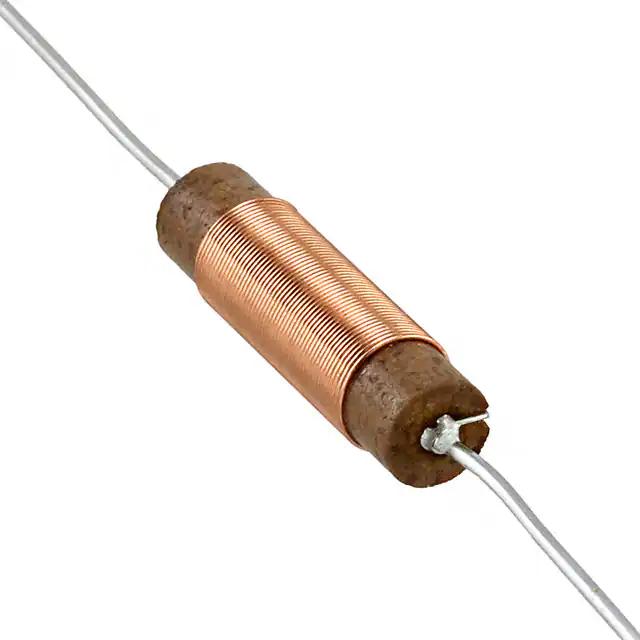

4612-RCFIXED IND 10UH 500MA 1.5 OHM TH Bourns Inc. |
1,777 |
|
Datasheet |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | 10 µH | ±10% | 500 mA | - | Unshielded | 1.5Ohm Max | 36 @ 2.52MHz | 61MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|
SRP6030CA-2R2MFIXED IND 2.2UH 10A 12.2MOHM SMD Bourns Inc. |
3,938 |
|
Datasheet |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 10 A | 15.9A | Shielded | 12.2mOhm Max | - | 29MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
|
SRP6030CA-R33MFIXED IND 330NH 25A 2.5 MOHM SMD Bourns Inc. |
2,055 |
|
Datasheet |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 25 A | 32A | Shielded | 2.5mOhm Max | - | 78MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
