Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9250A-821-RCFIXED IND 820NH 370MA 590MOHM TH Bourns Inc. |
664 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 820 nH | ±10% | 370 mA | 370mA | Shielded | 590mOhm Max | 50 @ 25MHz | 180MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

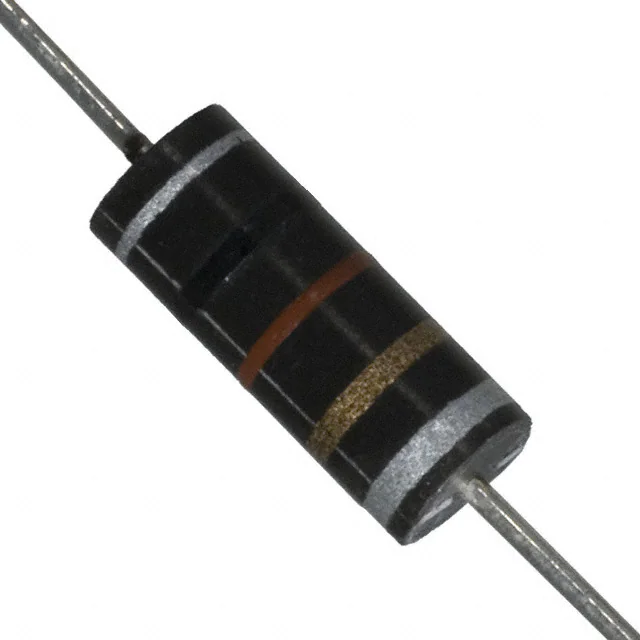

9250A-101-RCFIXED IND 100NH 1.79A 25 MOHM TH Bourns Inc. |
372 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 100 nH | ±10% | 1.79 A | 1.79A | Shielded | 25mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

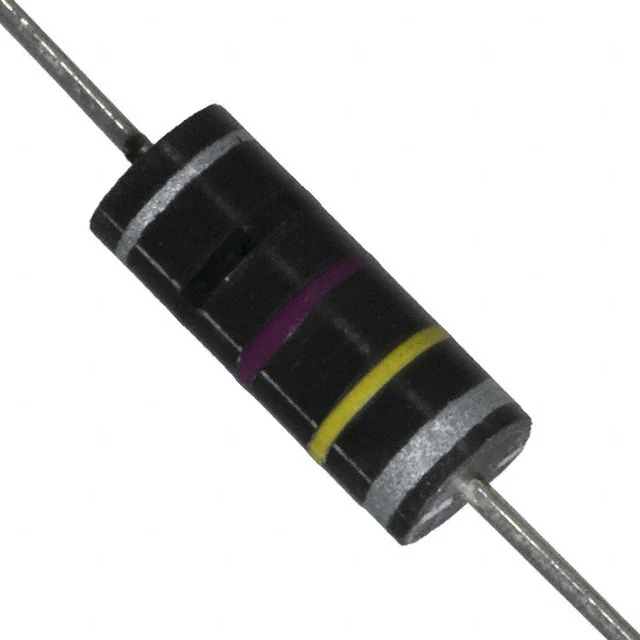

9250A-473-RCFIXED IND 47UH 195MA 2.11 OHM TH Bourns Inc. |
356 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 47 µH | ±10% | 195 mA | 175mA | Shielded | 2.11Ohm Max | 50 @ 2.5MHz | 27MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

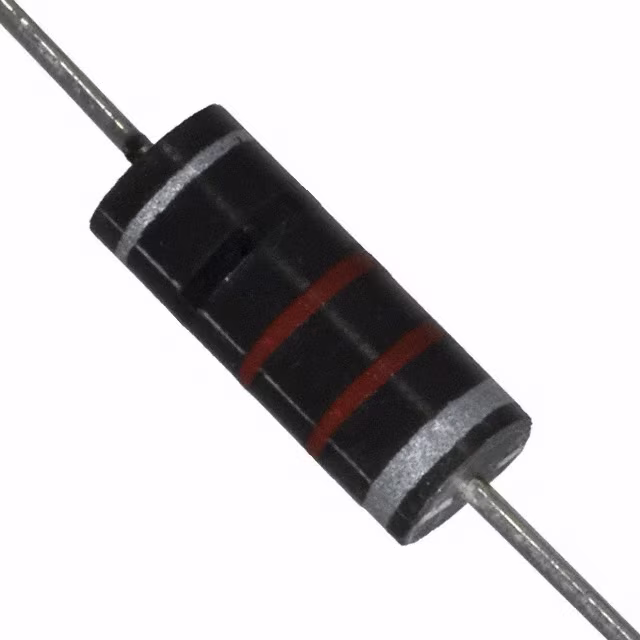

9250A-223-RCFIXED IND 22UH 290MA 960 MOHM TH Bourns Inc. |
288 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 22 µH | ±10% | 290 mA | 220mA | Shielded | 960mOhm Max | 45 @ 2.5MHz | 41MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
5256-RCFIXED IND 500UH 2A 260 MOHM TH Bourns Inc. |
1,120 |
|
Datasheet |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±20% | 2 A | - | Unshielded | 260mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
|
|
5258-RCFIXED IND 1MH 1A 550 MOHM TH Bourns Inc. |
7,603 |
|
Datasheet |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 1 A | - | Unshielded | 550mOhm Max | - | 650kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
|
|
5230-RCFIXED IND 4UH 8A 12 MOHM TH Bourns Inc. |
4,505 |
|
Datasheet |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4 µH | ±20% | 8 A | - | Unshielded | 12mOhm Max | - | 165MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.380" Dia x 0.875" L (9.65mm x 22.23mm) | - |
|
|
5254-RCFIXED IND 250UH 2.5A 170 MOHM TH Bourns Inc. |
3,947 |
|
Datasheet |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±20% | 2.5 A | - | Unshielded | 170mOhm Max | - | 1.3MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.440" Dia x 1.250" L (11.18mm x 31.75mm) | - |
|
4606-RCFIXED IND 2.4UH 1.5A 190 MOHM TH Bourns Inc. |
3,964 |
|
Datasheet |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | 2.4 µH | ±10% | 1.5 A | - | Unshielded | 190mOhm Max | 56 @ 7.96MHz | 120MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|
|
5252-RCFIXED IND 125UH 3.5A 80 MOHM TH Bourns Inc. |
4,528 |
|
Datasheet |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 125 µH | ±20% | 3.5 A | - | Unshielded | 80mOhm Max | - | 2.25MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
