Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ2614BHA-150KFIXED IND 15UH 30A 1.9 MOHM SMD Bourns Inc. |
744 |
|
Datasheet |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 30 A | 14A | Shielded | 1.9mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BHA-220KFIXED IND 22UH 30A 1.9 MOHM SMD Bourns Inc. |
161 |
|
Datasheet |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 30 A | 8.6A | Shielded | 1.9mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
2200HT-221-V-RCFIXED IND 220UH 4.3A 91 MOHM TH Bourns Inc. |
161 |
|
Datasheet |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 4.3 A | - | Shielded | 91mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
2200HT-101-H-RCFIXED IND 100UH 5.3A 61 MOHM TH Bourns Inc. |
128 |
|
Datasheet |
2200HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±15% | 5.3 A | - | Shielded | 61mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
2200LL-101-H-RCFIXED IND 100UH 6.8A 27 MOHM TH Bourns Inc. |
4,333 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 100 µH | ±15% | 6.8 A | - | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|

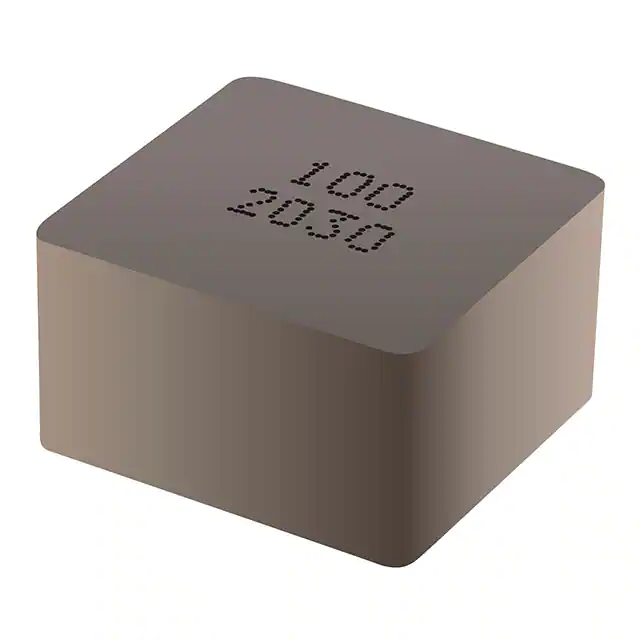

SRP1510CA-4R7MIND,16.5X15.5X9.7MM,4.7UH20%,30A Bourns Inc. |
586 |
|
Datasheet |
SRP1510CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 30 A | 43A | Shielded | 3.8mOhm Max | 30 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
SRP1510CA-330MIND,16.5X15.5X9.7MM,33UH20%,13A, Bourns Inc. |
342 |
|
Datasheet |
SRP1510CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 33 µH | ±20% | 13 A | 18.7A | Shielded | 20mOhm Max | 30 @ 100kHz | 4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
SRP1510CA-150MIND,16.5X15.5X9.7MM,15UH20%,18A, Bourns Inc. |
162 |
|
Datasheet |
SRP1510CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 15 µH | ±20% | 18 A | 23A | Shielded | 11.5mOhm Max | 30 @ 100kHz | 6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
2100HT-102-H-RCFIXED IND 1MH 1.6A 430 MOHM TH Bourns Inc. |
682 |
|
Datasheet |
2100HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 1 mH | ±15% | 1.6 A | - | Shielded | 430mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2100HT-221-V-RCFIXED IND 220UH 3A 130 MOHM TH Bourns Inc. |
480 |
|
Datasheet |
2100HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 220 µH | ±15% | 3 A | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
