Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6060FA-100MFIXED IND 10UH 7A 29.3 MOHM SMD Bourns Inc. |
2,692 |
|
Datasheet |
SRP6060FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 7 A | 7.6A | Shielded | 29.3mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.236" (6.00mm) |
|
SRP7030CA-4R7MFIXED IND 4.7UH 9A 0.0267OHM SMD Bourns Inc. |
2,929 |
|
Datasheet |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 9 A | 13.5A | Shielded | 26.7mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
|
SRP7030CA-2R2MFIXED IND 2.2UH 13A 0.0137OHM SM Bourns Inc. |
1,500 |
|
Datasheet |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 2.2 µH | ±20% | 13 A | 19A | Shielded | 13.7mOhm Max | - | 38MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
|
SRP7030CA-3R3MFIXED IND 3.3UH 10A 0.018OHM SMD Bourns Inc. |
160 |
|
Datasheet |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 3.3 µH | ±20% | 10 A | 15A | Shielded | 18mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
|
SRP7030CA-5R6MFIXED IND 5.6UH 7.3A 0.0332OHM Bourns Inc. |
122 |
|
Datasheet |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 5.6 µH | ±20% | 7.3 A | 12.5A | Shielded | 33.2mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
9250A-105-RCFIXED IND 1MH 70MA 17.5 OHM TH Bourns Inc. |
2,873 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 1 mH | ±10% | 70 mA | 40mA | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

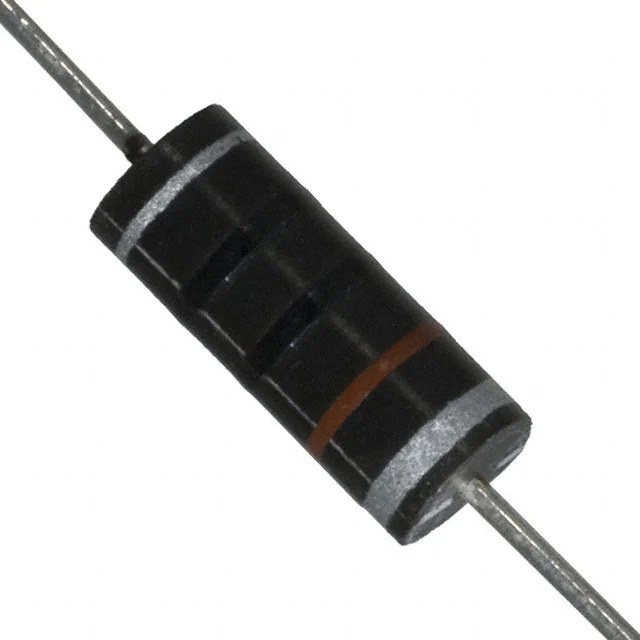

9250A-103-RCFIXED IND 10UH 220MA 1.62 OHM TH Bourns Inc. |
1,708 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 10 µH | ±10% | 220 mA | 220mA | Shielded | 1.62Ohm Max | 50 @ 7.9MHz | 46MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-102-RCFIXED IND 1UH 1.07A 70 MOHM TH Bourns Inc. |
1,267 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 1 µH | ±10% | 1.07 A | 1.07A | Shielded | 70mOhm Max | 40 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

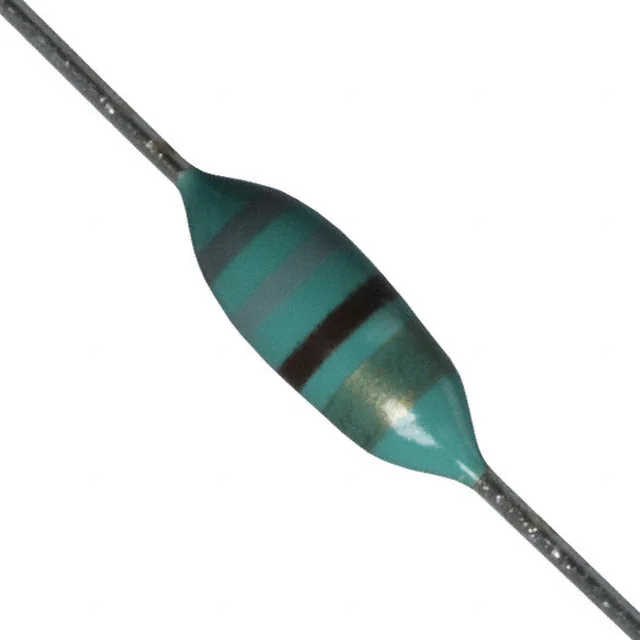

8230-02-RCFIXED IND 180NH 1.01A 120MOHM TH Bourns Inc. |
936 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 180 nH | ±10% | 1.01 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

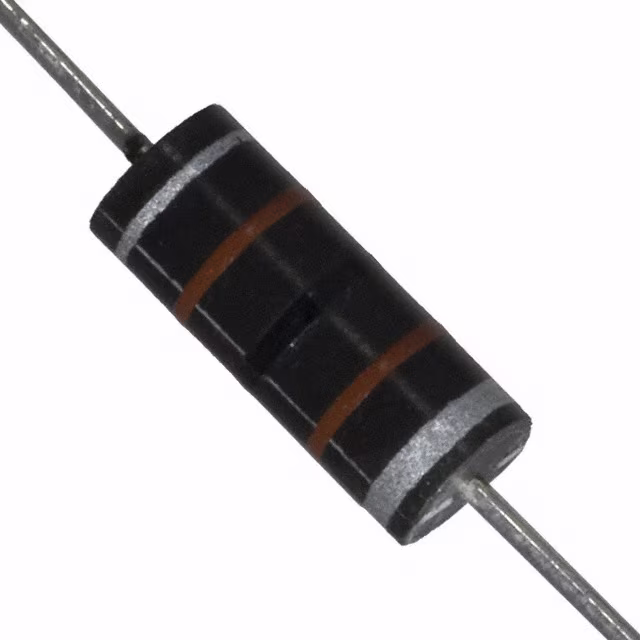

9250A-104-RCFIXED IND 100UH 160MA 3.12OHM TH Bourns Inc. |
861 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 100 µH | ±10% | 160 mA | 120mA | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
