Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1251-240S-N1SPD TYPE 1 150VAC MCOV 1 POLE |
9,943 |
|
Datasheet |
1251 | Bag | Active | Type 1 | Module Only | 1 | 150VAC | 20 kA | 50 kA | 100 kA | 700 V | 1.2 kV | -40°C ~ 85°C | Visual Life Indicator | Surface Mount | - |
|
|
1251-208Y-N1SPD TYPE 1 150VAC MCOV 1 POLE |
5,802 |
|
Datasheet |
1251 | Bag | Active | Type 1 | Module Only | 1 | 150VAC | 20 kA | 50 kA | 100 kA | 700 V | 1.2 kV | -40°C ~ 85°C | Visual Life Indicator | Surface Mount | - |
|
|
1252-208Y-N1SPD TYPE 1 150VAC MCOV 1 POLE |
5,182 |
|
Datasheet |
1251 | Bag | Active | Type 1 | Module Only | 1 | 150VAC | 20 kA | 50 kA | 100 kA | 700 V | 1.2 kV | -40°C ~ 85°C | Visual Life Indicator | Surface Mount | - |
|
|
1251-240S-N2SPD TYPE 1 150VAC MCOV 1 POLE |
6,502 |
|
Datasheet |
1251 | Bag | Active | Type 1 | Module Only | 1 | 150VAC | 20 kA | 50 kA | 100 kA | 700 V | 1.2 kV | -40°C ~ 85°C | Visual Life Indicator | Surface Mount | - |
|
|
1252-240S-N2SPD TYPE 1 150VAC MCOV 1 POLE |
6,967 |
|
Datasheet |
1251 | Bag | Active | Type 1 | Module Only | 1 | 150VAC | 20 kA | 50 kA | 100 kA | 700 V | 1.2 kV | -40°C ~ 85°C | Visual Life Indicator | Surface Mount | - |
|
|
2730660000SPD TYPE 2 350VAC MCOV 2 POLE |
5,329 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 2 | 350VAC | 20 kA | 50 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|

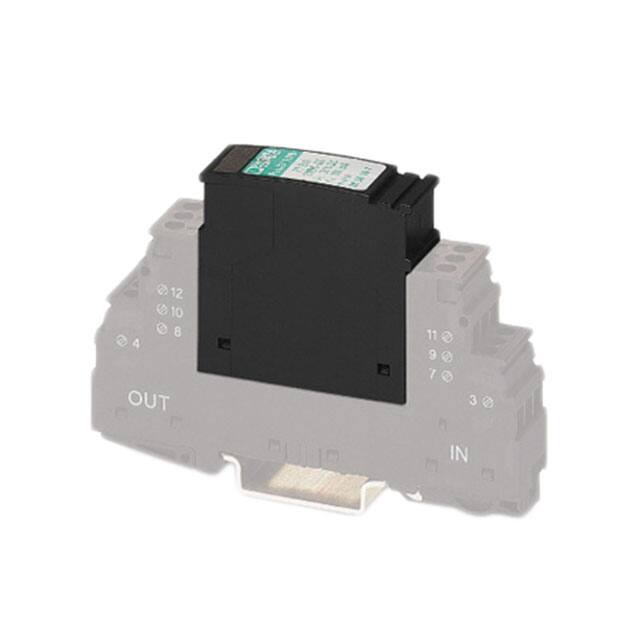

2856074SPD 12VDC MCOV 1 POLE |
3,745 |
|
Datasheet |
- | Bulk | Obsolete | - | Base + Module | 1 | 12VDC | 10 kA | 10 kA | - | - | 65 V | -40°C ~ 85°C | - | DIN Rail | cUL, EAC, UL |
|
DS240S-120/GSPD TYPE 4 255VAC MCOV 1 POLE |
8,740 |
|
- |
- | Active | Type 4 | Base + Module | 1 | 255VAC | - | 40 kA | - | - | - | -35°C ~ 60°C | Remote Signaling Contacts | DIN Rail | CSA, EAC, UR | |
|

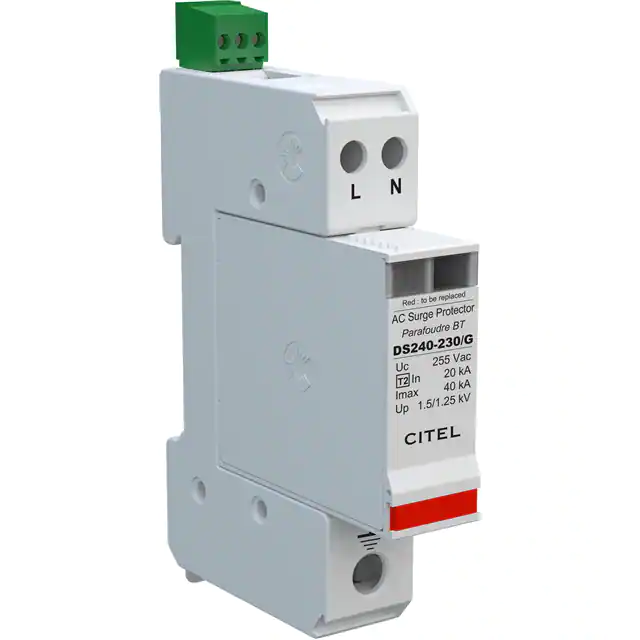

DS240S-230/GSPD TYPE 2 255VAC MCOV 1 POLE |
6,463 |
|
- |
- | Active | Type 2 | Base + Module | 1 | 255VAC | 20 kA | 40 kA | 10 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, CSA, EAC, TUV, UR | |
|
DS240S-400SPD TYPE 2 440VAC MCOV 1 POLE |
4,095 |
|
- |
- | Active | Type 2 | Base + Module | 1 | 440VAC | 20 kA | 80 kA | 10 kA | - | 1.8 kV | -40°C ~ 85°C | - | DIN Rail | CE, CSA, EAC, UR | |
|
|
2801492SPD TYP 1/TYP 2 75VDC MCOV 1POLE |
7,086 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 75VDC | 12.5 kA | 50 kA | - | - | 700 V | -40°C ~ 80°C | - | DIN Rail | - |
|
|
SPD2-550-3P0SPD TYP 1/TYP 2 550V MCOV 3 POLE |
5,144 |
|
Datasheet |
SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 550V | 20 kA | 50 kA | 200 kA | 2 kV | 2.5 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|

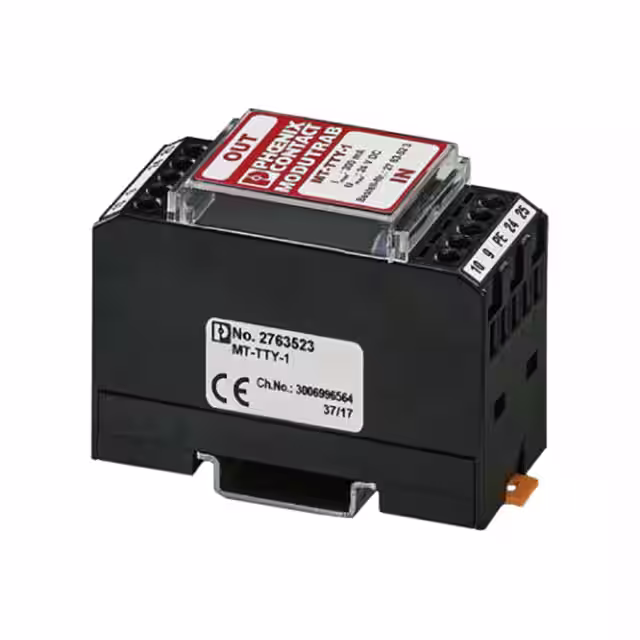

2763523SPD 24VDC MCOV 1 POLE |
2,466 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 24VDC | 5 kA | - | - | - | 450 V | -20°C ~ 60°C | - | DIN Rail | EAC |
|
|
SPD2-150-4P0SPD TYP 1/TYP 2 150V MCOV 4 POLE |
2,897 |
|
Datasheet |
SPD2 4+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 4 | 150V | 20 kA | 50 kA | 200 kA | 600 V | 1.25 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
1260-3S-480SPD 600VAC MCOV 3 POLE |
5,087 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 3 | 600VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-3S-690SPD 750VAC MCOV 3 POLE |
6,744 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 3 | 750VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
SPH50SP3240PNGSPD TYPE 1 |
8,460 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
I2R-T2DC-1500Y-LCSPD TYPE 2 1.5KVDC MCOV 3 POLE |
4,070 |
|
- |
I2R | Bag | Active | Type 2 | Base + Module | 3 | 1.5kVDC | 20 kA | - | 50 kA | 4 kV | - | -20°C ~ 50°C | - | DIN Rail | - |
|
|
I2R-T2DC-1000Y-LCSPD TYPE 2 1.12KVDC MCOV 3 POLE |
8,972 |
|
- |
I2R | Bag | Active | Type 2 | Base + Module | 3 | 1.12kVDC | 20 kA | - | 50 kA | 2.5 kV | - | -20°C ~ 50°C | - | DIN Rail | - |
|
|
I2R-T2DC-1200Y-LCSPD TYPE 2 1.34KVDC MCOV 3 POLE |
6,647 |
|
- |
I2R | Bag | Active | Type 2 | Base + Module | 3 | 1.34kVDC | 20 kA | - | 50 kA | 3 kV | - | -20°C ~ 50°C | - | DIN Rail | - |
