Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BPMA510ULSPD TYPE 2 1.02KV MCOV 4 POLE |
9,290 |
|
Datasheet |
BUSSMANN | Bulk | Active | Type 2 | Base + Module | 4 | 1.02kV | 20 kA | 50 kA | 200 kA | 3 kV | - | -40°C ~ 90°C | Visual Life Indicator | DIN Rail | - |
|
|
SPD2-300-MSPD TYP 1/TYP 2 300V MCOV 1 POLE |
5,781 |
|
Datasheet |
SPD2 1P+1 | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 300V | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|

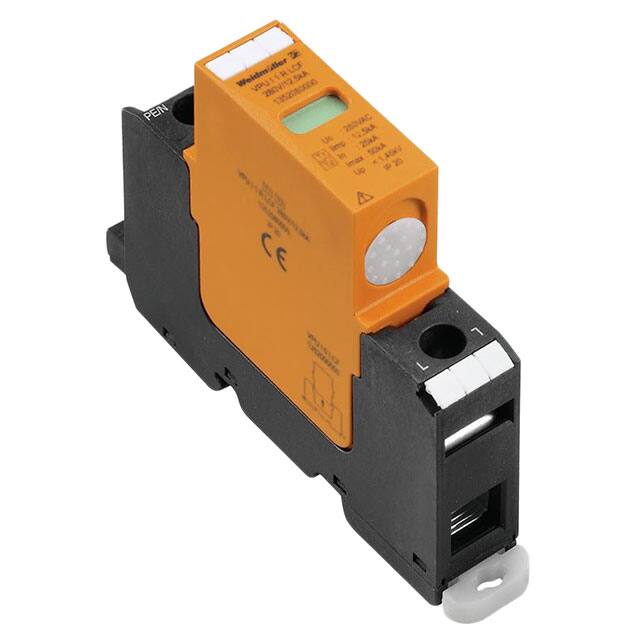

2025050000SPD TYPE 1 385VAC MCOV 1 POLE |
7,034 |
|
- |
VPU | Box | Obsolete | Type 1 | Base + Module | 1 | 385VAC | 20 kA | 40 kA | 200 kA | - | - | -40°C ~ 70°C | - | Chassis Mount | CE, cURus |
|
|
1260-2SMG-480SPD 600VAC MCOV 2 POLE |
7,829 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 600VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2SMG-690SPD 750VAC MCOV 2 POLE |
8,044 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 750VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
2800755SPD 36VDC MCOV 1 POLE |
6,733 |
|
Datasheet |
PT | Bulk | Active | - | Module Only | 1 | 36VDC | 100 A | 10 kA | - | - | 1.3 kV | -40°C ~ 80°C | - | Base Mount | - |
|
|
AGDN1000PV30LRSPD TYPE 1 1.5KVAC MCOV 1 POLE |
7,536 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 1 | 1.5kVAC | 20 kA | - | 50 kA | 2.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
SPD2-480-MSPD TYP 1/TYP 2 480V MCOV 1 POLE |
7,478 |
|
Datasheet |
SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 480V | 20 kA | 50 kA | 200 kA | 1.5 kV | 2.3 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
SPD2-150-3P0SPD TYP 1/TYP 2 150V MCOV 3 POLE |
4,785 |
|
Datasheet |
SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 150V | 20 kA | 50 kA | 200 kA | 600 V | 1.25 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
SPD2-300-3P0SPD TYP 1/TYP 2 300V MCOV 3 POLE |
7,489 |
|
Datasheet |
SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 300V | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
BSPH2A150D150LVRSPD TYPE 3/TYPE 4 150VAC MCOV |
5,091 |
|
Datasheet |
BSPH | Bulk | Active | Type 3, Type 4 | Base + Module | 2 | 150VAC | 2 kA | 4 kA | 6 kA | - | - | -40°C ~ 80°C | - | DIN Rail | CSA, KEMA, UL |
|
|
SPD2-350-3P0SPD TYP 1/TYP 2 350V MCOV 3 POLE |
8,988 |
|
Datasheet |
SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 350V | 20 kA | 50 kA | 200 kA | 1 kV | 1.75 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
SPH50SP3240DLGSPD TYPE 1 |
3,670 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPD2-480-3P0SPD TYP 1/TYP 2 480V MCOV 3 POLE |
5,384 |
|
Datasheet |
SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 480V | 20 kA | 50 kA | 200 kA | 1.5 kV | 2.3 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
2800769SPD 180VDC MCOV 1 POLE |
5,912 |
|
Datasheet |
PT | Bulk | Active | - | Base + Module | 1 | 180VDC | 10 kA | 20 kA | - | - | 700 V | -40°C ~ 70°C | - | DIN Rail | cUL, UL |
|
|
SPD2-550-MSPD TYP 1/TYP 2 550V MCOV 1 POLE |
3,406 |
|
Datasheet |
SPD2 2P+0 | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 550V | 20 kA | 50 kA | 200 kA | 2 kV | 2.5 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
2801491SPD TYP 1/TYP 2 75VDC MCOV 1POLE |
5,296 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 75VDC | 12.5 kA | 50 kA | - | - | 700 V | -40°C ~ 80°C | - | DIN Rail | - |
|
|
2730650000SPD TYPE 2 350VAC MCOV 2 POLE |
6,263 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 2 | 350VAC | 20 kA | 50 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | - | DIN Rail | CE, cULus, VDE |
|
|
2730630000SPD TYPE 2 350VAC MCOV 2 POLE |
5,426 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 2 | 350VAC | 20 kA | 50 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | - | DIN Rail | CE, cULus, VDE |
|
|
SPD2-075-MSPD TYPE 1/TYP 2 75V MCOV 1 POLE |
6,340 |
|
- |
SPD2 1P+1 | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 75V | 20 kA | 50 kA | 100 kA | 330 V | 800 V | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
