Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P13TAJ103MLB12POT 10K OHM 1.5W CERMET LOG Vishay Sfernice |
4,577 |
|
Datasheet |
P13 | Box | Active | 10k | ±20% | 1.5W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P13QEB472MAB17POT 4.7K OHM 1.5W CERMET LINEAR Vishay Sfernice |
3,961 |
|
Datasheet |
P13 | Box | Active | 4.7k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.492" (12.50mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
|
PE60L0FLW100MAPOT 10 OHM 6W CERMET LINEAR Vishay Sfernice |
3,461 |
|
Datasheet |
PE60 | Box | Active | 10 | ±20% | 6W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 300° | Cermet | Wire Leads | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P13QEJ222MAB12POT 2.2K OHM 1.5W CERMET LINEAR Vishay Sfernice |
4,247 |
|
Datasheet |
P13 | Box | Active | 2.2k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|

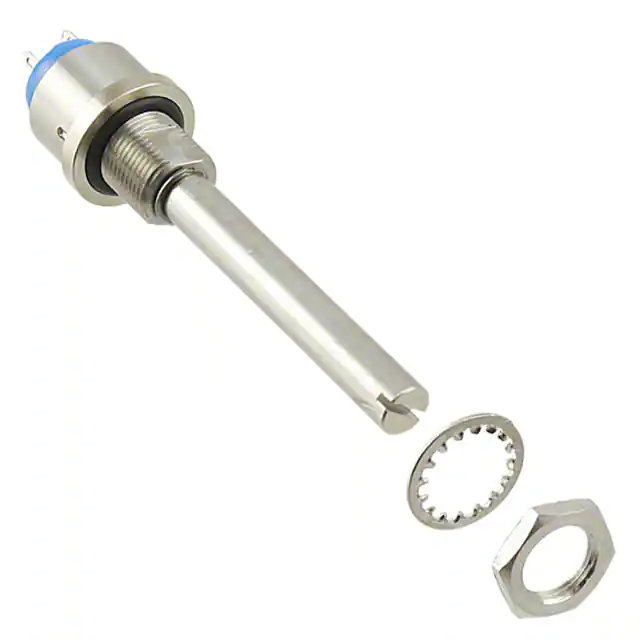

P13SMNFRS471MAPOT 470 OHM 1.5W CERMET LINEAR Vishay Sfernice |
3,451 |
|
Datasheet |
P13SM | Bulk | Active | 470 | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P13SMNFRS473MAPOT 47K OHM 1.5W CERMET LINEAR Vishay Sfernice |
3,691 |
|
Datasheet |
P13SM | Bulk | Active | 47k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

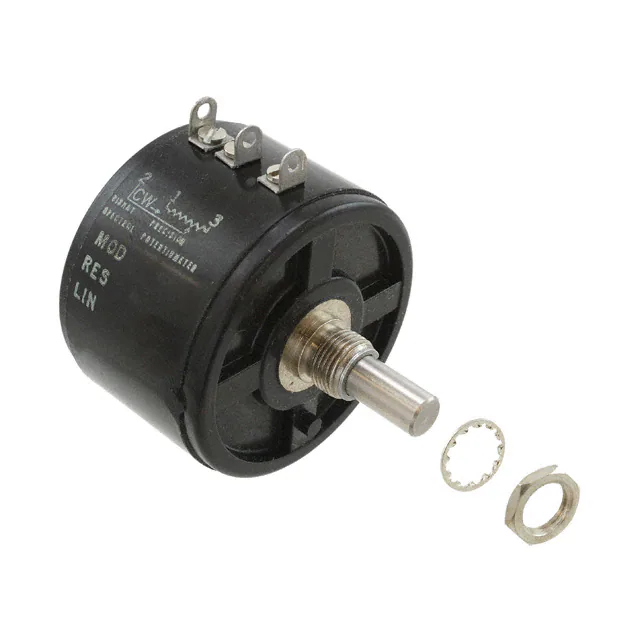

860-1-1-502POT 5K OHM 8W WIREWOUND LINEAR Vishay Spectrol |
4,396 |
|
Datasheet |
860 | Bulk | Active | 5k | ±3% | 8W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Round | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
534B2502502JCPOT 5K OHM 2W WIREWOUND LINEAR Vishay Spectrol |
2,652 |
|
Datasheet |
534 | Bulk | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 2 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
PP12SR472A340BPOT 4.7K OHM 1/2W PLASTIC LINEAR Vishay Sfernice |
4,857 |
|
Datasheet |
PP12SR | Box | Active | 4.7k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0/ -600ppm/°C | 360° | Conductive Plastic | PC Pins | Slotted | 0.492" (12.50mm) | 0.125" (3.18mm) | - | Servo Mount |
|
|
RO200SF1A102POT 1K OHM 1.2W PLASTIC LINEAR Vishay Sfernice |
2,124 |
|
Datasheet |
ROT/SF | Box | Active | 1k | ±10% | 1.2W | None | 1.0 | Long Life | Linear | 1 | User Defined | - | 360° | Conductive Plastic | Solder Turret | Round | 0.650" (16.50mm) | 0.250" (6.35mm) | - | Panel Mount |
