Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE30L0FR474KABPOT 470K OHM 0.19W CERMET LINEAR Vishay Sfernice |
1,354 |
|
Datasheet |
PE30 | Box | Active | 470k | ±10% | 0.19W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
14920F0GJSX13502KAPOT 5K OHM 1W CERMET LINEAR Vishay Spectrol |
4,696 |
|
Datasheet |
149 | Box | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
P11H1F0GHFW10103MAPOT 10K OHM 1W CERMET LINEAR Vishay Sfernice |
4,012 |
|
Datasheet |
P11H | Box | Active | 10k | ±20% | 1W | None | 1.0 | High Torque | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
248FGJS0XB25104MAPOT 100K OHM 1/2W PLASTIC LINEAR Vishay Spectrol |
1,751 |
|
Datasheet |
248 | Box | Active | 100k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 295° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
249BBHS0XB25104KAPOT 100K OHM 0.9W CERMET LINEAR Vishay Spectrol |
1,247 |
|
Datasheet |
249 | Box | Active | 100k | ±10% | 0.9W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

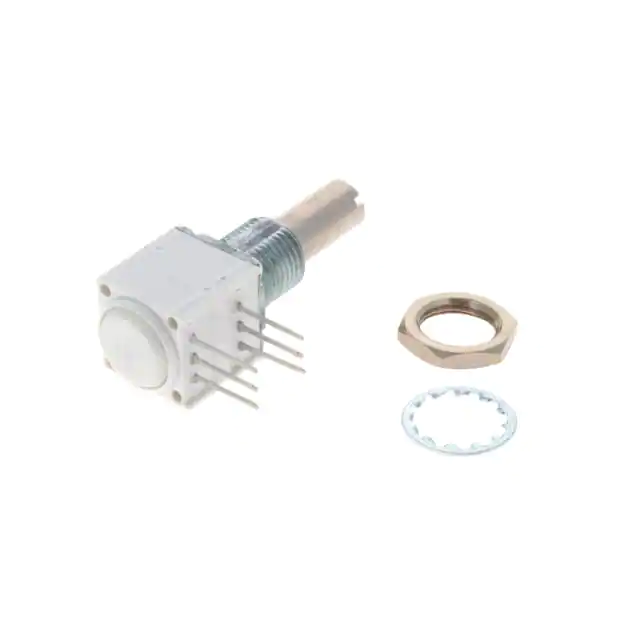

14920F0GJSX13102KAPOT 1K OHM 1W CERMET LINEAR Vishay Spectrol |
3,352 |
|
Datasheet |
149 | Box | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|

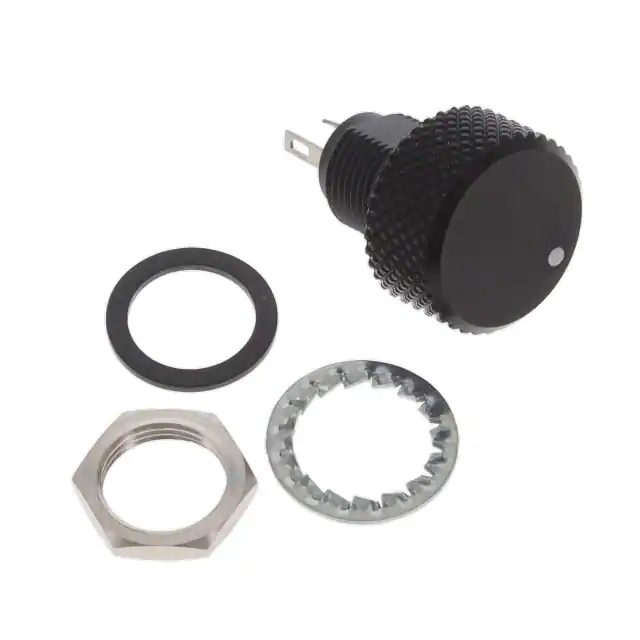

P16NM102MAB15POT 1K OHM 1W CERMET LINEAR Vishay Sfernice |
2,283 |
|
Datasheet |
P16 | Box | Active | 1k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
P10XXAI502KB30POT 5K OHM 1/2W CERMET LINEAR Vishay Sfernice |
1,402 |
|
Datasheet |
P10 | Box | Active | 5k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.787" (20.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
535B1101JCPOT 100 OHM 1.5W WIREWOUND LIN Vishay Spectrol |
4,618 |
|
Datasheet |
535 | Bulk | Active | 100 | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
P16NM104KAB15POT 100K OHM 1W CERMET LINEAR Vishay Sfernice |
2,932 |
|
Datasheet |
P16 | Box | Active | 100k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
