Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
132B20502POT 5K OHM 2.75W WIREWOUND LIN Vishay Spectrol |
2,560 |
|
Datasheet |
132 | Bulk | Active | 5k | ±3% | 2.75W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 340° | Wirewound | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

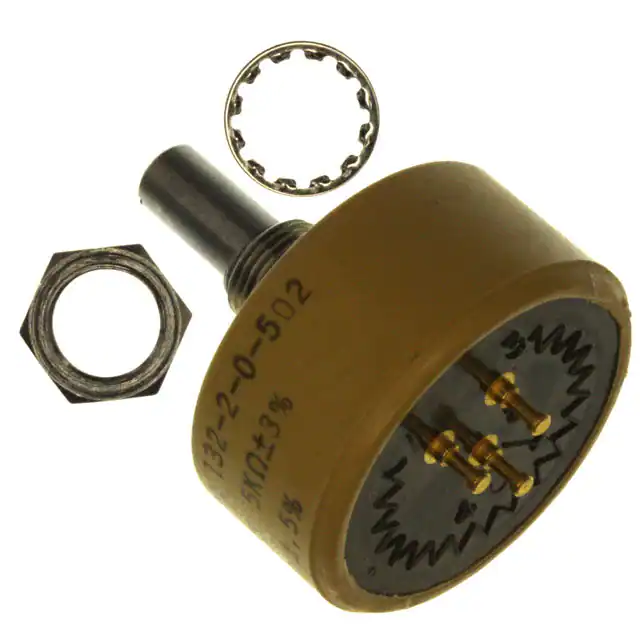

132B00502POT 5K OHM 2.75W WIREWOUND LIN Vishay Spectrol |
2,609 |
|
Datasheet |
132 | Bulk | Active | 5k | ±3% | 2.75W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | Continuous | Wirewound | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

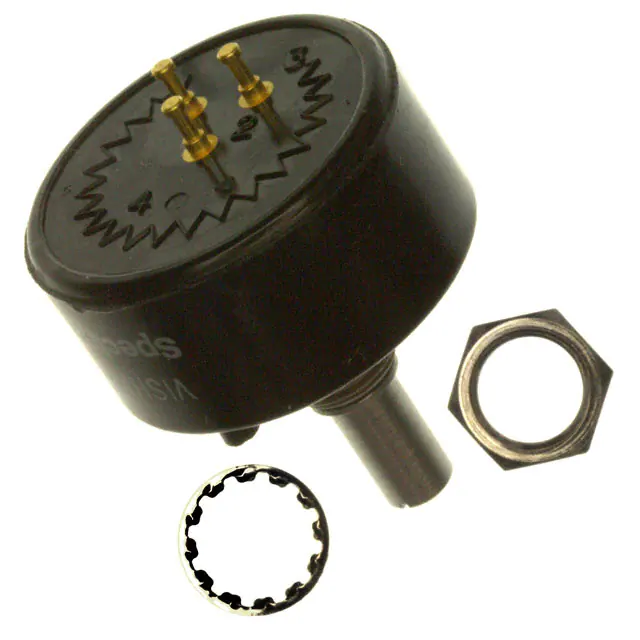

132B20102POT 1K OHM 2.75W WIREWOUND LIN Vishay Spectrol |
2,872 |
|
Datasheet |
132 | Bulk | Active | 1k | ±3% | 2.75W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 340° | Wirewound | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

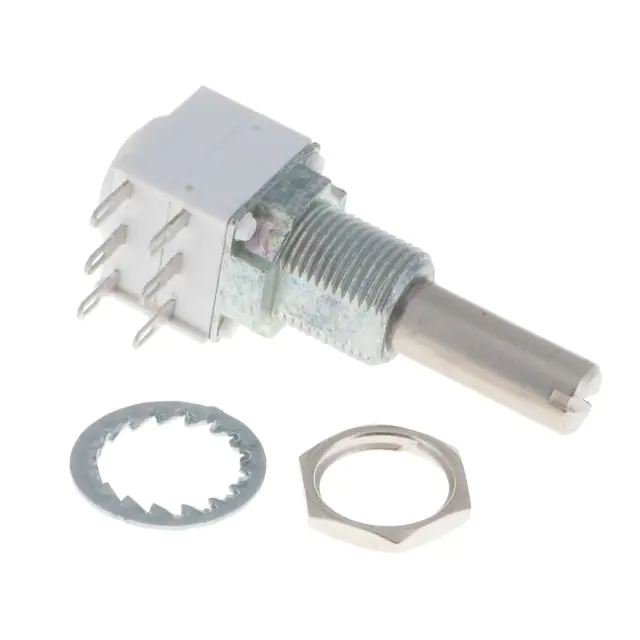

P11S2V0FLSY00502KAPOT 5K OHM 1W CERMET LINEAR Vishay Sfernice |
3,130 |
|
Datasheet |
P11S | Box | Active | 5k | ±10% | 1W | None | 1.0 | Sealed | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|

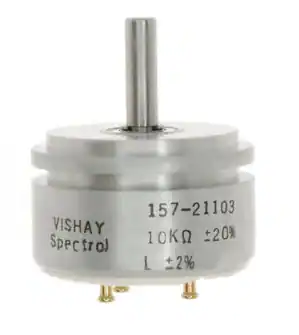

157S103MXPOT 10K OHM 1W PLASTIC LINEAR Vishay Spectrol |
2,158 |
|
Datasheet |
157 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
157S202MB9002POT 2K OHM 1W PLASTIC LINEAR Vishay Sfernice |
2,071 |
|
Datasheet |
157 | Box | Active | 2k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 360° | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.125" (3.18mm) | 3/8-32 | Servo Mount |
|

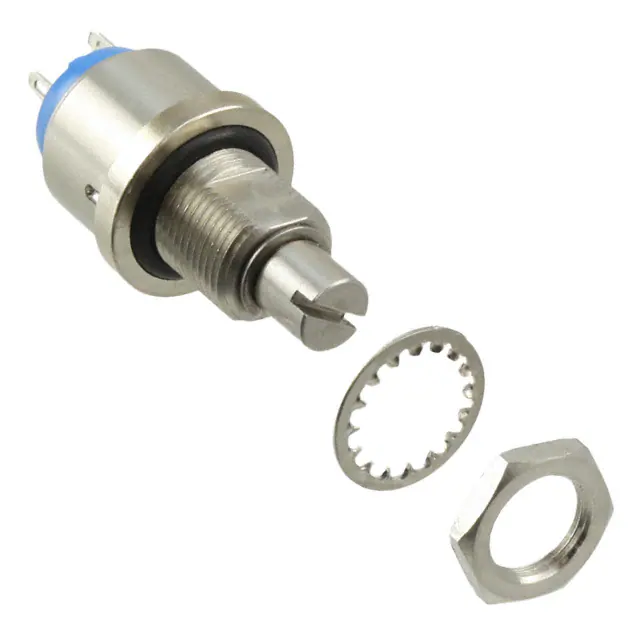

P13SMNFGS102MAPOT 1K OHM 1.5W CERMET LINEAR Vishay Sfernice |
4,913 |
|
Datasheet |
P13SM | Bulk | Active | 1k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
157S102MB9002POT 1K OHM 1W PLASTIC LINEAR Vishay Sfernice |
1,284 |
|
Datasheet |
157 | Box | Active | 1k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 360° | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.125" (3.18mm) | 3/8-32 | Servo Mount |
|

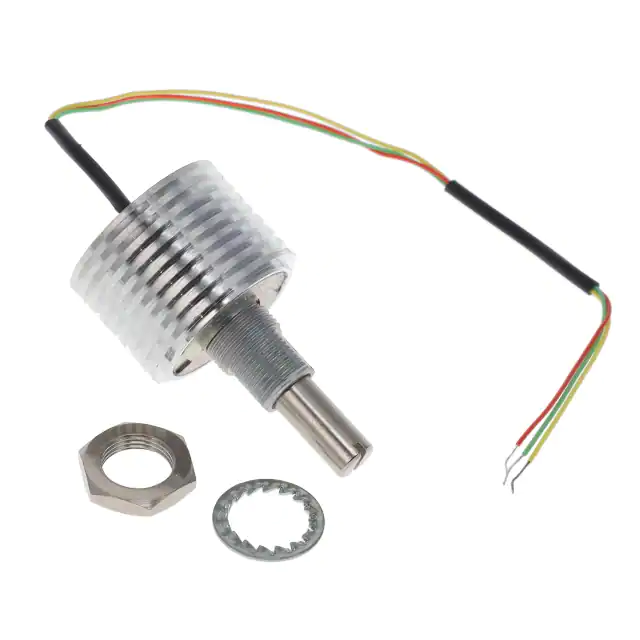

PE60L0FLW4R7MAPOT 4.7 OHM 6W CERMET LINEAR Vishay Sfernice |
2,580 |
|
Datasheet |
PE60 | Box | Active | 4.7 | ±20% | 6W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | - | 300° | Cermet | Wire Leads | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

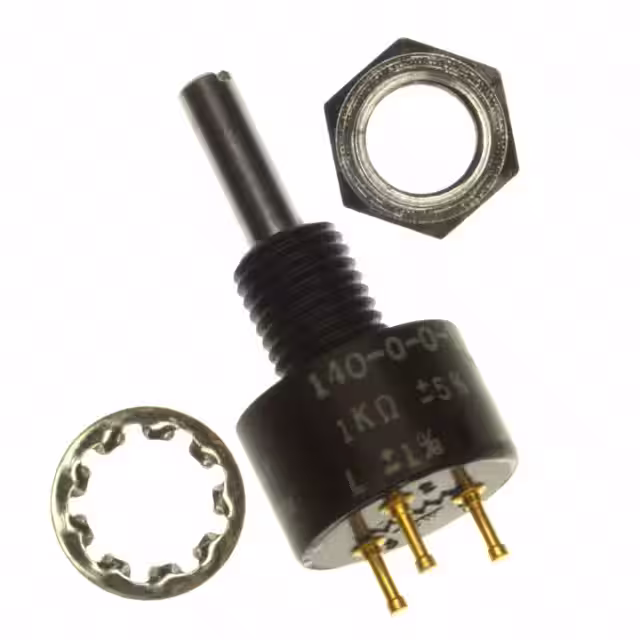

140B00102POT 1K OHM 2W WIREWOUND LINEAR Vishay Spectrol |
3,233 |
|
Datasheet |
140 | Bulk | Active | 1k | ±5% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 330° | Wirewound | Solder Turret | Slotted | 0.700" (17.78mm) | 0.1248" (3.17mm) | 1/4-32 | Panel Mount |
