Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
248FGJS0XB25502MAPOT 5K OHM 1/2W PLASTIC LINEAR Vishay Spectrol |
3,826 |
|
Datasheet |
248 | Box | Active | 5k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 295° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|

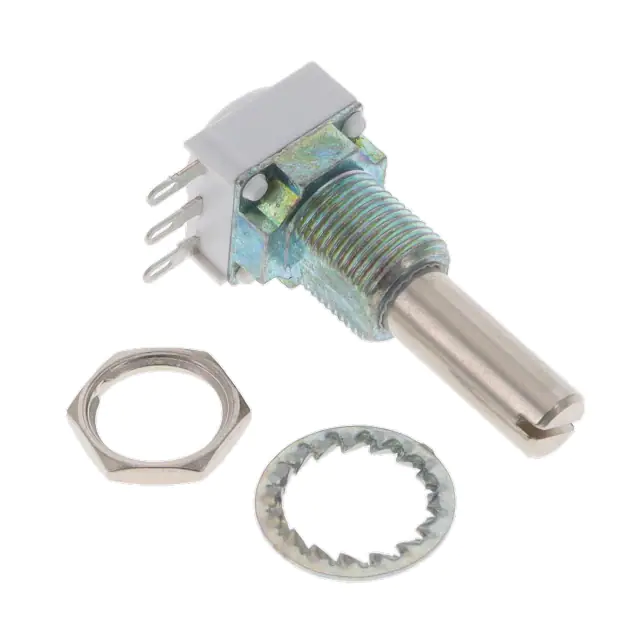

P11L1V0FLSY00103KAPOT 10K OHM 1/10W CERMET LINEAR Vishay Sfernice |
2,260 |
|
Datasheet |
P11L | Box | Active | 10k | ±10% | 0.1W, 1/10W | None | 1.0 | Long Life | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

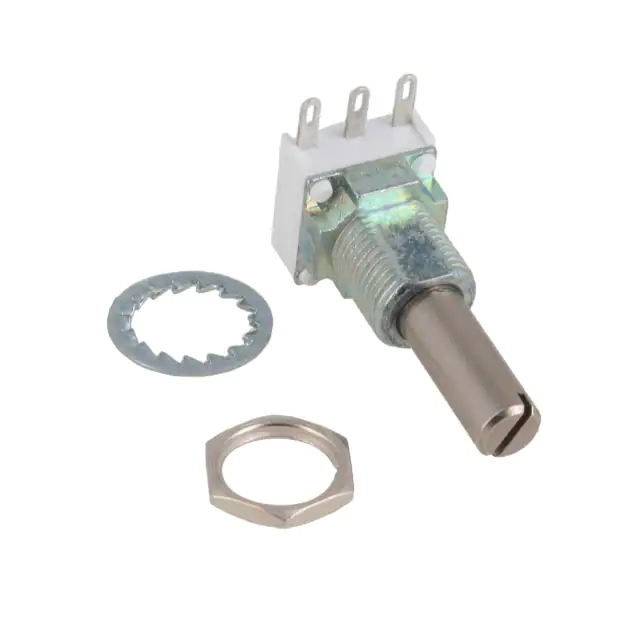

P11S1V0FLSY00502KLPOT 5K OHM 1/2W CERMET LOG Vishay Sfernice |
3,945 |
|
Datasheet |
P11S | Box | Active | 5k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
P11H1F0GHFY00472KAPOT 4.7K OHM 1W CERMET LINEAR Vishay Sfernice |
3,081 |
|
Datasheet |
P11H | Box | Active | 4.7k | ±10% | 1W | None | 1.0 | High Torque | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P16NP223MAB15POT 22K OHM 1W CERMET LINEAR Vishay Sfernice |
1,104 |
|
Datasheet |
P16 | Bulk | Active | 22k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

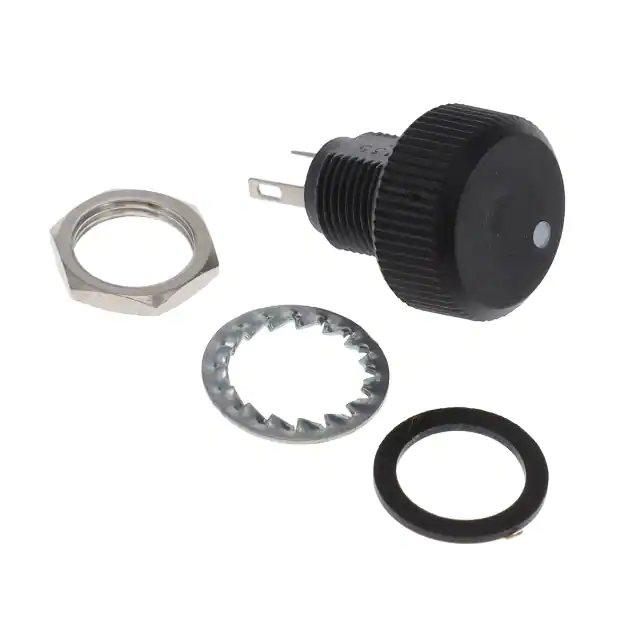

PA16NP223MAB15POT 22K OHM 1/2W PLASTIC LINEAR Vishay Sfernice |
3,299 |
|
Datasheet |
PA16 | Box | Active | 22k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Knob | 0.610" (15.50mm) | 0.315" (8.00mm) | M10 x 0.75 | Panel Mount |
|
534B1501JC8872POT 500 OHM 2W WIREWOUND LINEAR Vishay Sfernice |
2,805 |
|
Datasheet |
534 | Box | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
P16NP224KAB15POT 220K OHM 1W CERMET LINEAR Vishay Sfernice |
2,725 |
|
Datasheet |
P16 | Box | Active | 220k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16NP105KAB15POT 1M OHM 1W CERMET LINEAR Vishay Sfernice |
4,607 |
|
Datasheet |
P16 | Box | Active | 1M | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
357B2203MAB251S22POT 20K OHM 1W PLASTIC LINEAR Vishay Sfernice |
1,014 |
|
Datasheet |
357 | Box | Active | 20k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 340° | Conductive Plastic | Solder Turret | Slotted | 0.866" (22.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
