Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
249FGJS0XB25504KAPOT 500K OHM 0.18W CERMET LINEAR Vishay Spectrol |
100 |
|
Datasheet |
249 | Box | Active | 500k | ±10% | 0.18W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

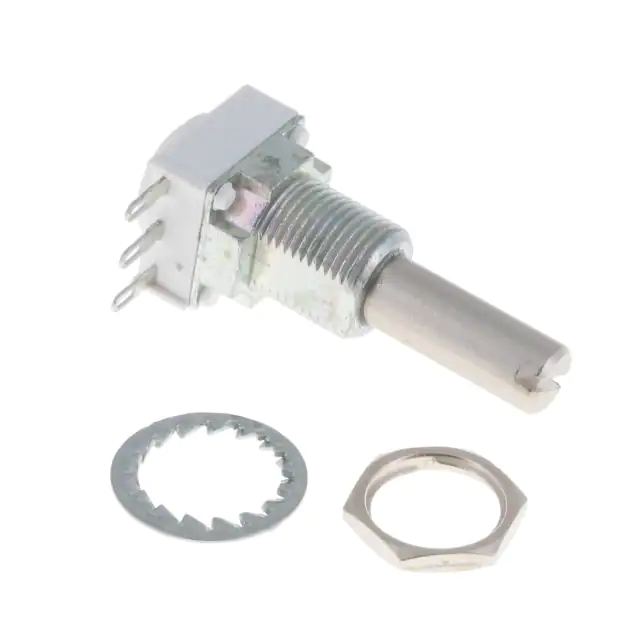

P11S1V0FLSY00501KAPOT 500 OHM 1W CERMET LINEAR Vishay Sfernice |
2,320 |
|
Datasheet |
P11S | Box | Active | 500 | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|

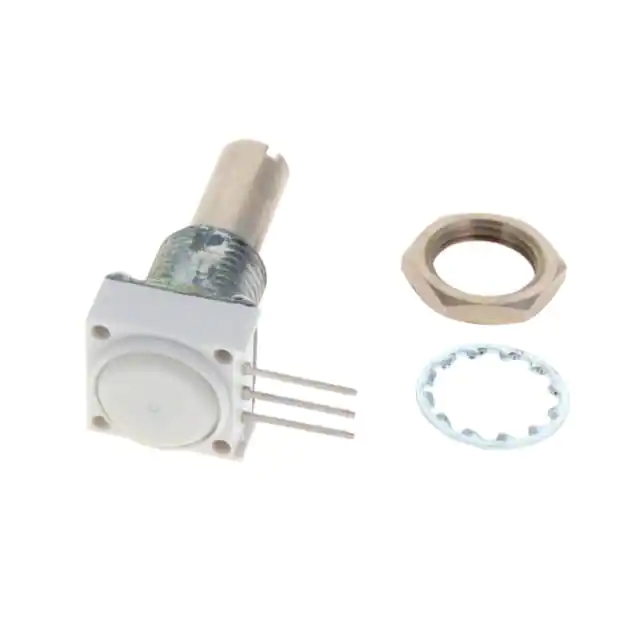

14910F0GJSX10503KAPOT 50K OHM 1W CERMET LINEAR Vishay Spectrol |
2,237 |
|
Datasheet |
149 | Box | Active | 50k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 1/4-32 | Through Hole |
|

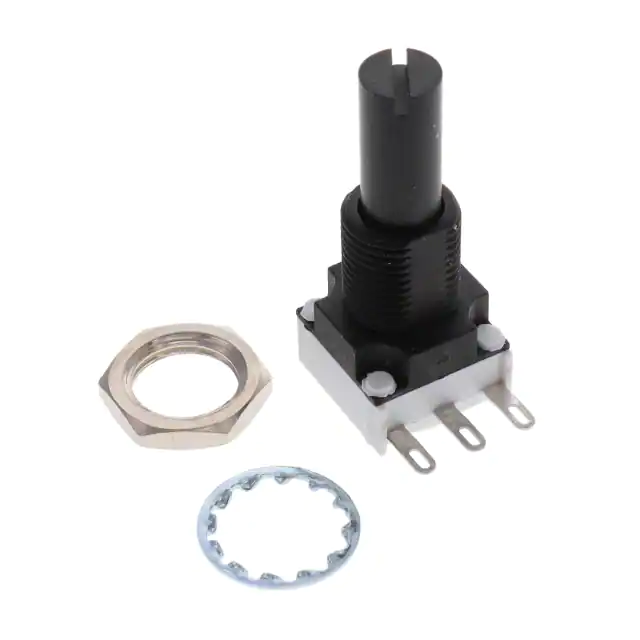

P11P1F0GJSY00102KAPOT 1K OHM 1W CERMET LINEAR Vishay Sfernice |
4,913 |
|
Datasheet |
P11P | Box | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

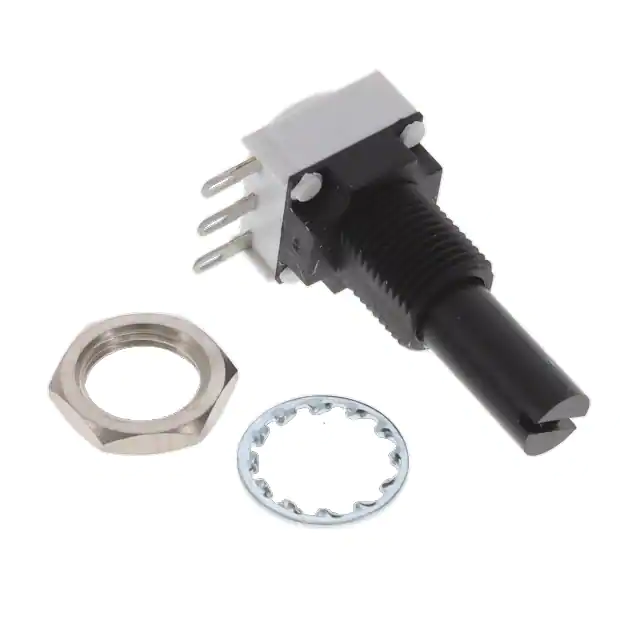

P11P1F0GJSY00503KAPOT 50K OHM 1W CERMET LINEAR Vishay Sfernice |
3,967 |
|
Datasheet |
P11P | Box | Active | 50k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

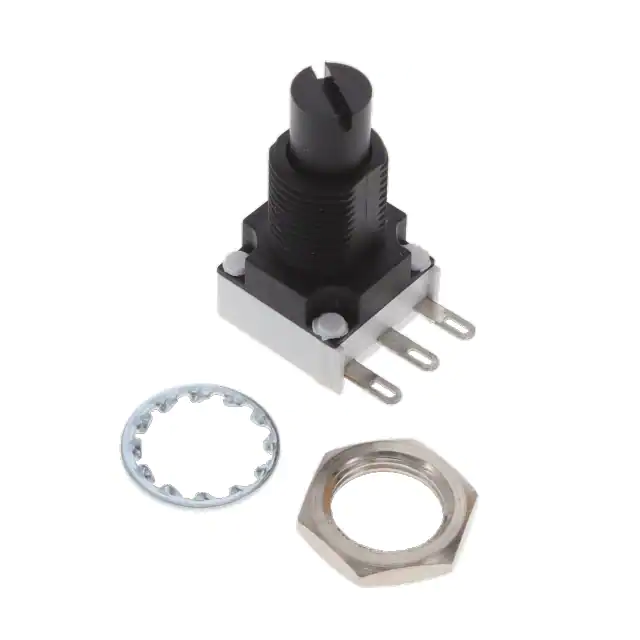

P11P1F0GGSY00502KAPOT 5K OHM 1W CERMET LINEAR Vishay Sfernice |
3,668 |
|
Datasheet |
P11P | Box | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.622" (15.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

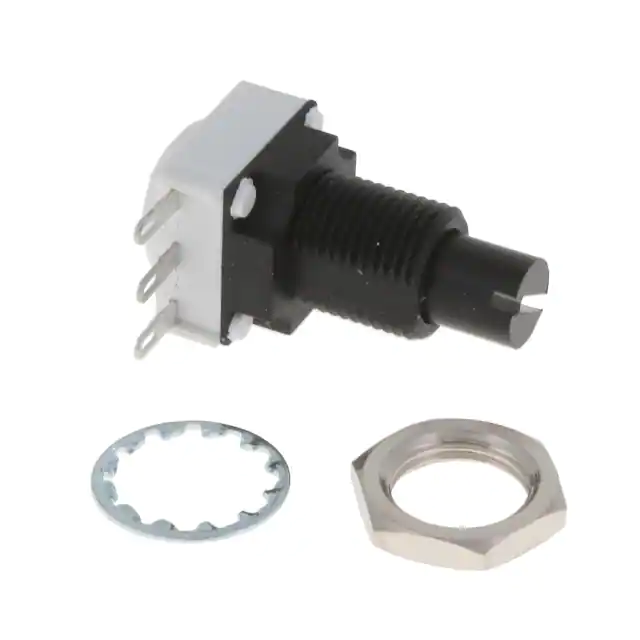

P11P1F0GGSY00104KAPOT 100K OHM 1W CERMET LINEAR Vishay Sfernice |
1,885 |
|
Datasheet |
P11P | Box | Active | 100k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.622" (15.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

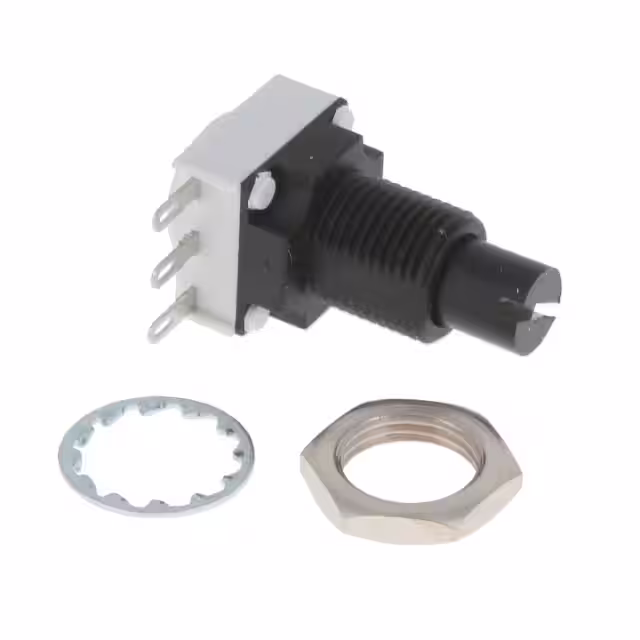

P11P1F0GGSY00102KAPOT 1K OHM 1W CERMET LINEAR Vishay Sfernice |
1,098 |
|
Datasheet |
P11P | Box | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.622" (15.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
14810F0GJSX10102KAPOT 1K OHM 1/2W PLASTIC LINEAR Vishay Spectrol |
1,780 |
|
Datasheet |
148 | Box | Active | 1k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 1/4-32 | Through Hole |
|
|
14810F0GJSX10103KAPOT 10K OHM 1/2W PLASTIC LINEAR Vishay Spectrol |
1,376 |
|
Datasheet |
148 | Box | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 1/4-32 | Panel Mount |
