Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2207-V-RCFIXED IND 33UH 7.4A 20 MOHM TH Bourns Inc. |
278 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±15% | 7.4 A | - | Shielded | 20mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2216-V-RCFIXED IND 220UH 3.6A 83 MOHM TH Bourns Inc. |
868 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 3.6 A | - | Shielded | 83mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
5218-RCFIXED IND 3.35UH 20A 10 MOHM TH Bourns Inc. |
654 |
|
Datasheet |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Iron | 3.35 µH | ±20% | 20 A | - | Unshielded | 10mOhm Max | - | 107MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) | - |
|
2200LL-331-H-RCFIXED IND 330UH 4A 77 MOHM TH Bourns Inc. |
1,223 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 330 µH | ±15% | 4 A | - | Unshielded | 77mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|

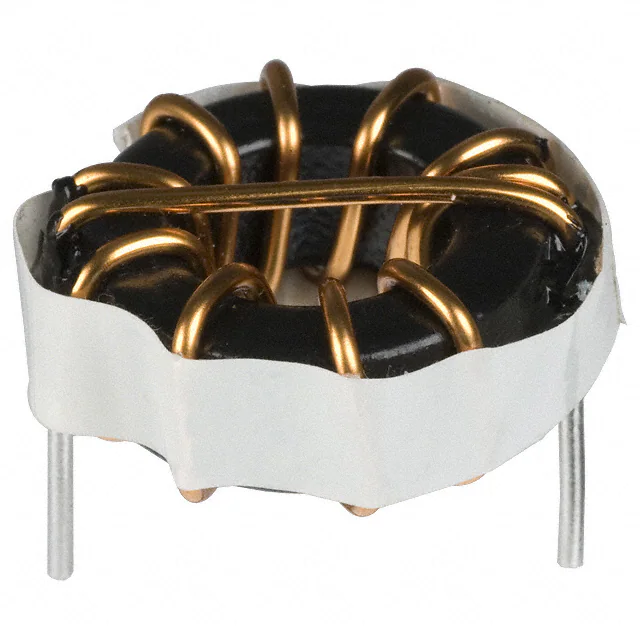

2200LL-470-V-RCFIXED IND 47UH 10.3A 12 MOHM TH Bourns Inc. |
713 |
|
Datasheet |
2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 47 µH | ±15% | 10.3 A | - | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|

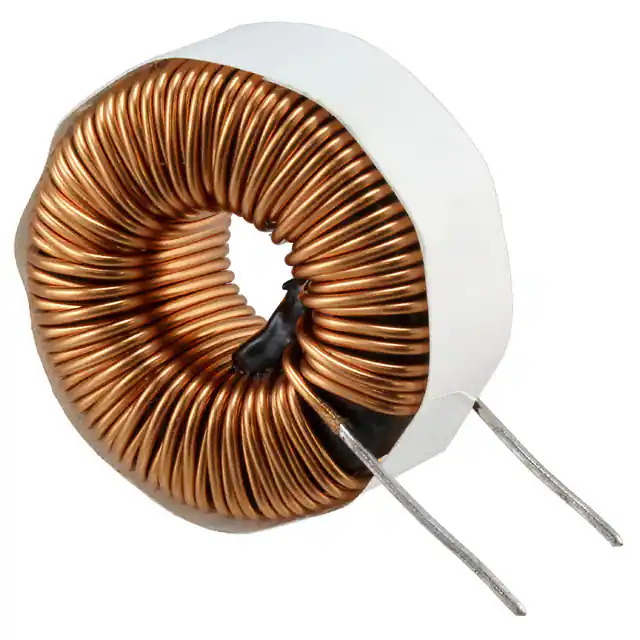

2300LL-470-V-RCFIXED IND 47UH 11.8A 12 MOHM TH Bourns Inc. |
1,617 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 47 µH | ±15% | 11.8 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

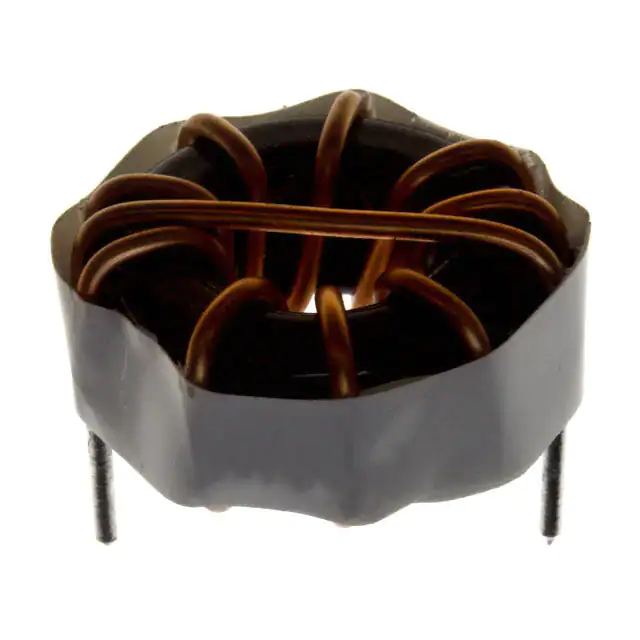

2300LL-102-H-RCFIXED IND 1MH 3.5A 137 MOHM TH Bourns Inc. |
453 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 1 mH | ±15% | 3.5 A | - | Shielded | 137mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
2300LL-561-V-RCFIXED IND 560UH 4A 103 MOHM TH Bourns Inc. |
386 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 560 µH | ±15% | 4 A | - | Shielded | 103mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-471-V-RCFIXED IND 470UH 4.5A 140 MOHM TH Bourns Inc. |
149 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 4.5 A | - | Shielded | 140mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

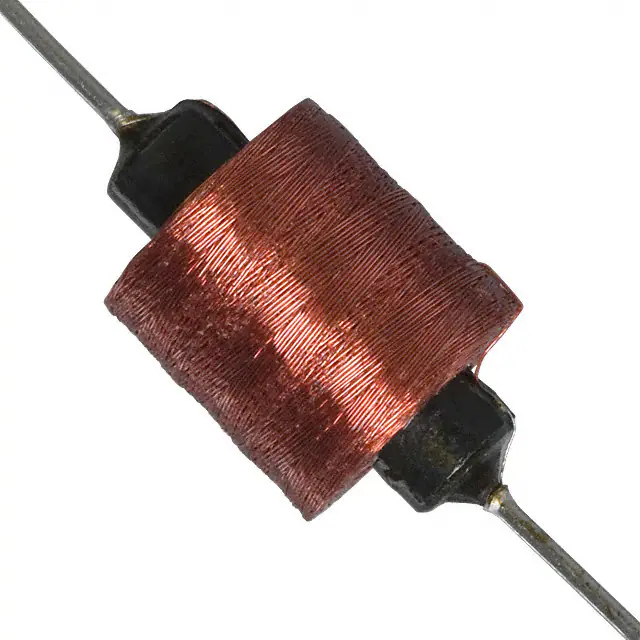

70F101AF-RCFIXED IND 100MH 29MA 278 OHM TH Bourns Inc. |
335 |
|
Datasheet |
70F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±5% | 29 mA | - | Unshielded | 278Ohm Max | 48 @ 79kHz | 157kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.440" Dia x 0.630" L (11.18mm x 16.00mm) | - |
