DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EF92251S1-1000U-G9912VDC FAN 92X25MM ALARM Sunon Fans |
4,938 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.3 CFM (1.44m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92251S2-1000U-G9912VDC FAN 92X25MM ALARM Sunon Fans |
1,076 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.32 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
HA92251V4-000U-999FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
1,568 |
|
Datasheet |
MagLev® HA | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 28.1 CFM (0.787m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | Tubeaxial | - | 17.7dB(A) | 900 mW | 1700 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.039 lb (17.69 g) |
|
|
EF60252S1-1000U-G9924VDC FAN 60X25MM ALARM Sunon Fans |
1,937 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

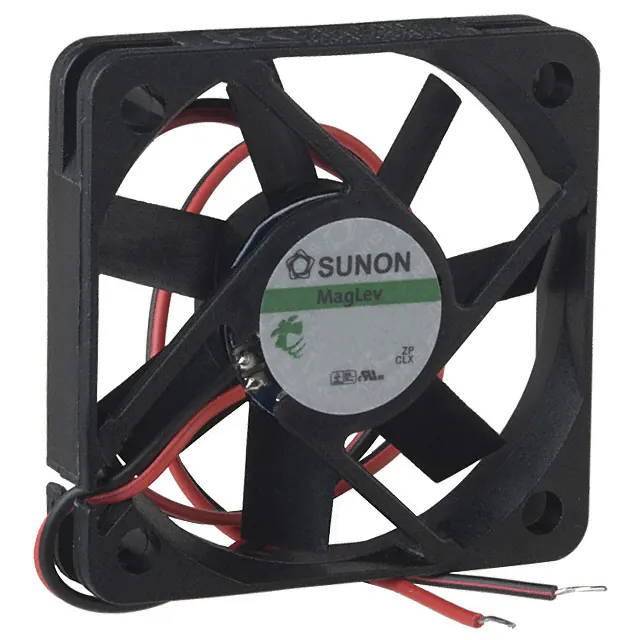

KDE1205PFVX.11.MS.A.GNFAN AXIAL 50X10MM 12VDC WIRE Sunon Fans |
3,623 |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 15.2 CFM (0.426m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 35.0dB(A) | 2 W | 6100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.044 lb (19.96 g) |
|
|
KD2406PHB2FAN AXIAL 60X15.5MM 24VDC WIRE Sunon Fans |
3,879 |
|
Datasheet |
KD | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 18.5 CFM (0.518m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 31.5dB(A) | 1.9 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.099 lb (44.91 g) |
|
|
KDE1209PTB1-6AFFAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
1,771 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 2.3 W | - | 3 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE1209PTB1-6ARFAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
3,988 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 2.3 W | - | 3 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
ME92251V2-000U-999FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
1,628 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | - | 32.0dB(A) | 1.6 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.212 lb (96.16 g) |
|
|
MB50151V1-000U-F99FAN AXIAL 50X15MM 12VDC WIRE Sunon Fans |
3,970 |
|
- |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB(A) | 1.05 W | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.085 lb (38.56 g) |
