DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF50151V3-1000U-F9912VDC FAN 50X15MM TACH Sunon Fans |
2,887 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 10.2 CFM (0.286m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.1dB(A) | 0.34 W | 3800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50151V2-1000U-F9912VDC FAN 50X15MM TACH Sunon Fans |
4,404 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 12.7 CFM (0.360m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB(A) | 0.51 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
KD2406PTB2.GNFAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
4,358 |
|
Datasheet |
KD | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.3 W | 3800 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.123 lb (55.79 g) |
|
|
KDE2404PFVX.11.MS.A.GNFAN AXIAL 40X10MM 24VDC Sunon Fans |
3,831 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

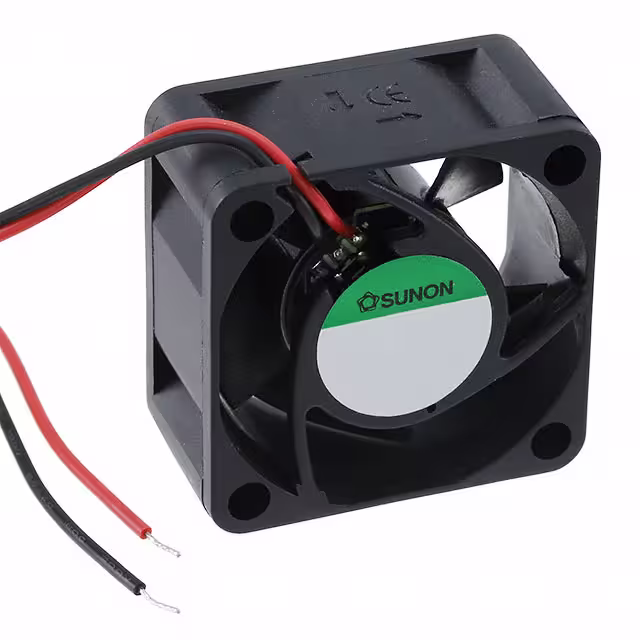

EB40201S2-000U-999FAN AXIAL 40X20MM 12VDC WIRE Sunon Fans |
3,414 |
|
Datasheet |
EB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | - | 21.0dB(A) | 760 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.069 lb (31.3 g) |
|

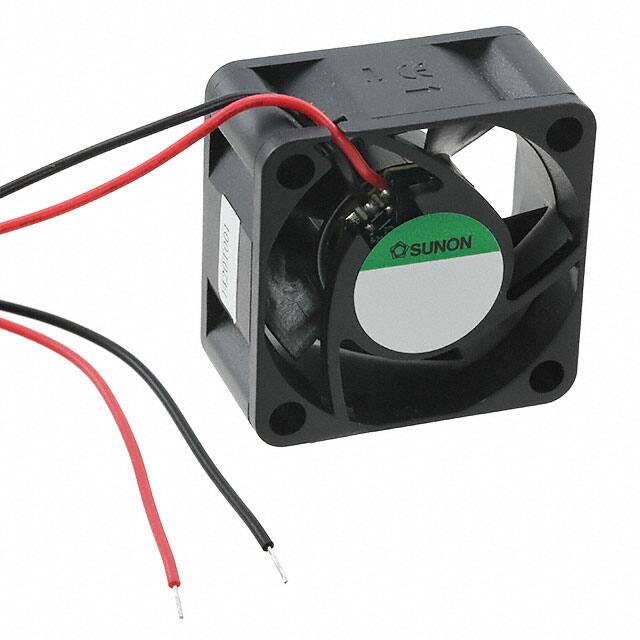

EB40201S1-000U-999FAN AXIAL 40X20MM 12VDC WIRE Sunon Fans |
4,576 |
|
- |
EB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | - | 25.5dB(A) | 1.08 W | 7200 RPM | 2 Wire Leads | - | - | - | 0.068 lb (30.84 g) |
|
|
MB45100V2-000U-A99FAN Sunon Fans |
1,423 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF45100V1-1000U-S995VDC FAN 45X10MM TACH/PWM Sunon Fans |
3,712 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.5dB(A) | 1.03 W | 6500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45101V1-1000U-S9912VDC FAN 45X10MM TACH/PWM Sunon Fans |
1,290 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.5dB(A) | 1.2 W | 6500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45100V2-1000U-S995VDC FAN 45X10MM TACH/PWM Sunon Fans |
2,315 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 9.4 CFM (0.263m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.1dB(A) | 0.51 W | 5000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
