DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
KD2406PTB1 (2).GNFAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
4,390 |
|
Datasheet |
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 34.5dB(A) | 2 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.123 lb (55.79 g) |
|
EF80251S2-1000U-A99Thermal Products Sunon Fans |
1,951 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 30.0dB(A) | 1.14 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KD0505PHS2.GNFAN AXIAL 50X15MM 5VDC WIRE Sunon Fans |
3,586 |
|
Datasheet |
KD | Bulk | Obsolete | 5VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 29.0dB(A) | 900 mW | 4700 RPM | 2 Wire Leads | - | - | - | - |
|

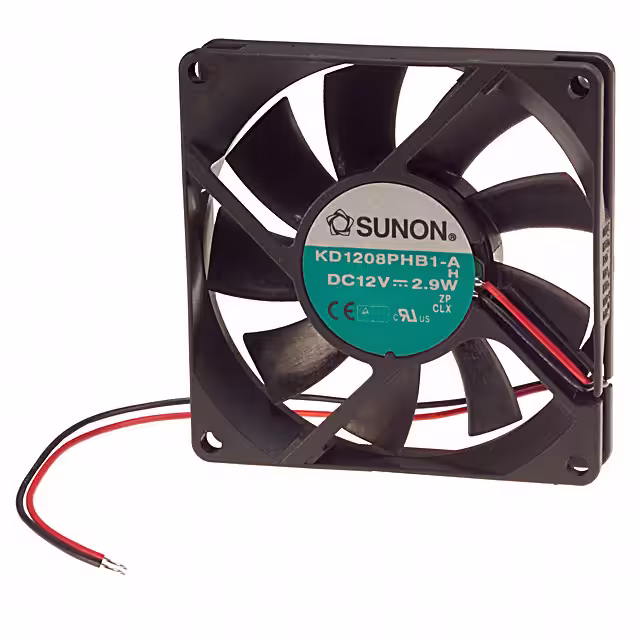

KD1208PHB1- A.H.FAN AXIAL 80X15MM 12VDC WIRE Sunon Fans |
3,629 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 35.0 CFM (0.980m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 39.5dB(A) | 2.9 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.157 lb (71.21 g) |
|
|
EF80251S1-1000U-G9912VDC FAN 80X25MM ALARM Sunon Fans |
3,583 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.44 W | 3200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80251S2-1000U-G9912VDC FAN 80X25MM ALARM Sunon Fans |
1,021 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.14 W | 2900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80251S3-1000U-G9912VDC FAN 80X25MM ALARM Sunon Fans |
1,354 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 0.84 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45101V1-1000U-Q9912VDC FAN 45X10MM ALARM/PWM Sunon Fans |
3,875 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 32.5dB(A) | 1.2 W | 6500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45100V1-1000U-Q995VDC FAN 45X10MM ALARM/PWM Sunon Fans |
3,670 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 32.5dB(A) | 1.03 W | 6500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45100V2-1000U-Q995VDC FAN 45X10MM ALARM/PWM Sunon Fans |
1,724 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 9.4 CFM (0.263m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 26.1dB(A) | 0.51 W | 5000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
