DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB50101V2-000U-F99FAN AXIAL 50X10MM 12VDC WIRE Sunon Fans |
1,994 |
|
- |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.0dB(A) | 1.26 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.044 lb (19.96 g) |
|
|
KDE1206PFB2-8FAN AXIAL 60X10.5MM 12VDC WIRE Sunon Fans |
3,022 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 14.5 CFM (0.406m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 29.4dB(A) | 1.2 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.048 lb (21.77 g) |
|
|
KD2445PFSX.11.GNFAN AXIAL 45X10MM 24VDC WIRE Sunon Fans |
3,842 |
|
Datasheet |
MagLev® KD | Bulk | Active | 24VDC | Square - 45mm L x 45mm H | 10.00mm | - | - | Sleeve | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KDE1207PTV1.13.MS.A.GNFAN AXIAL 70X25MM 12VDC WIRE Sunon Fans |
3,196 |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 31.0 CFM (0.868m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | - | 32.0dB(A) | 1.4 W | 3200 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.154 lb (69.85 g) |
|
|
EF80251S1-1000U-F9912VDC FAN 80X25MM TACH Sunon Fans |
3,732 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB(A) | 1.44 W | 3200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
KDE1205PFV1.11.MS.A.GNFAN AXIAL 50X10MM 12VDC Sunon Fans |
4,488 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KDE1205PFV2.11.MS.A.GNFAN AXIAL 50X10MM 12VDC WIRE Sunon Fans |
2,630 |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 26.0dB(A) | 1.1 W | 4300 RPM | 2 Wire Leads | - | - | - | - |
|

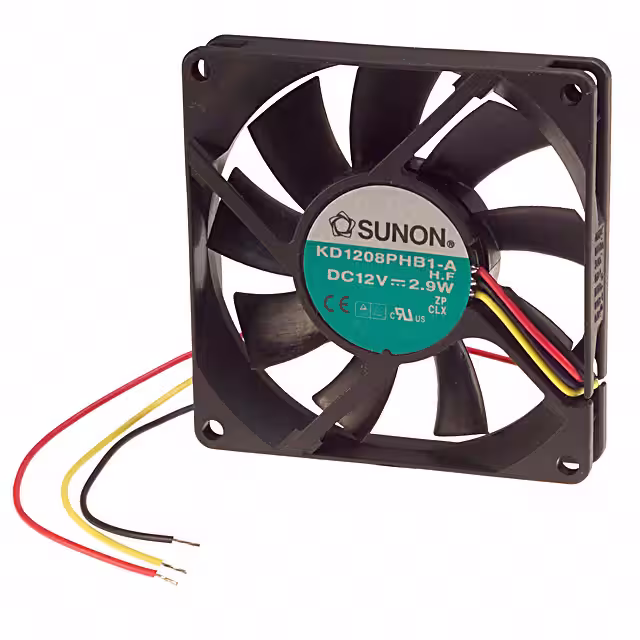

KD1208PHB1-A H.FFAN AXIAL 80X15MM 12VDC WIRE Sunon Fans |
2,529 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 35.0 CFM (0.980m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.5dB(A) | 2.9 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.157 lb (71.21 g) |
|
|
EF80251S3-1000U-A99Thermal Products Sunon Fans |
1,730 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Auto Restart | 28.0dB(A) | 840 mW | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
EF80252S2-1000U-G9924VDC FAN 80X25MM ALARM Sunon Fans |
3,385 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.01 W | 2900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
