DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

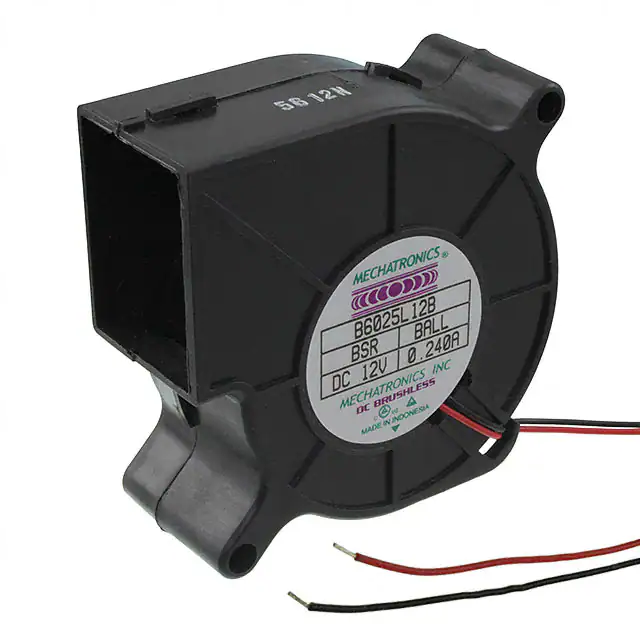

B6025L12B-BSRFAN BLOWER 60X25MM 12VDC WIRE Mechatronics Fan Group |
1,721 |
|
Datasheet |
B6025 | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 25.00mm | 3.0 CFM (0.084m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | - | 0.098 lb (44.45 g) |
|
E1225M24BT-FSRFAN AXIAL 120X25MM 24VDC WIRE Mechatronics Fan Group |
3,454 |
|
Datasheet |
E1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 67.0 CFM (1.88m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 2200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|

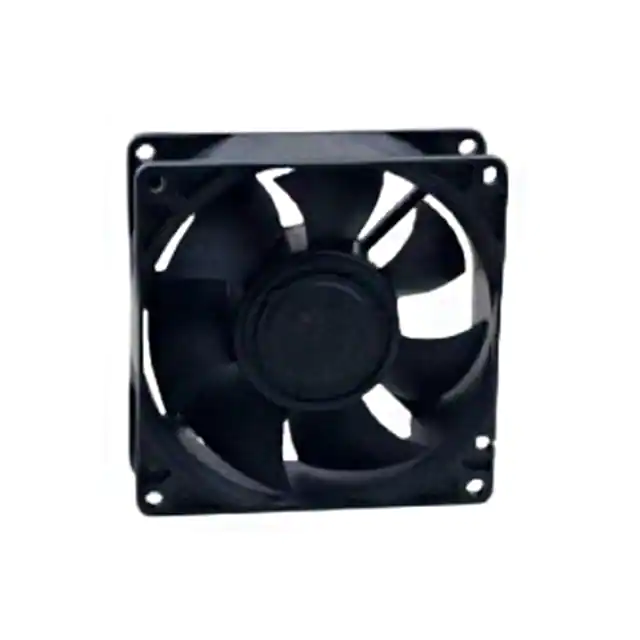

MR9232E12B-FSRFAN AXIAL 92X32MM 12VDC WIRE Mechatronics Fan Group |
1,934 |
|
Datasheet |
MR9232 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 96.0 CFM (2.69m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 52.8dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.331 lb (150.14 g) |
|
|
MR9232M24B-FSRFAN AXIAL 92X32MM 24VDC WIRE Mechatronics Fan Group |
4,585 |
|
Datasheet |
MR9232 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 74.0 CFM (2.07m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart | 48.8dB(A) | - | 3800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.331 lb (150.14 g) |
|
G6015E24B-RGR-CC-GBFAN AXIAL 60X15.3MM 24VDC WIRE Mechatronics Fan Group |
3,128 |
|
Datasheet |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.30mm | 21.0 CFM (0.588m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 5200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.059 lb (26.76 g) |
|

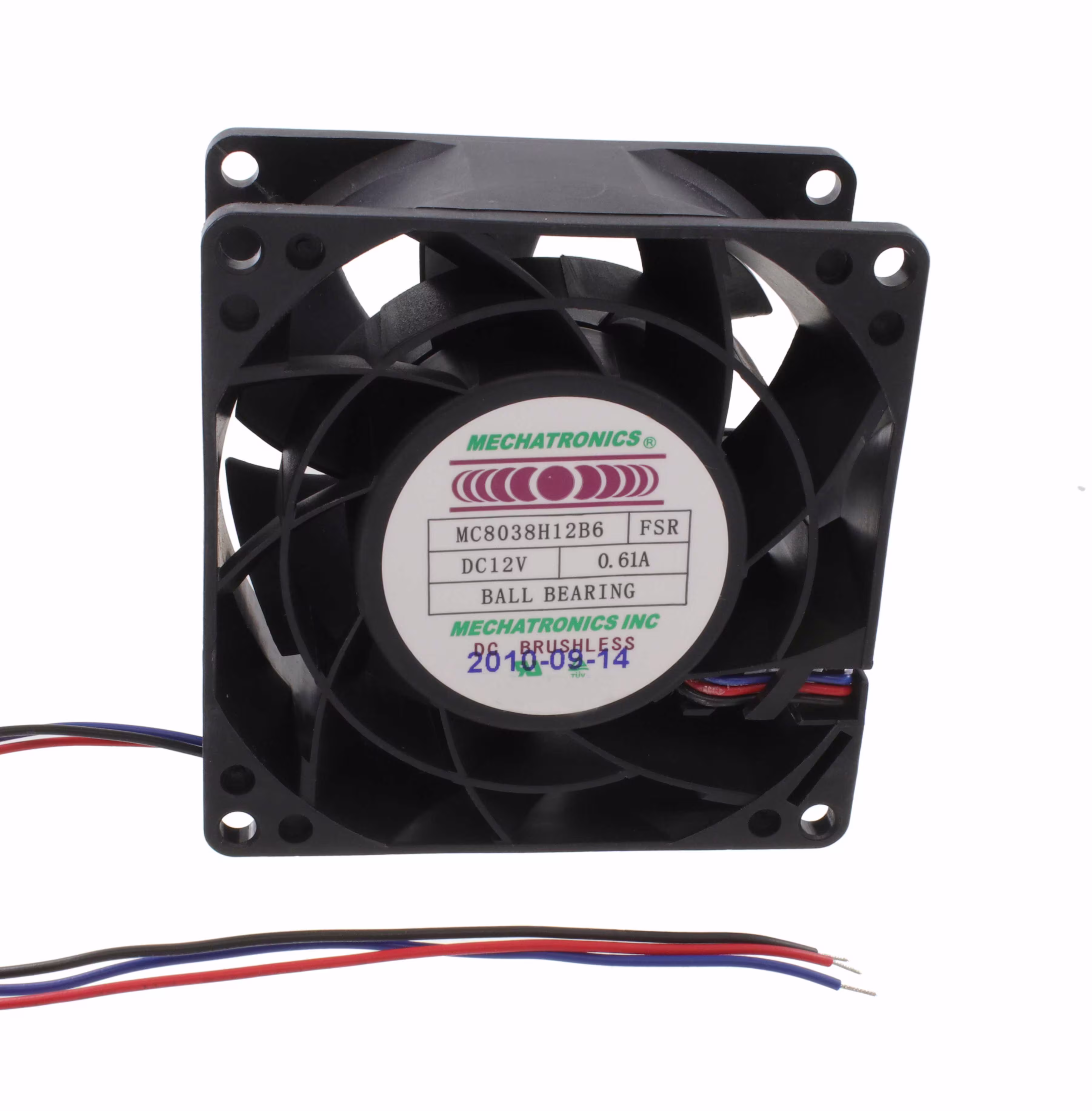

MC8038H12B6-FSR-PCFAN AXIAL 80X38MM 12VDC WIRE Mechatronics Fan Group |
4,218 |
|
Datasheet |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 69.9 CFM (1.96m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Parylene Coating, PWM Control, Thermal Overload Protector (TOP) | 48.2dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.397 lb (180.08 g) |
|
ME6038U24B-FSRFAN AXIAL 60X38MM 24VDC WIRE Mechatronics Fan Group |
4,169 |
|
Datasheet |
ME6038 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 61.1 CFM (1.71m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.23 lb (104.33 g) |
|
MC8038E12B-FSRFAN AXIAL 80X38MM 12VDC WIRE Mechatronics Fan Group |
1,416 |
|
Datasheet |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 81.5 CFM (2.28m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 52.1dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.397 lb (180.08 g) |
|
F6025X12B1-RHR-EMFAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
1,145 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
G4028M24B1-RSRFAN AXIAL 40X28MM 24VDC WIRE Mechatronics Fan Group |
1,407 |
|
Datasheet |
G4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 13.0 CFM (0.364m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 37.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
