DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MD1238X12B1+6-FSRFAN AXIAL 120X38MM 12VDC WIRE Mechatronics Fan Group |
2,317 |
|
Datasheet |
MD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 62.0dB(A) | - | 4500 RPM | 4 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|

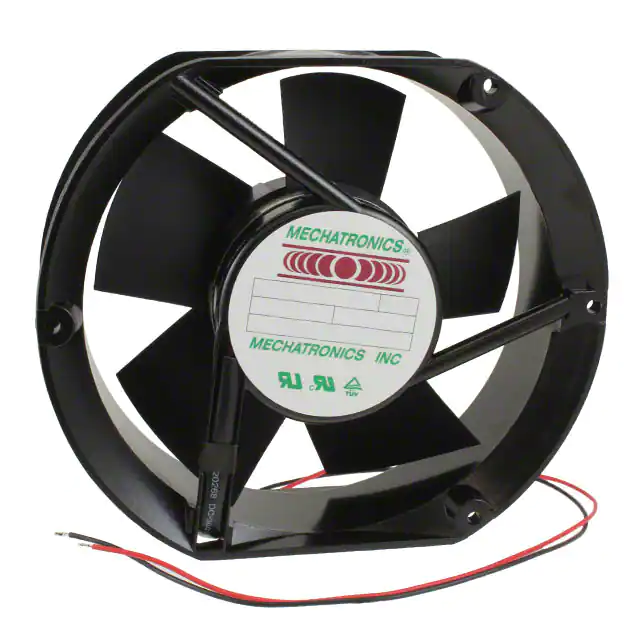

MA1751E12B-FSRFAN AXIAL 172X50.8MM 12VDC WIRE Mechatronics Fan Group |
4,001 |
|
Datasheet |
MA1751 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 269.2 CFM (7.54m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 61.0dB(A) | - | 3150 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
MSI1769H24B1+7-BBRFAN IMP MTRZD 175X69MM 24VDC Mechatronics Fan Group |
1,849 |
|
Datasheet |
MSI1769 | Box | Active | 24VDC | Round - 175mm Dia | 69.00mm | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 72.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
MSI2577H24B1+7-BBRFAN IMP MTRZD 250X77.3MM 24VDC Mechatronics Fan Group |
3,094 |
|
Datasheet |
MSI2577 | Box | Active | 24VDC | Round - 250mm Dia | 77.30mm | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 76.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 4.5 lbs (2 kg) |
|
MR8032H12B-FSRFAN AXIAL 80X32MM 12VDC WIRE Mechatronics Fan Group |
3,255 |
|
Datasheet |
MR8032 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 73.0 CFM (2.04m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Auto Restart | 48.6dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.32 lb (145.15 g) |
|

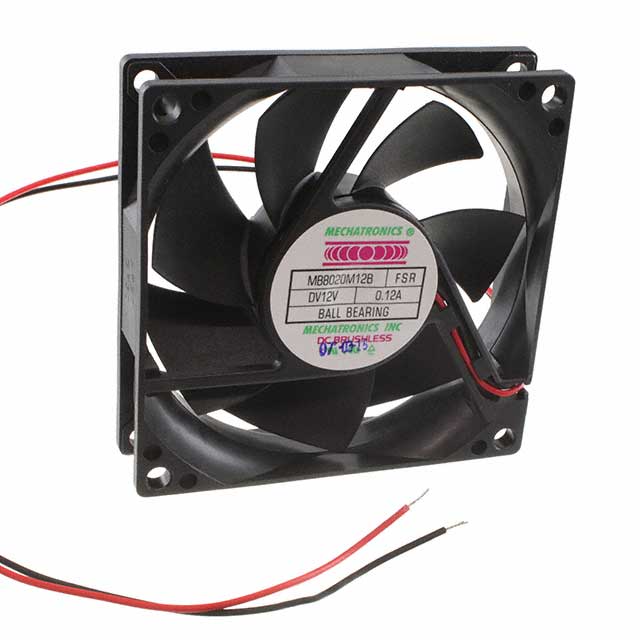

MB8020M12B-FSRFAN AXIAL 80X20MM 12VDC WIRE Mechatronics Fan Group |
2,391 |
|
Datasheet |
MB8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 26.9 CFM (0.753m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 29.0dB(A) | - | 2500 RPM | 2 Wire Leads | - | - | cUL, UL | 0.137 lb (62.14 g) |
|
MR4020L12B-RSRFAN AXIAL 40X20MM 12VDC WIRE Mechatronics Fan Group |
4,288 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.160 in H2O (40.0 Pa) | Ball | Tubeaxial | Auto Restart | 26.5dB(A) | - | 6500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
F6025L24B-FHRFAN AXIAL 60X25MM 24VDC WIRE Mechatronics Fan Group |
3,954 |
|
Datasheet |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 25.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
MR6025H12B-RSRFAN AXIAL 60X25.5MM 12VDC WIRE Mechatronics Fan Group |
1,475 |
|
Datasheet |
MR6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 31.7 CFM (0.888m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | - | 6500 RPM | 2 Wire Leads | - | - | - | - |
|
MB6010H12B1-RSRFAN AXIAL 60X10.2MM 12VDC WIRE Mechatronics Fan Group |
4,226 |
|
Datasheet |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.20mm | 13.5 CFM (0.378m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.0dB(A) | - | 3900 RPM | 3 Wire Leads | - | - | cUL, UL | 0.059 lb (26.76 g) |
