DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4010M24B-RSRFAN AXIAL 40X10.3MM 24VDC WIRE Mechatronics Fan Group |
3,030 |
|
Datasheet |
G4010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.30mm | 7.0 CFM (0.196m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
G6015X12B-RHRFAN AXIAL 60X15MM 12VDC WIRE Mechatronics Fan Group |
3,987 |
|
Datasheet |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 22.0 CFM (0.616m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | - | 5600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
MD6020L12B-FSRFAN AXIAL 60X20.2MM 12VDC WIRE Mechatronics Fan Group |
3,565 |
|
Datasheet |
MD6020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.20mm | 13.9 CFM (0.389m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 23.0dB(A) | - | 2700 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.094 lb (42.64 g) |
|

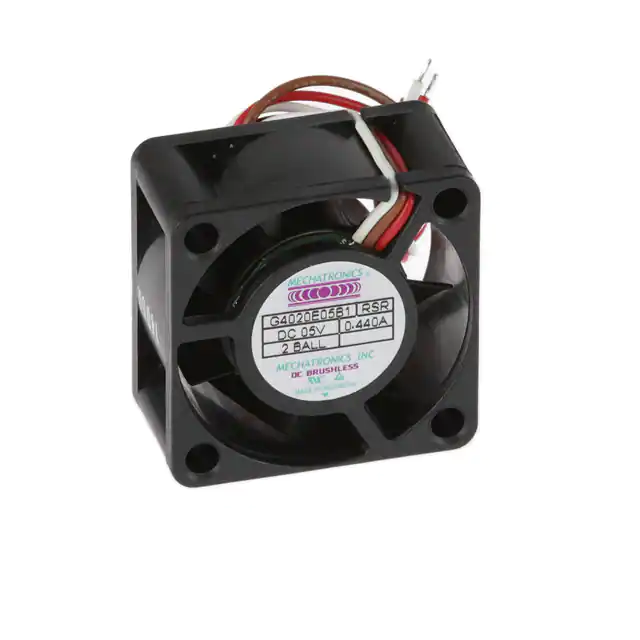

G4020E05B1-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE Mechatronics Fan Group |
3,543 |
|
Datasheet |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
G8015S24B-RGR-L15FAN AXIAL 80X15.3MM 24VDC WIRE Mechatronics Fan Group |
2,972 |
|
Datasheet |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.30mm | 26.0 CFM (0.728m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.128 lb (58.06 g) |
|

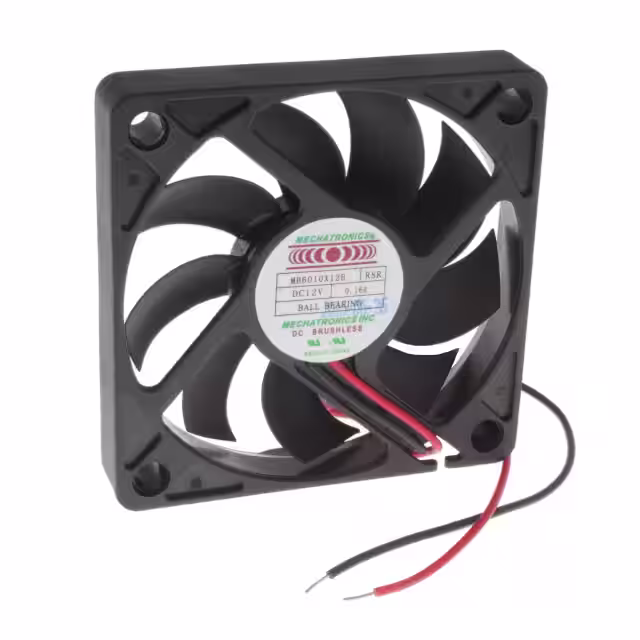

MB6010X12B-RSRFAN AXIAL 60X10.2MM 12VDC WIRE Mechatronics Fan Group |
1,128 |
|
Datasheet |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.20mm | 18.7 CFM (0.524m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5300 RPM | 2 Wire Leads | - | - | cUL, UL | 0.059 lb (26.76 g) |
|
|
G8015E24B1-RGR-TTLFAN AXIAL 80X15.3MM 24VDC WIRE Mechatronics Fan Group |
3,869 |
|
Datasheet |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.30mm | 40.0 CFM (1.12m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.0dB(A) | - | 4400 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.128 lb (58.06 g) |
|

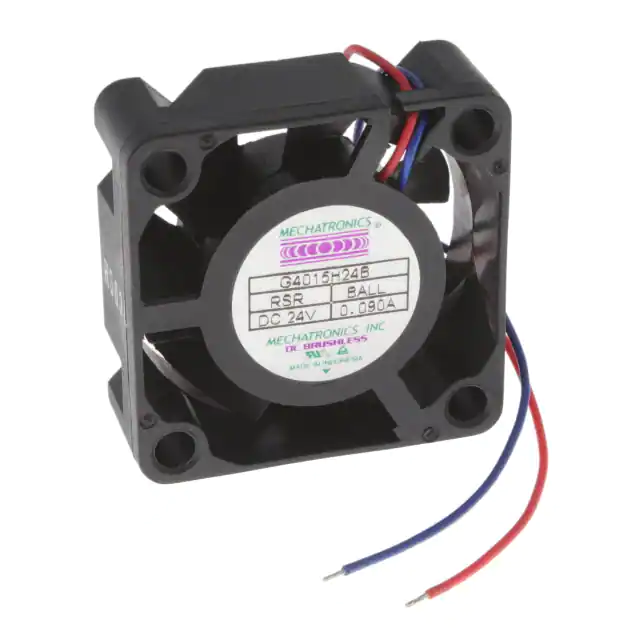

G4015H24B-RSRFAN AXIAL 40X15MM 24VDC WIRE Mechatronics Fan Group |
3,279 |
|
Datasheet |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 8.0 CFM (0.224m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|
|
G8015X24B1-RGR-L40FAN AXIAL 80X15.3MM 24VDC WIRE Mechatronics Fan Group |
1,148 |
|
Datasheet |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.30mm | 43.0 CFM (1.20m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 40.0dB(A) | - | 4800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.128 lb (58.06 g) |
|
B1232H12B-BSR-E-CC-IM4FAN BLOWER 120X32MM 12VDC WIRE Mechatronics Fan Group |
4,528 |
|
Datasheet |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.706 lb (320.24 g) |
