DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR1238M48B-FSRFAN AXIAL 120X38MM 48VDC WIRE Mechatronics Fan Group |
4,148 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart | 61.7dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238H48B-FSRFAN AXIAL 120X38MM 48VDC WIRE Mechatronics Fan Group |
1,864 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 235.0 CFM (6.58m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Auto Restart | 64.6dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
MS9238H48B-FHR-2EMFAN AXIAL 92X38MM 48VDC WIRE Mechatronics Fan Group |
2,797 |
|
Datasheet |
MS9238-H | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 166.7 CFM (4.67m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Auto Restart | 65.0dB(A) | - | 8000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.446 lb (202.3 g) |
|

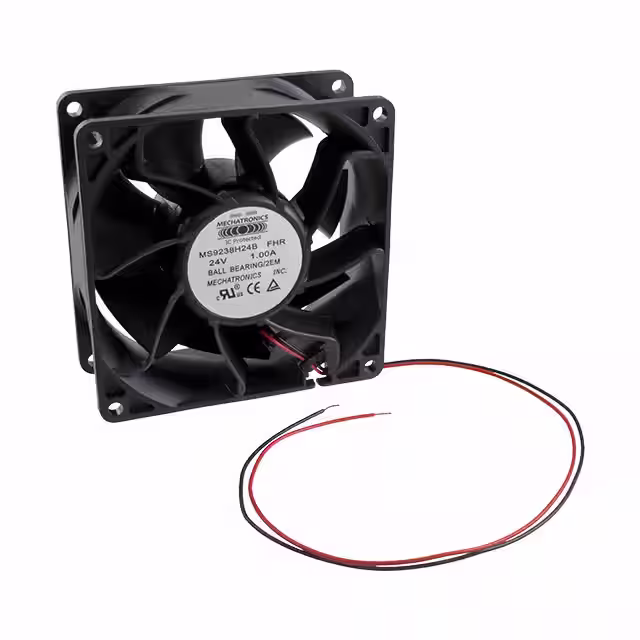

MS9238H24B-FHR-2EMFAN AXIAL 92X38MM 24VDC WIRE Mechatronics Fan Group |
1,371 |
|
Datasheet |
MS9238-H | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 166.7 CFM (4.67m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Auto Restart | 65.0dB(A) | - | 8000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.446 lb (202.3 g) |
|
MA1751E24B-FSRFAN AXIAL 172X50.8MM 24VDC WIRE Mechatronics Fan Group |
2,339 |
|
Datasheet |
MA1751 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 269.2 CFM (7.54m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 61.0dB(A) | - | 3150 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
MA1751X24B2-FSRFAN AXIAL 172X50.8MM 24VDC WIRE Mechatronics Fan Group |
3,712 |
|
Datasheet |
MA1751 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 290.6 CFM (8.14m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 63.0dB(A) | - | 3400 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
MSI1380H24B1+7-BBRFAN IMP MTRZD 133X80.5MM 24VDC Mechatronics Fan Group |
4,799 |
|
Datasheet |
MSI1380 | Box | Active | 24VDC | Round - 133mm Dia | 80.50mm | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 66.0dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 1.7 lbs (771.1 g) |
|

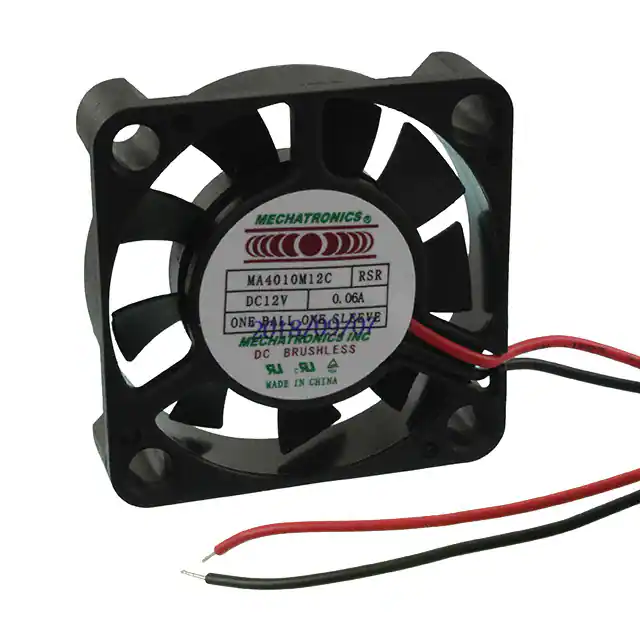

MA4010M12C-RSRFAN AXIAL 40X10MM 12VDC WIRE Mechatronics Fan Group |
1,954 |
|
Datasheet |
MA4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.080 in H2O (19.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 24.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.046 lb (20.87 g) |
|
|
MA4010H05C1-RSR-26AWGFAN AXIAL 40X10MM 5VDC WIRE Mechatronics Fan Group |
4,804 |
|
Datasheet |
MA4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | - | 6000 RPM | 3 Wire Leads | - | - | cUL, UL | 0.046 lb (20.87 g) |
|
E9225M24B-FSR-22AWGFAN AXIAL 92X25MM 24VDC WIRE Mechatronics Fan Group |
1,600 |
|
Datasheet |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 44.0 CFM (1.23m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
