DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR3010H05B1+6-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE Mechatronics Fan Group |
2,795 |
|
Datasheet |
MA3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.6dB(A) | - | 10000 RPM | 4 Wire Leads | - | - | - | - |
|
F1238M12B-FSRFAN AXIAL 119X38MM 12VDC WIRE Mechatronics Fan Group |
2,311 |
|
Datasheet |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 105.0 CFM (2.94m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.0dB(A) | - | 2300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
|
F1238S05B-FSRFAN AXIAL 119X38MM 5VDC WIRE Mechatronics Fan Group |
2,072 |
|
Datasheet |
F1238-S | Bulk | Active | 5VDC | Square - 119mm L x 119mm H | 38.00mm | 83.0 CFM (2.32m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 34.0dB(A) | - | 1800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
MS9225H24B-FSR-2EMFAN AXIAL 92X25MM 24VDC WIRE Mechatronics Fan Group |
1,957 |
|
Datasheet |
MS9225-S | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 73.6 CFM (2.06m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart | 49.0dB(A) | - | 4500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.225 lb (102.06 g) |
|
B1232H12B-BSRFAN BLOWER 120X32MM 12VDC WIRE Mechatronics Fan Group |
2,578 |
|
Datasheet |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.705 lb (319.78 g) |
|
|
B1232H24B-BSR-EFAN BLOWER 120X32MM 24VDC WIRE Mechatronics Fan Group |
3,111 |
|
Datasheet |
B1232 | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.706 lb (320.24 g) |
|
G1225H24B-FSR-EM-BLKFAN AXIAL 120X25MM 24VDC WIRE Mechatronics Fan Group |
3,395 |
|
Datasheet |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 87.0 CFM (2.44m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
|
B1232H24B-BSR-E-CC-IM4FAN BLOWER 120X32MM 24VDC WIRE Mechatronics Fan Group |
3,405 |
|
Datasheet |
B1232 | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.706 lb (320.24 g) |
|
|
MS1225H12B-FHR-2EMFAN AXIAL 120X25MM 12VDC WIRE Mechatronics Fan Group |
1,882 |
|
Datasheet |
MS1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 86.0 CFM (2.41m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 41.0dB(A) | - | 2600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.267 lb (121.11 g) |
|

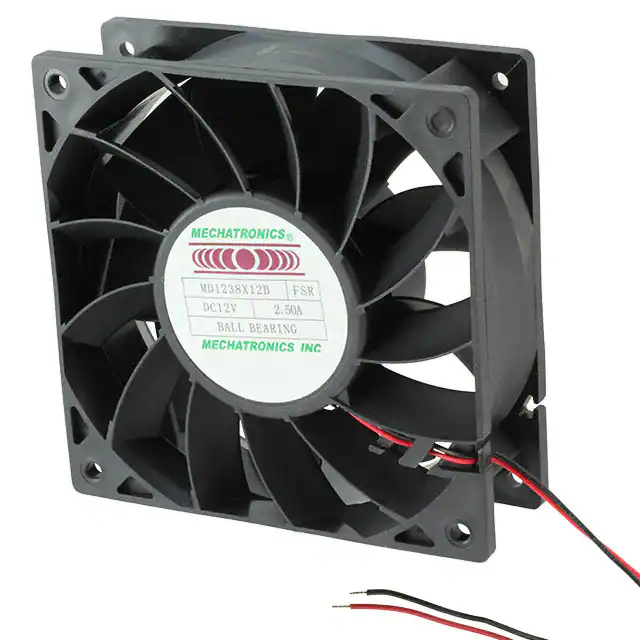

MD1238X12B-FSRFAN AXIAL 120X38MM 12VDC WIRE Mechatronics Fan Group |
1,982 |
|
Datasheet |
MD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 62.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
