DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6015H12B-RHRFAN AXIAL 60X15MM 12VDC WIRE Mechatronics Fan Group |
2,221 |
|
Datasheet |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | - | 4600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|

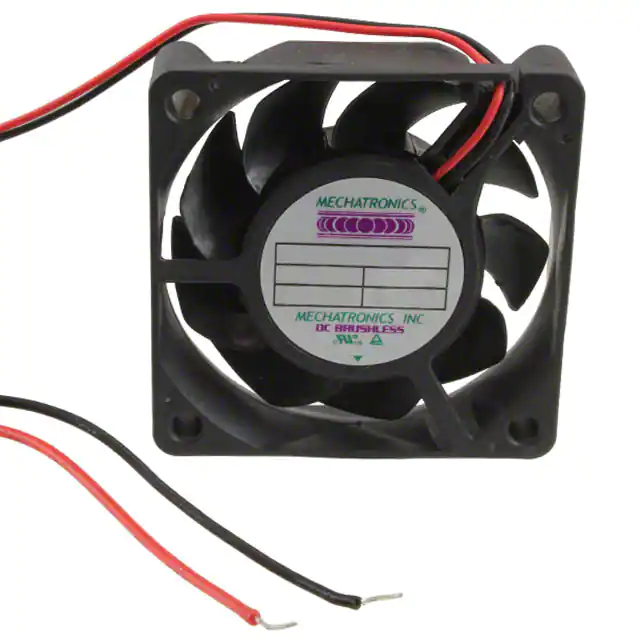

G6015L12B-RHRFAN AXIAL 60X15MM 12VDC WIRE Mechatronics Fan Group |
4,442 |
|
Datasheet |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.0 CFM (0.392m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | - | 3400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
MR4020X12B1-RSRFAN AXIAL 40X20MM 12VDC WIRE Mechatronics Fan Group |
2,939 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 17.3 CFM (0.484m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.0dB(A) | - | 12000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|

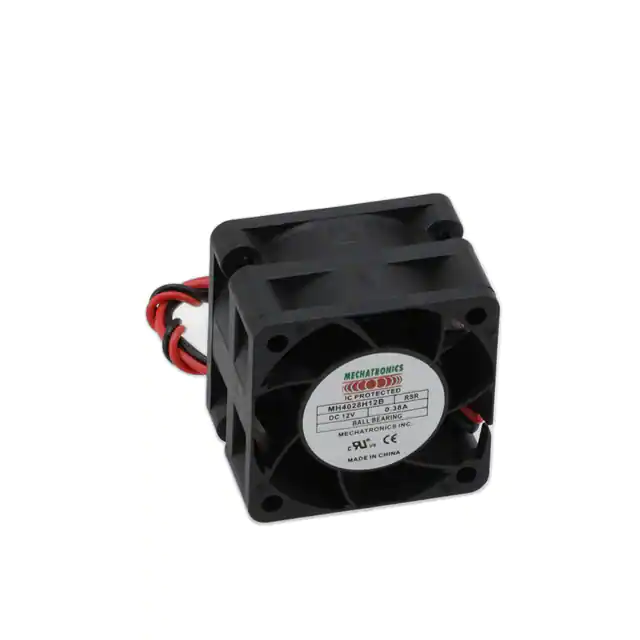

MH4028H12B-RSRFAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
4,178 |
|
Datasheet |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 21.1 CFM (0.591m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Tubeaxial | Auto Restart, Thermal Overload Protector (TOP) | 52.0dB(A) | - | 13000 RPM | 2 Wire Leads | - | - | - | 0.089 lb (40.37 g) |
|
F8025H12B-FHR-CC-22AWGFAN AXIAL 80X25MM 12VDC WIRE Mechatronics Fan Group |
4,178 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
MA3828S12B1-RSRFAN AXIAL 38X28MM 12VDC WIRE Mechatronics Fan Group |
4,631 |
|
Datasheet |
MA3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 6.2 CFM (0.174m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 30.8dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | cUL, UL | 0.078 lb (35.38 g) |
|

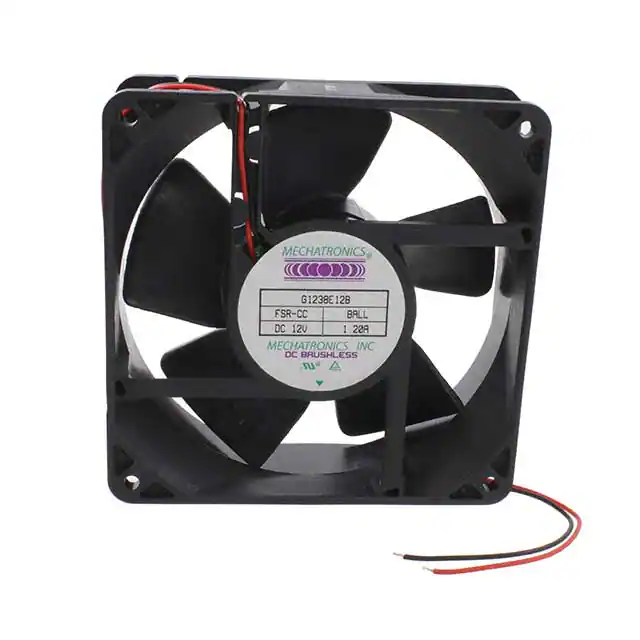

G1238E12B-FSR-CCFAN AXIAL 120X38MM 12VDC WIRE Mechatronics Fan Group |
1,946 |
|
Datasheet |
G1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|

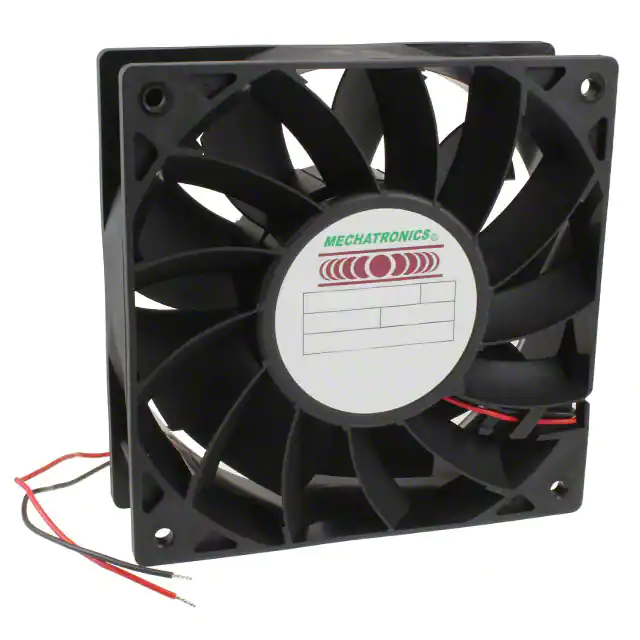

MD1238H12B-FSRFAN AXIAL 120X38MM 12VDC WIRE Mechatronics Fan Group |
4,843 |
|
Datasheet |
MD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 174.0 CFM (4.87m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 57.8dB(A) | - | 3800 RPM | 2 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|
G9232X12B-FSRFAN AXIAL 92X32MM 12VDC WIRE Mechatronics Fan Group |
2,441 |
|
Datasheet |
G9232 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 68.0 CFM (1.90m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
F8025L12B-FSR-EMFAN AXIAL 80X25MM 12VDC WIRE Mechatronics Fan Group |
3,750 |
|
Datasheet |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 22.0dB(A) | - | 1800 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
