DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F8025E24B3-FSRFAN AXIAL 80X25MM 24VDC WIRE Mechatronics Fan Group |
2,906 |
|
Datasheet |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 46.0 CFM (1.29m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 32.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
|
F8025E24B3-FHRFAN AXIAL 80X25MM 24VDC WIRE Mechatronics Fan Group |
2,289 |
|
Datasheet |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 35.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|

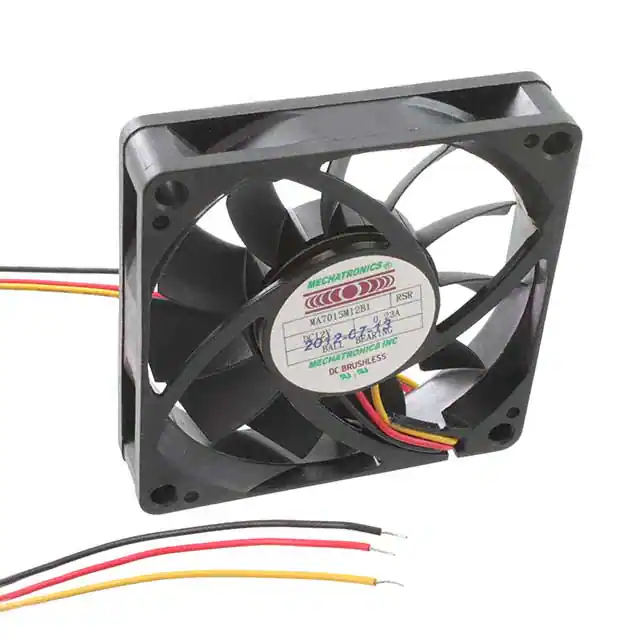

MA7015M12B1-RSRFAN 70X15MM BALL 12VDC WIRE Mechatronics Fan Group |
4,298 |
|
Datasheet |
MA7015 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | - | - | Ball | - | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cUL, UL | - |
|
G6015E24B-RHR-EMFAN AXIAL 60X15MM 24VDC WIRE Mechatronics Fan Group |
3,776 |
|
Datasheet |
G6015-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | - | 5200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
MD4028V12B-RSR-CCFAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
4,757 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.3 CFM (0.680m³/min) | 1.206 in H2O (300.4 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 53.1dB(A) | - | 15000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
G9232M24B-FSRFAN AXIAL 92X32MM 24VDC WIRE Mechatronics Fan Group |
4,756 |
|
Datasheet |
G9232 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 48.0 CFM (1.34m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|

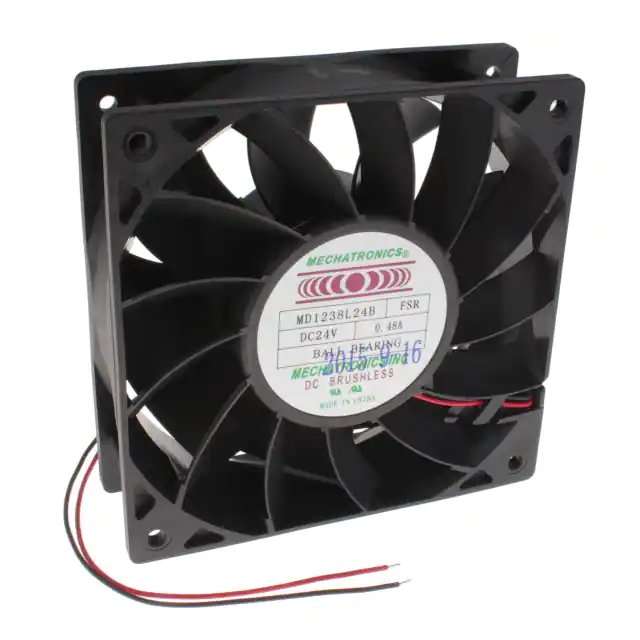

MD1238L24B-FSRFAN AXIAL 120X38MM 24VDC WIRE Mechatronics Fan Group |
3,806 |
|
Datasheet |
MD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 52.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|
|
F8025H12B-FHR-EMFAN AXIAL 80X25MM 12VDC WIRE Mechatronics Fan Group |
4,984 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 3200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
G6015X24B1+6-RHR-WSFAN AXIAL 60X15.3MM 24VDC WIRE Mechatronics Fan Group |
3,595 |
|
Datasheet |
G6015-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.30mm | 22.0 CFM (0.616m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | - | 5800 RPM | 5 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
G6015M24B-RHR-EMFAN AXIAL 60X15MM 24VDC WIRE Mechatronics Fan Group |
4,574 |
|
Datasheet |
G6015-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 16.0 CFM (0.448m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | - | 4000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
