DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

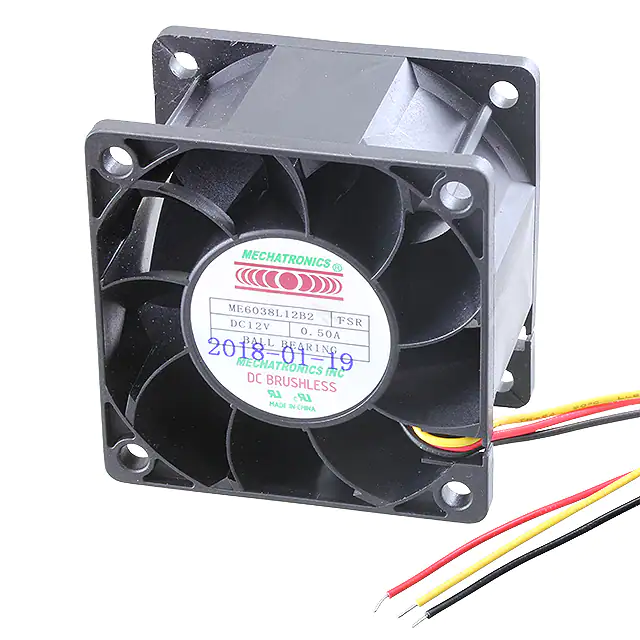

ME6038L12B2-FSRFAN AXIAL 60X38MM 12VDC WIRE Mechatronics Fan Group |
102 |
|
Datasheet |
ME6038 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 35.5 CFM (0.994m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 48.5dB(A) | - | 6000 RPM | 3 Wire Leads | - | - | cUL, UL | 0.23 lb (104.33 g) |
|
MR8038H24B-RSRFAN AXIAL 80X38MM 24VDC WIRE Mechatronics Fan Group |
117 |
|
Datasheet |
MR8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 88.6 CFM (2.48m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | - | 7000 RPM | 2 Wire Leads | - | - | - | - |
|

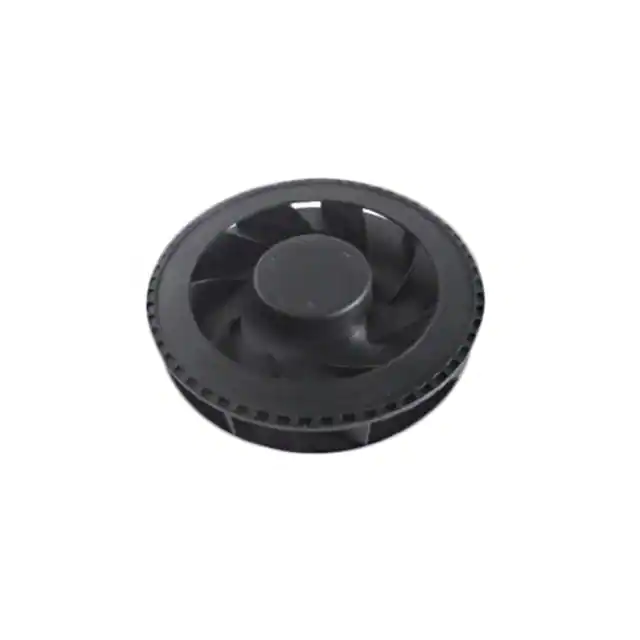

MSI1225H24B-BBRFAN IMP MTRZD 120X25.8MM 24VDC Mechatronics Fan Group |
128 |
|
Datasheet |
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | 25.80mm | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Motorized Impellers | Auto Restart | 54.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.356 lb (161.48 g) |
|
G4020L12B-RSRFAN AXIAL 40X20MM 12VDC WIRE Mechatronics Fan Group |
298 |
|
Datasheet |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 23.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|

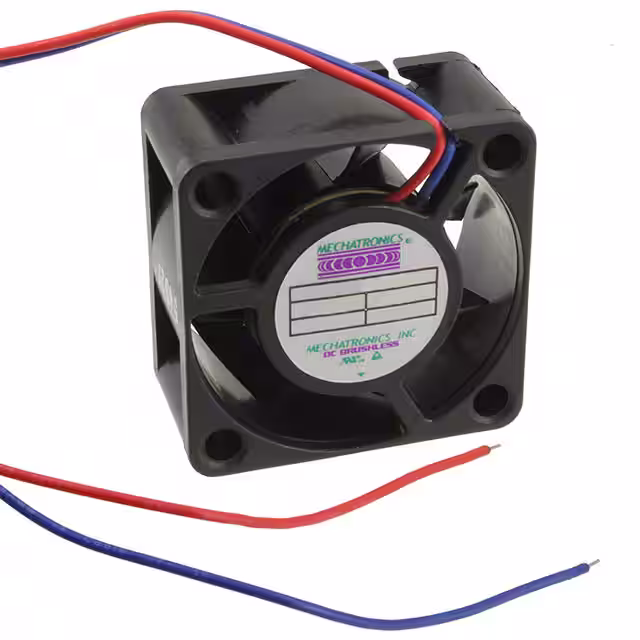

G4020M05B2-RSR-WSFAN AXIAL 40X20MM BALL 5VDC WIRE Mechatronics Fan Group |
590 |
|
Datasheet |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 26.0dB(A) | - | 6000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
F6025X12B1-RHRFAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
165 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
G1238M12B1+6-FSR-WSFAN AXIAL 119X38MM 12VDC WIRE Mechatronics Fan Group |
243 |
|
Datasheet |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 43.0dB(A) | - | 2800 RPM | 5 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
MA2506H05C-RSRFAN AXIAL 25X6.1MM 5VDC WIRE Mechatronics Fan Group |
1,440 |
|
Datasheet |
MA2506 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 6.10mm | 2.1 CFM (0.059m³/min) | 0.130 in H2O (32.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | 25.5dB(A) | - | 10500 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.018 lb (8.16 g) |
|

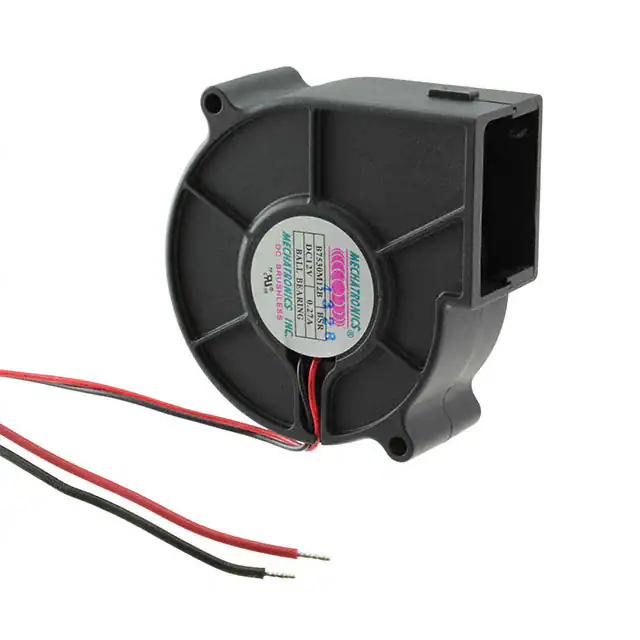

B7530M12B-BSRFAN BLOWER 76X30MM 12VDC WIRE Mechatronics Fan Group |
3,696 |
|
Datasheet |
B7530 | Bulk | Active | 12VDC | Square/Rounded - 76mm L x 76mm H | 30.00mm | 10.6 CFM (0.297m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, UL | 0.192 lb (87.08 g) |
|
MR9238H48B-FSRFAN AXIAL 92X38MM 48VDC WIRE Mechatronics Fan Group |
100 |
|
Datasheet |
MR9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 152.0 CFM (4.26m³/min) | 1.182 in H2O (294.4 Pa) | Ball | Tubeaxial | Auto Restart | 58.8dB(A) | - | 7000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
