DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR8032E12B1+6-FSRFAN AXIAL 80X32MM 12VDC WIRE Mechatronics Fan Group |
105 |
|
Datasheet |
MR8032 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 79.0 CFM (2.21m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.4dB(A) | - | 6500 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.32 lb (145.15 g) |
|

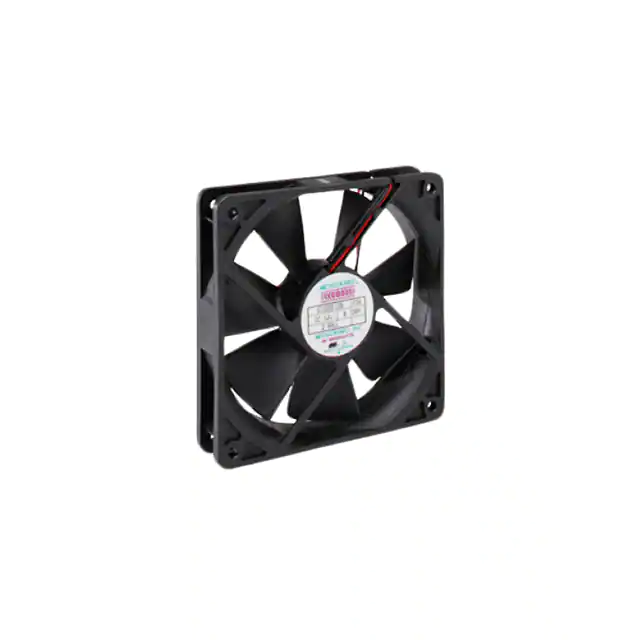

G1225H12B4-FSRFAN AXIAL 120X25MM 12VDC WIRE Mechatronics Fan Group |
249 |
|
Datasheet |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 87.0 CFM (2.44m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 38.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
MD9238E12B-FSR-CCFAN AXIAL 92X38MM 12VDC WIRE Mechatronics Fan Group |
138 |
|
Datasheet |
MD9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 55.0dB(A) | - | 4800 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
|

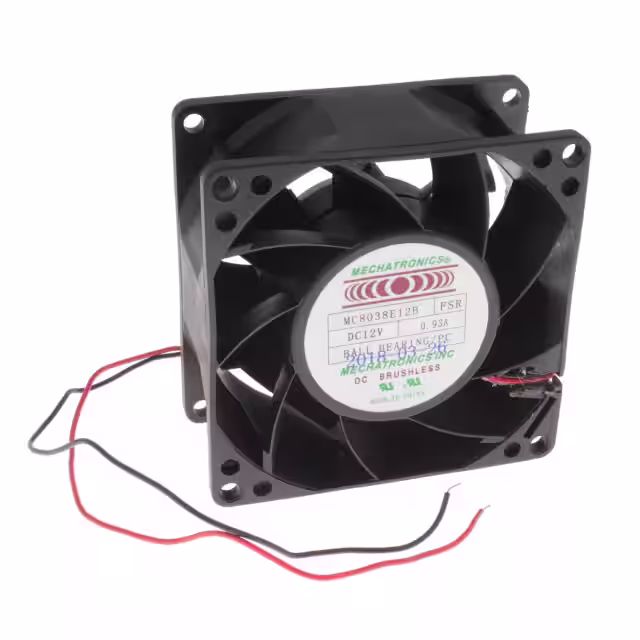

MC8038E12B-FSR-PCFAN AXIAL 80X38MM 12VDC WIRE Mechatronics Fan Group |
386 |
|
Datasheet |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 81.5 CFM (2.28m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Parylene Coating, Thermal Overload Protector (TOP) | 52.1dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.397 lb (180.08 g) |
|
ME6038X12B1+6-FSRFAN AXIAL 60X38MM 12VDC WIRE Mechatronics Fan Group |
116 |
|
Datasheet |
ME6038 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 57.5 CFM (1.61m³/min) | 1.241 in H2O (309.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 63.0dB(A) | - | 9400 RPM | 4 Wire Leads | - | - | cUL, UL | 0.23 lb (104.33 g) |
|
MA3010H05C-RSRFAN AXIAL 30X10MM 5VDC WIRE Mechatronics Fan Group |
650 |
|
Datasheet |
MA3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.150 in H2O (37.3 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 9000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.018 lb (8.16 g) |
|
MS8038H24B1+6-FHRFAN AXIAL 80X38MM 24VDC WIRE Mechatronics Fan Group |
101 |
|
Datasheet |
MS8038-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 77.0dB(A) | - | 10000 RPM | 4 Wire Leads | - | - | - | 0.391 lb (177.35 g) |
|
MR9238E12B1+6-FSRFAN AXIAL 92X38MM 12VDC WIRE Mechatronics Fan Group |
146 |
|
Datasheet |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 63.3dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
MQ8038E12B1+6-FSRFAN AXIAL 80X38MM 12VDC WIRE Mechatronics Fan Group |
171 |
|
Datasheet |
MQ8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 123.3 CFM (3.45m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 67.0dB(A) | - | 9000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.397 lb (180.08 g) |
|
MQ1238H12B-FSRFAN AXIAL 120X38MM 12VDC WIRE Mechatronics Fan Group |
215 |
|
Datasheet |
MQ1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.772 lb (350.17 g) |
