DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR1225M24B-FSRFAN AXIAL 120X25MM 24VDC WIRE Mechatronics Fan Group |
135 |
|
Datasheet |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 122.1 CFM (3.42m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Auto Restart | 50.5dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
E1225E12B1-FSRFAN AXIAL 120X25MM 12VDC WIRE Mechatronics Fan Group |
165 |
|
Datasheet |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
MD4028V12B1+6-FSRFAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
251 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.3 CFM (0.680m³/min) | 1.206 in H2O (300.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 53.1dB(A) | - | 15000 RPM | 4 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|

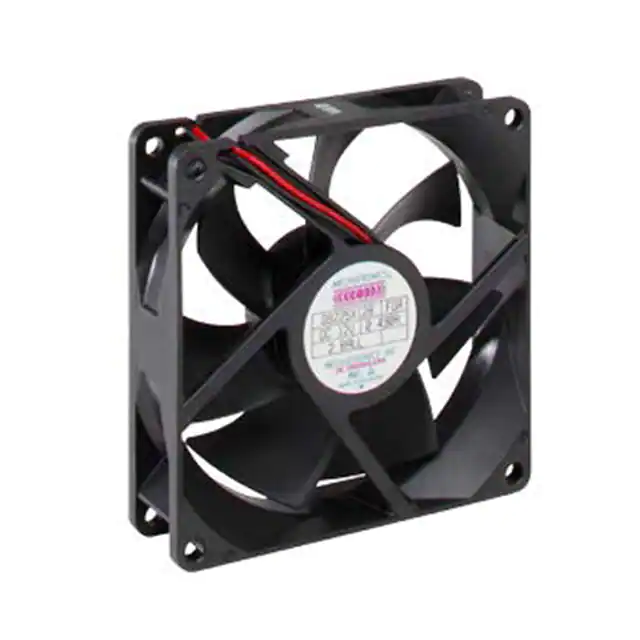

G9225X24B6-FSR-L20FAN AXIAL 92X25MM 24VDC WIRE Mechatronics Fan Group |
107 |
|
Datasheet |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 66.0 CFM (1.85m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 42.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.218 lb (98.88 g) |
|
|
G6015X24B1-RGR-CC-GBFAN AXIAL 60X15.3MM 24VDC WIRE Mechatronics Fan Group |
188 |
|
Datasheet |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.30mm | 24.0 CFM (0.672m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.059 lb (26.76 g) |
|
|
G1238E12B1+6-FSR-WSFAN AXIAL 119X38MM 12VDC WIRE Mechatronics Fan Group |
133 |
|
Datasheet |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 5 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|

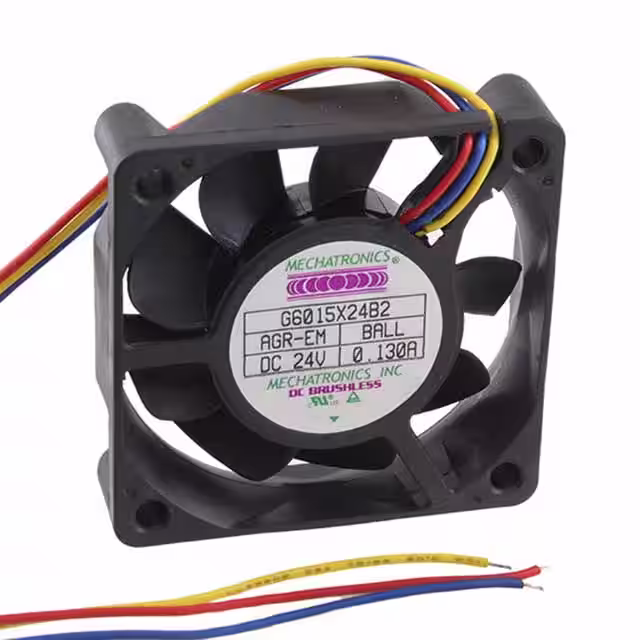

G6015X24B2-AGR-EMFAN AXIAL 60X15.3MM 24VDC WIRE Mechatronics Fan Group |
131 |
|
Datasheet |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.30mm | 24.0 CFM (0.672m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5800 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.059 lb (26.76 g) |
|
MR9238E48B1+6-FSRFAN AXIAL 92X38MM 48VDC WIRE Mechatronics Fan Group |
147 |
|
Datasheet |
MR9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 63.3dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
MR9225E24B1+6-FSRFAN AXIAL 92X25MM 24VDC WIRE Mechatronics Fan Group |
313 |
|
Datasheet |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 99.0 CFM (2.77m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.8dB(A) | - | 4400 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|

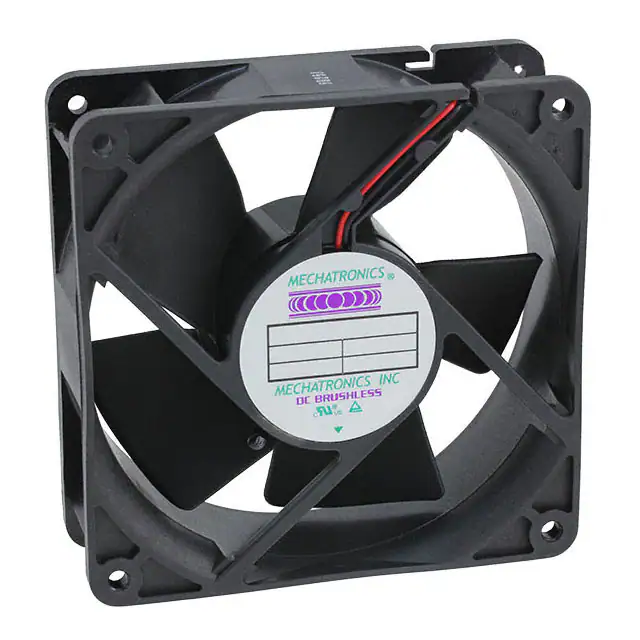

F1238X24B1-FSR-L30FAN AXIAL 119X38MM 24VDC WIRE Mechatronics Fan Group |
150 |
|
Datasheet |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | - | 3100 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
